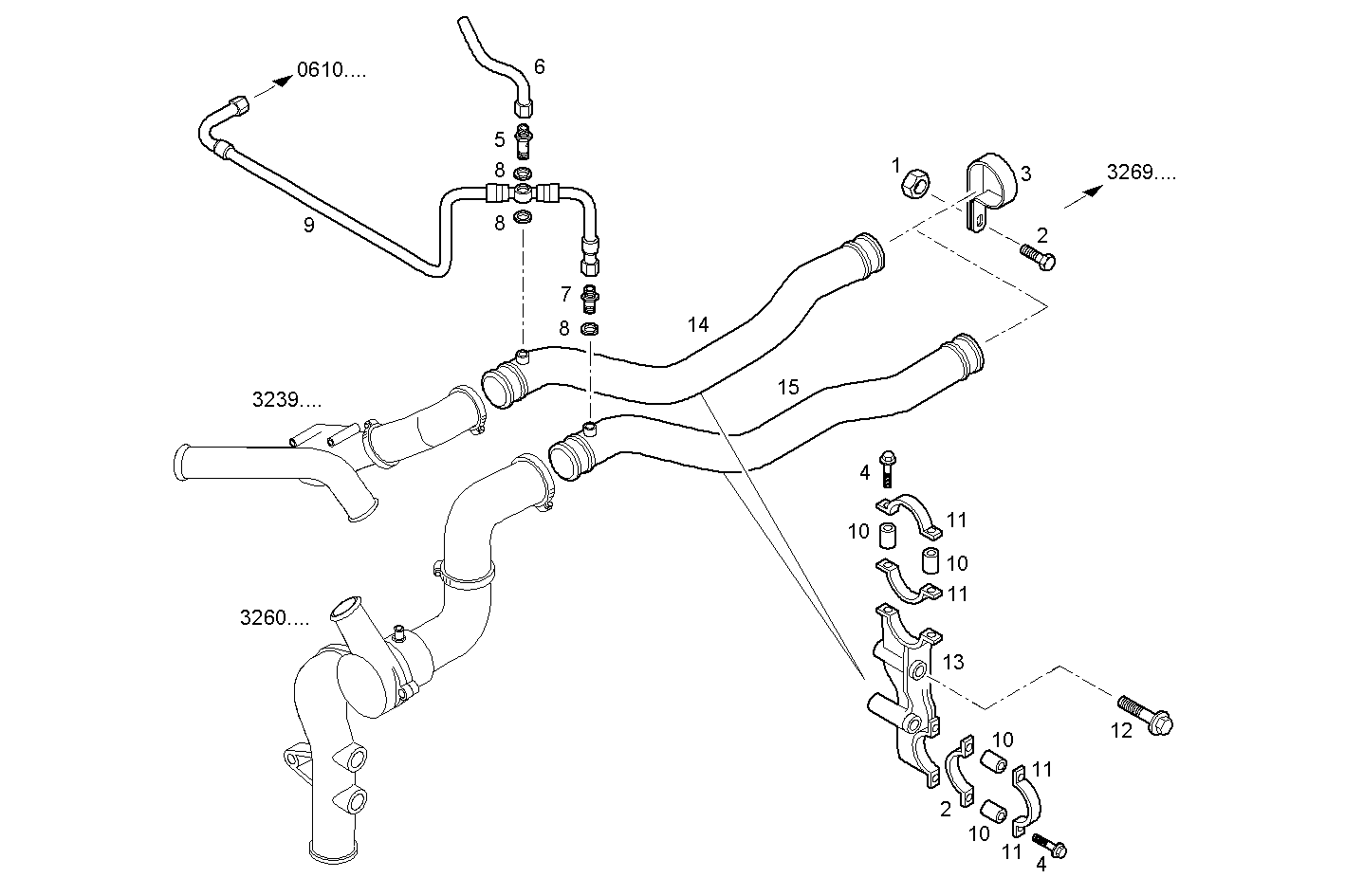

UNIT PRESURIZATION LINE
Assembly ID: 3269.001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16750225 | HEXAGON NUT | 2 | ||
| 2 | 16673735 | HEXAGON BOLT | 2 | ||
| 3 | 41288046 | PIPE CLIP | 2 | ||
| 4 | 16586925 | HEXAGON BOLT | 4 | ||
| 5 | 60188370 | SCREW CONNECTOR | 1 | ||
| 6 | 500360367 | RUBBER HOSE | 1 | ||
| 7 | 500357765 | PIPE SOCKET | 1 | ||
| 8 | 98474306 | WASHER | 3 | ||
| 9 | 500357768 | RUBBER HOSE | 1 | ||
| 10 | 500347643 | SPACING BAR | 4 | ||
| 11 | 500360364 | FASTENING BRACKET | 4 | ||
| 12 | 16593025 | HEXAGON BOLT | 2 | ||
| 13 | 500333974 | FASTENING BRACKET | 1 | ||
| 14 | 500360341 | WATER PIPE | 1 | ||
| 15 | 500333955 | WATER PIPE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C87ENTX20.00A003 | CURSOR 9 - TIER 3 | view |
