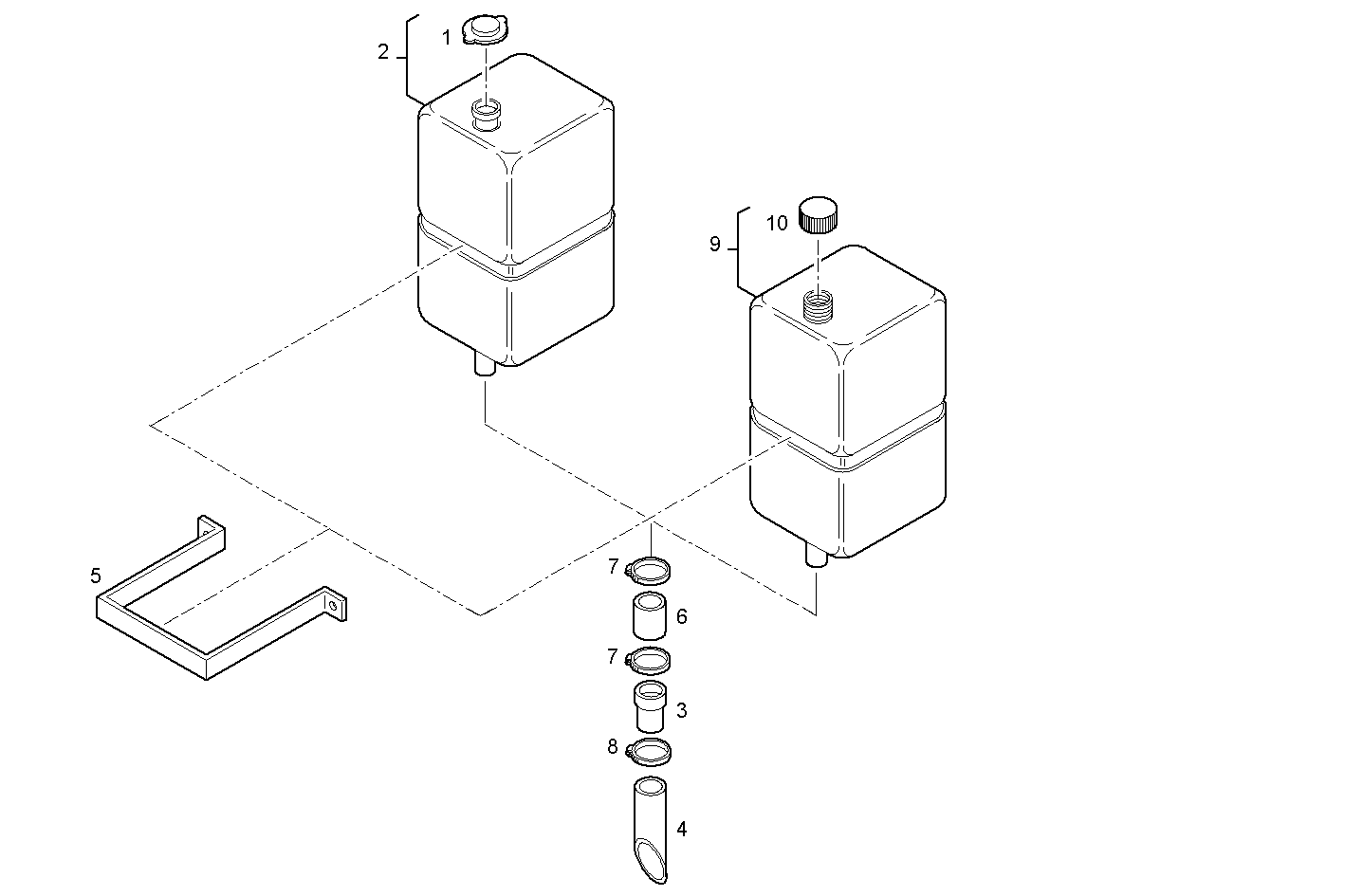

EXPANSION TANK
Assembly ID: 3290.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4274033 | PLUG | 1 | ||
| 2 | 4652427 | WATER EXPANSION TANK | 1 | ||
| 3 | 4933230 | PIPE SOCKET | 1 | ||
| 4 | 4933239 | WATER HOSE | 1 | ||
| 5 | 4933297 | RETAINER | 1 | ||
| 6 | 12076887 | RUBBER SLEEVE | 1 | ||
| 7 | 17764593 | CLIP | 2 | ||
| 8 | 17764393 | CLIP | 2 | ||
| 9 | 8052875 | WATER EXPANSION TANK | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8281M32.10 | 8281M32 | view |
