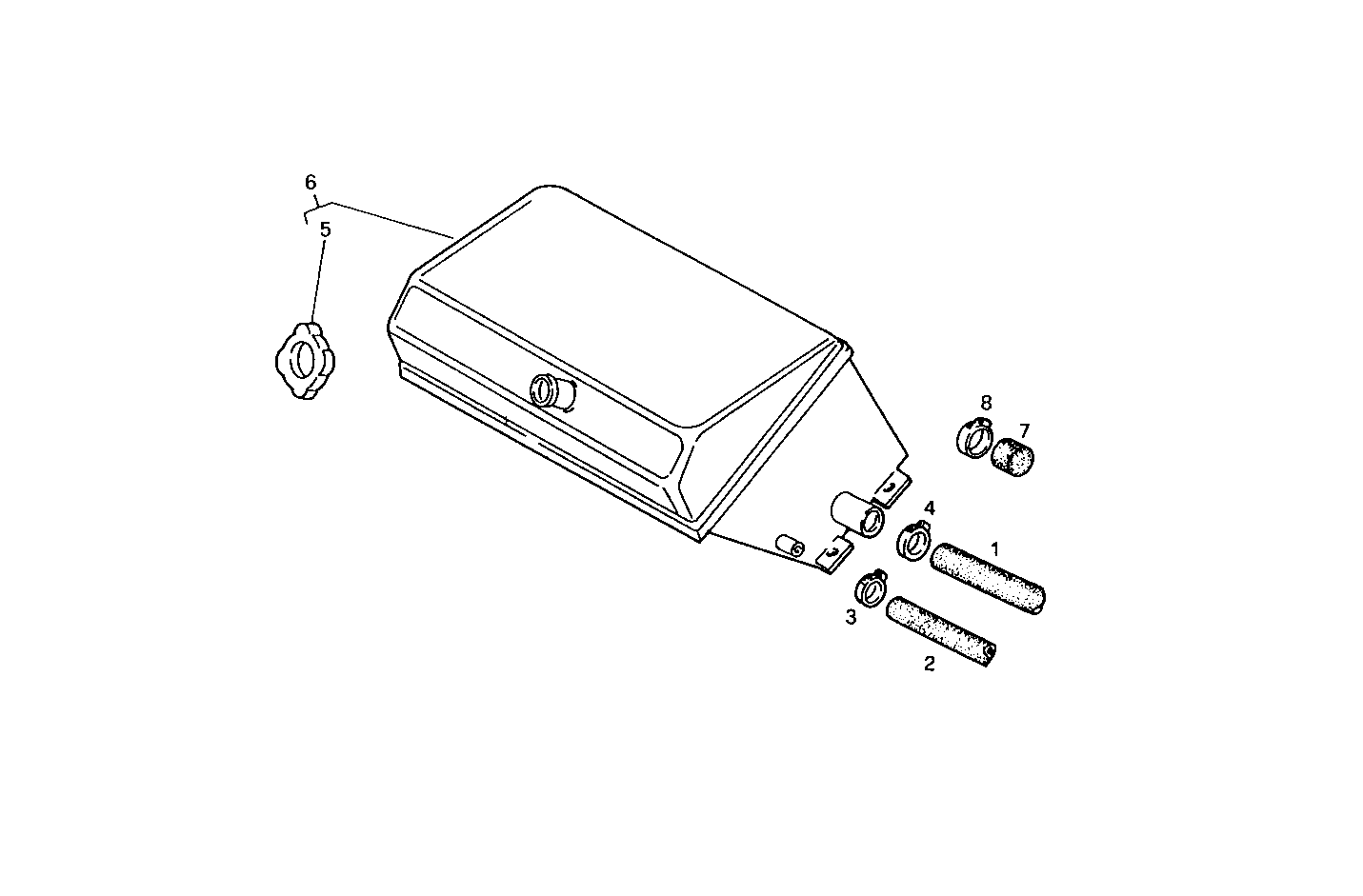

EXPANSION TANK
Assembly ID: 3290.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8110633 | WATER HOSE | 1 | ||
| 2 | 8113815 | WATER HOSE | 1 | ||
| 3 | 12179690 | CLIP | 2 | ||
| 4 | 17764592 | CLIP | 2 | ||
| 5 | 4845412 | PLUG | 1 | ||
| 6 | 93902289 | EXPANSION TANK | 1 | ||
| 7 | 8113817 | PLUG | 1 | ||
| 8 | 12176790 | CLIP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM24.00 | 8061SRM24 | view |
