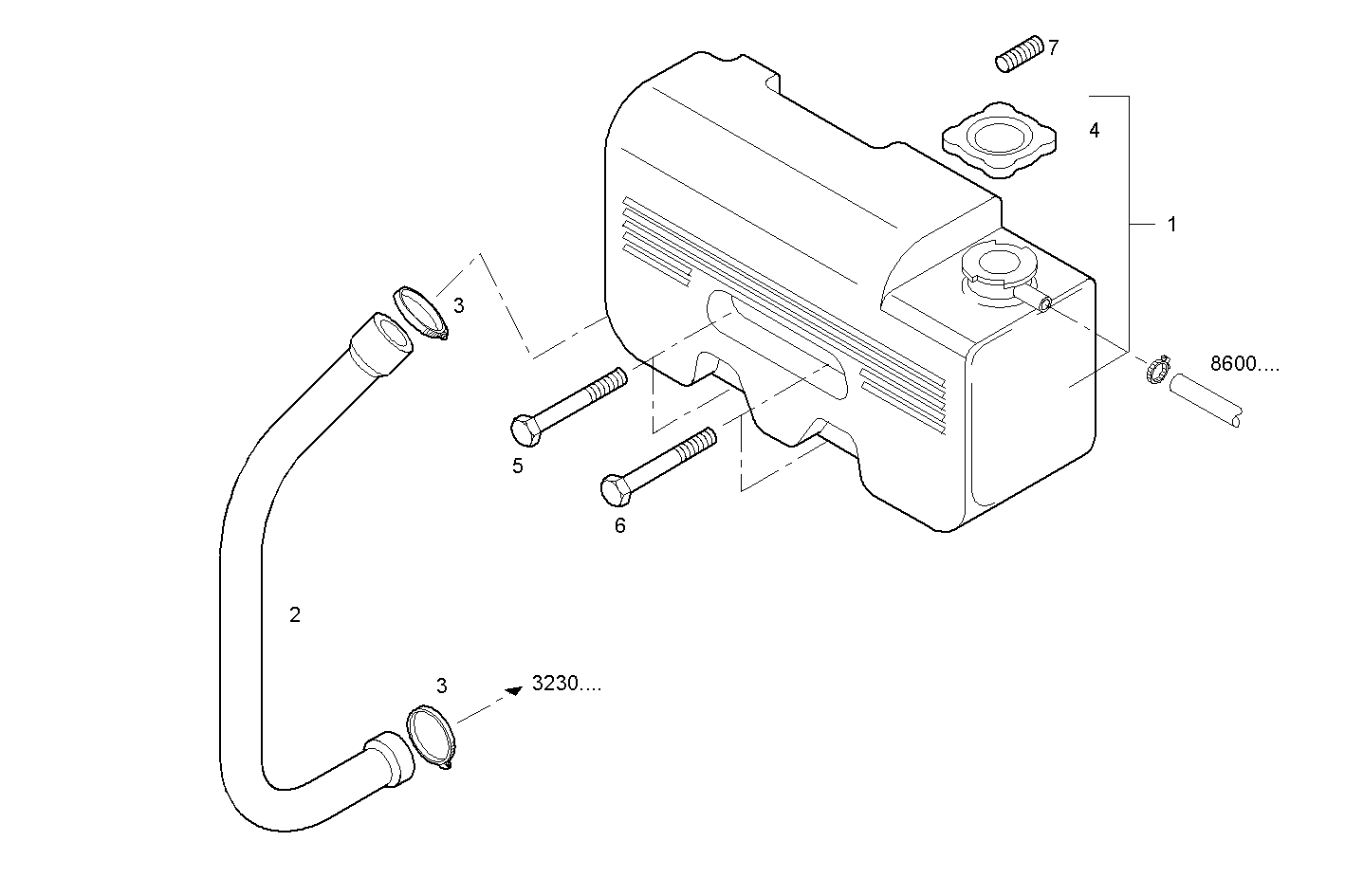

EXPANSION TANK
Assembly ID: 3290.021
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8038087 | WATER EXPANSION TANK | 1 | ||
| 2 | 8031812 | RUBBER SLEEVE | 1 | ||
| 3 | 18088593 | CLIP | 2 | ||
| 4 | 8036572 | PLUG | 1 | ||
| 5 | 16598524 | SCREW | 2 | ||
| 6 | 16598324 | HEXAGON BOLT | 2 | ||
| 7 | 4742340 | PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNAM15.30 | NEF 6 mechanic. | view |
| N67MNTM28.30 | NEF 6 mechanic. | view |
| N67MNAM15.31 | NEF 6 mechanic. | view |
| N67MNTM28.31 | NEF 6 mechanic. | view |
| N67MNAM15.32 | NEF 6 mechanic. | view |
| N67ENTM56.10 | NEF 6 electron. | view |
