| 1 |
8014064
|

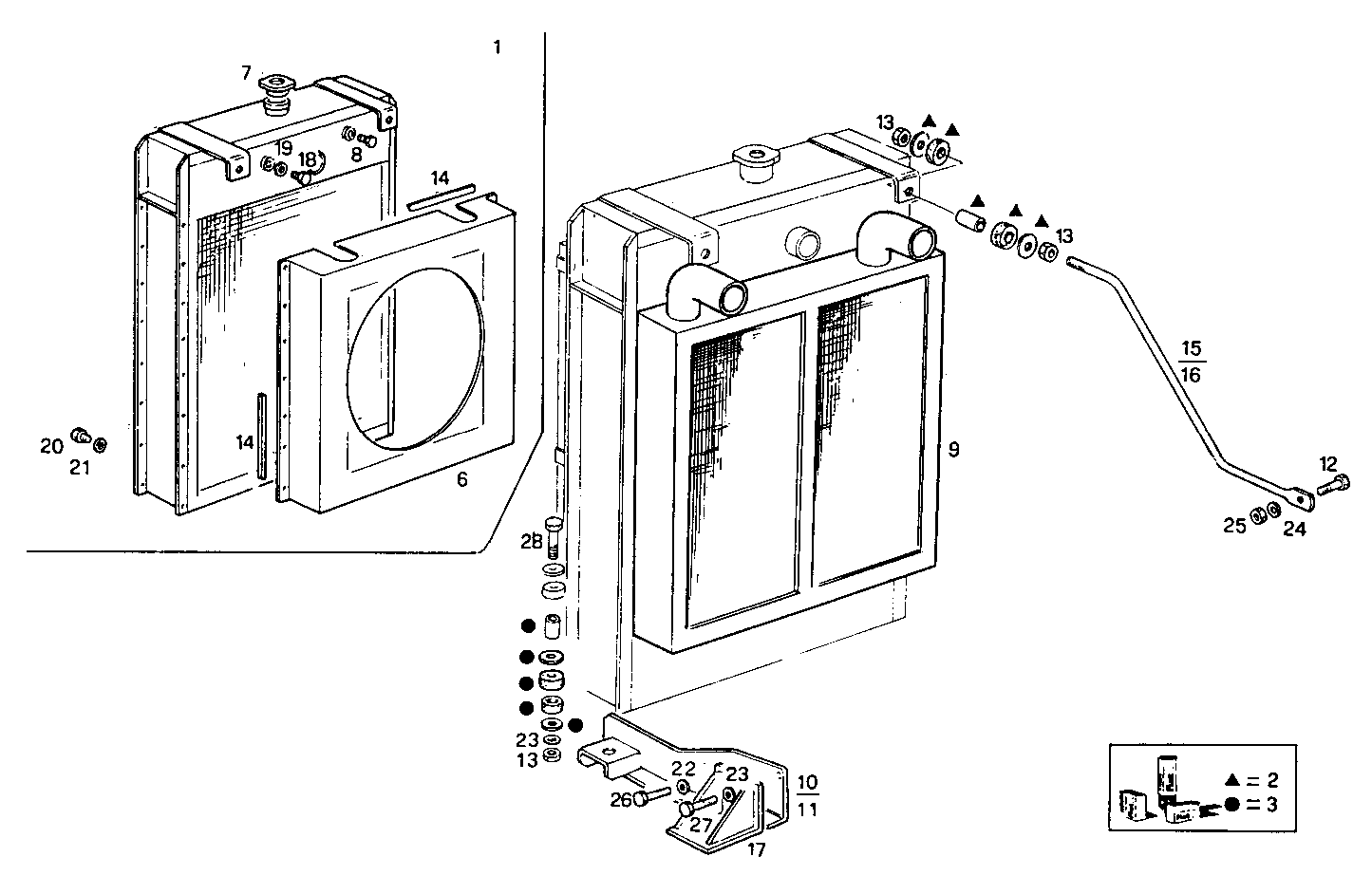

WATER RADIATOR
|
|
1
|
|
| 2 |
8090413
|
KIT-RADIATOR
|
|
1
|
|
| 3 |
8090412
|
KIT-RADIATOR
|
|
1
|
|
| 6 |
8107672
|
AIR HOOD
|
|
1
|
|
| 7 |
8107632
|
RADIATOR PLUG
|
|
1
|
|
| 8 |
8105096
|
PLUG
|
|
1
|
|
| 9 |
8107525
|
AIR/AIR INTERCOOLER
|
|
1
|
|
| 10 |
8107526
|
RETAINER
|
|
1
|
|
| 11 |
8107527
|
RETAINER
|
|
1
|
|
| 12 |
15970521
|
HEXAGON BOLT
|
|
2
|
|
|
15970524 |
HEXAGON BOLT |
|
2 |
|
| 13 |
16101511
|
HEXAGON NUT
|
|
6
|
|
|
17038631 |
HEXAGON NUT |
|
6 |
|
| 14 |
4927928
|
FELT
|
|
1
|
|
| 15 |
8107975
|
TIE ROD
|
|
1
|
|
| 16 |
8107976
|
TIE ROD
|
|
1
|
|
| 17 |
4934332
|
SUPPORT
|
|
2
|
|
| 18 |
16992211
|
THREADED PLUG
|
|
1
|
|
| 19 |
4858607
|
WASHER
|
|
1
|
|
| 20 |
16992340
|
THREADED PLUG
|
|
1
|
|
| 21 |
4858608
|
SEAL GASKET
|
|
1
|
|
| 22 |
11194271
|
WASHER
|
|
4
|
|
|
17092174 |
WASHER |
|
4 |
|
| 23 |
17091174
|
SPRING WASHER
|
|
2
|
|
| 24 |
17090274
|
WASHER
|
|
4
|
|
| 25 |
17038221
|
HEXAGON NUT
|
|
2
|
|
|
17038225 |
HEXAGON NUT |
|
2 |
|
| 26 |
15840521
|
SCREW
|
|
4
|
|
| 27 |
15540621
|
HEXAGON BOLT
|
|
4
|
|
|
15540624 |
HEXAGON BOLT |
|
4 |
|
| 28 |
15541321
|
HEXAGON BOLT
|
|
2
|
|
|
15541330 |
HEXAGON BOLT |
|
2 |
|
