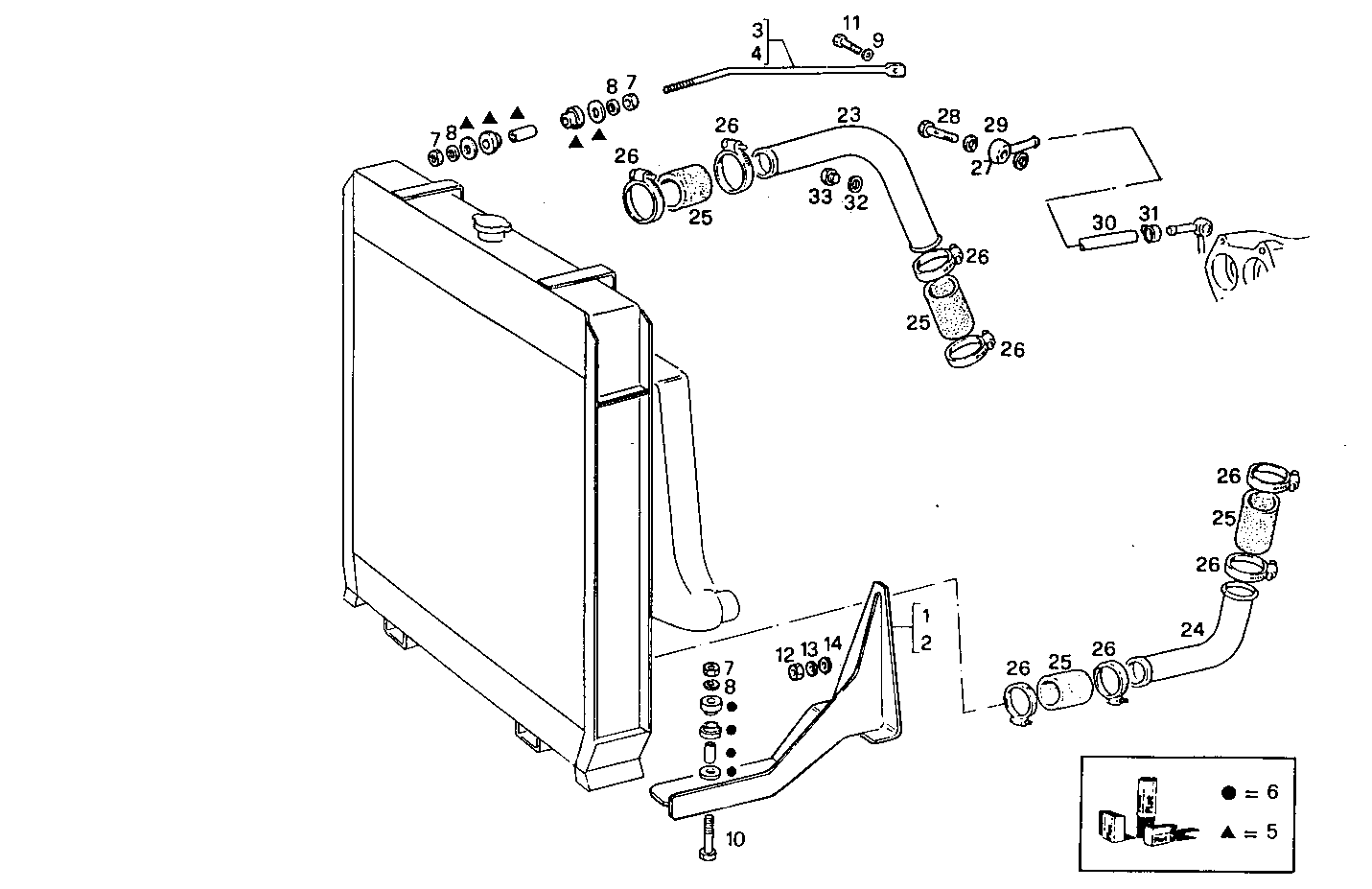

| 1 |
8107629
|
SUPPORT
|
|
1
|
|
| 2 |
8107628
|
SUPPORT
|
|
1
|
|
| 3 |
8107626
|
TIE ROD
|
|
1
|
|
| 4 |
8107627
|
TIE ROD
|
|
1
|
|
| 5 |
8090413
|
KIT-RADIATOR
|
|
1
|
|
| 6 |
8090977
|
KIT-RADIATOR
|
|
1
|
|
| 7 |
16101511
|
HEXAGON NUT
|
|
6
|
|
|
17038631 |
HEXAGON NUT |
|
6 |
|
| 8 |
11190779
|
SPRING WASHER
|
|
6
|
|
|
17091074 |
SPRING WASHER |
|
6 |
|
| 9 |
11198379
|
SPRING WASHER
|
|
1
|
|
|
17090274 |
SPRING WASHER |
|
1 |
|
| 10 |
15541221
|
HEXAGON BOLT
|
|
2
|
|
|
15541224 |
HEXAGON BOLT |
|
2 |
|
| 11 |
11343721
|
HEXAGON BOLT
|
|
2
|
|
| 12 |
12164011
|
HEXAGON NUT
|
|
6
|
|
|
17043231 |
HEXAGON NUT |
|
6 |
|
| 13 |
11194179
|
SPRING WASHER
|
|
6
|
|
| 14 |
10738121
|
WASHER
|
|
6
|
|
| 23 |
8109658
|
WATER PIPE
|
|
1
|
|
|
8022073 |
WATER PIPE |
|
1 |
|
| 24 |
8107624
|
WATER PIPE
|
|
1
|
|
| 25 |
17745887
|
RUBBER SLEEVE
|
|
4
|
|
| 26 |
12174890
|
CLIP
|
|
8
|
|
|
17765092 |
CLIP |
|
8 |
|
| 27 |
4636689
|
SWIVEL COUPLING
|
|
1
|
|
| 28 |
4864082
|
BANJO BOLT
|
|
1
|
|
| 29 |
10296160
|
SEAL GASKET
|
|
2
|
|
| 30 |
19067387
|
HOSE
|
|
1
|
|
| 31 |
12179490
|
CLIP
|
|
2
|
|
|
18088192 |
CLIP |
|
2 |
|
| 32 |
10278660
|
SEAL GASKET
|
|
1
|
|
| 33 |
10300711
|
LOCK PLUG
|
|
1
|
|
|
16992415 |
LOCK PLUG |
|
1 |
|
