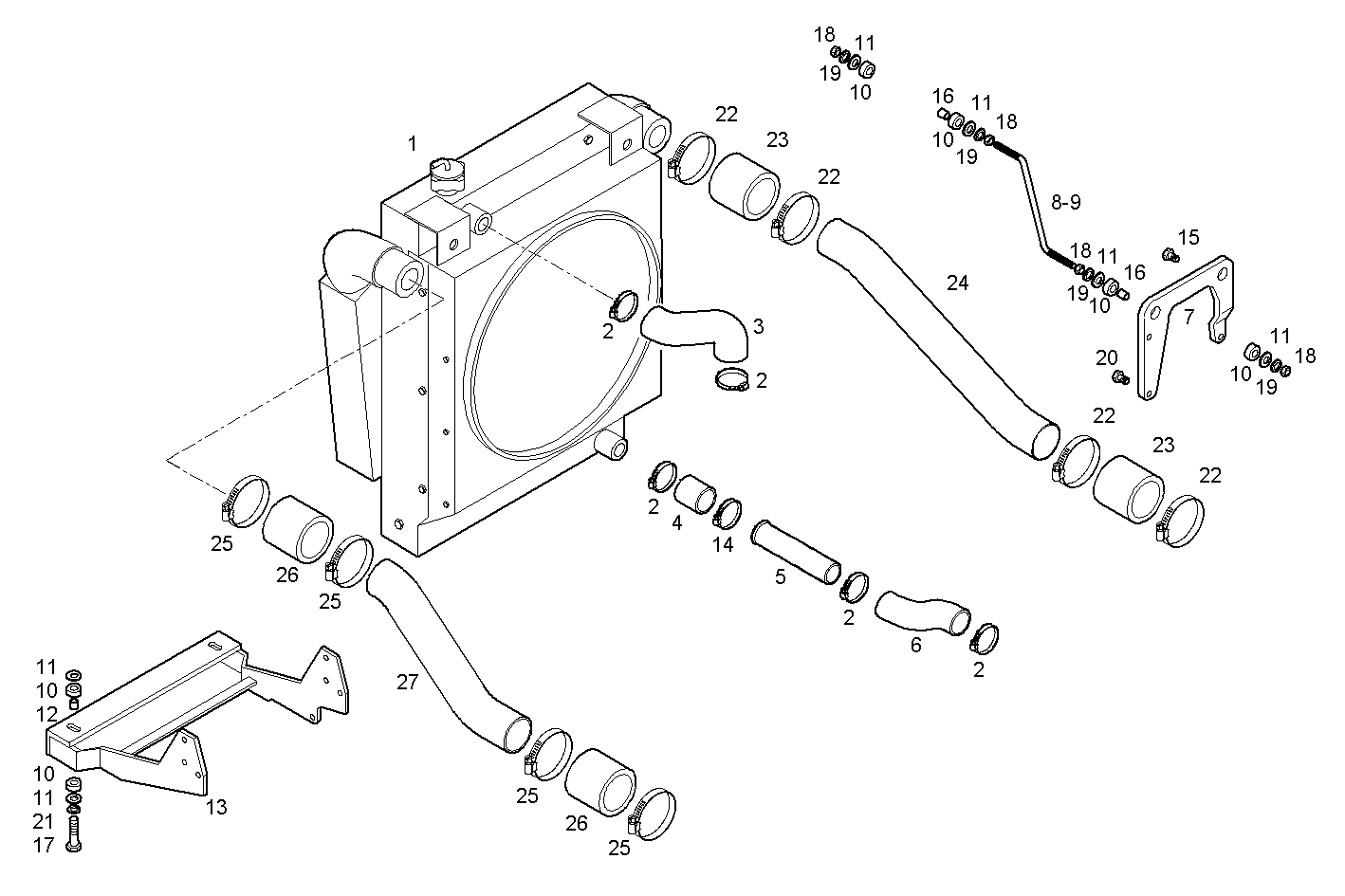

| 1 |
8048366
|
WATER RADIATOR
|
|
1
|
|
| 2 |
17764891
|
CLIP
|
|
5
|
|
|
17764892 |
CLIP |
|
5 |
|
| 3 |
8045294
|
WATER HOSE
|
|
1
|
|
| 4 |
8034474
|
RUBBER SLEEVE
|
|
1
|
|
| 5 |
8034475
|
WATER PIPE
|
|
1
|
|
| 6 |
8048405
|
RUBBER SLEEVE
|
|
1
|
|
| 7 |
8048398
|
RETAINER
|
|
1
|
|
| 8 |
8038585
|
TIE ROD
|
|
1
|
|
| 9 |
8048399
|
TIE ROD
|
|
1
|
|
| 10 |
8042179
|
RUBBER PAD
|
|
8
|
|
| 11 |
741570
|
WASHER
|
|
12
|
|
| 12 |
8108634
|
SPACING BAR
|
|
2
|
|
| 13 |
8048407
|
SUPPORT
|
|
1
|
|
| 14 |
17764991
|
CLIP
|
|
1
|
|
| 15 |
16587124
|
HEXAGON BOLT
|
|
1
|
|
| 16 |
741571
|
SPACING BAR
|
|
2
|
|
|
FPT741571 |
SPACING BAR |
|
2 |
|
| 17 |
16608524
|
HEXAGON BOLT
|
|
2
|
|
| 18 |
17038421
|
HEXAGON NUT
|
|
8
|
|
|
17038425 |
HEXAGON NUT |
|
8 |
|
| 19 |
17091074
|
WASHER
|
|
8
|
|
| 20 |
16586424
|
HEXAGON BOLT
|
|
2
|
|
|
16673735 |
HEXAGON BOLT |
|
2 |
|
| 21 |
17090274
|
WASHER
|
|
2
|
|
| 22 |
17765191
|
CLIP
|
|
4
|
|
|
17765192 |
CLIP |
|
4 |
|
| 23 |
8036376
|
WATER HOSE
|
|
2
|
|
| 24 |
8036101
|
AIR PIPE/DUCT
|
|
1
|
|
| 25 |
18089191
|
CLIP
|
|
4
|
|
| 26 |
98443275
|
TURBOCHARGER HOSE
|
|
2
|
|
| 27 |
8036099
|
AIR PIPE/DUCT
|
|
1
|
|
