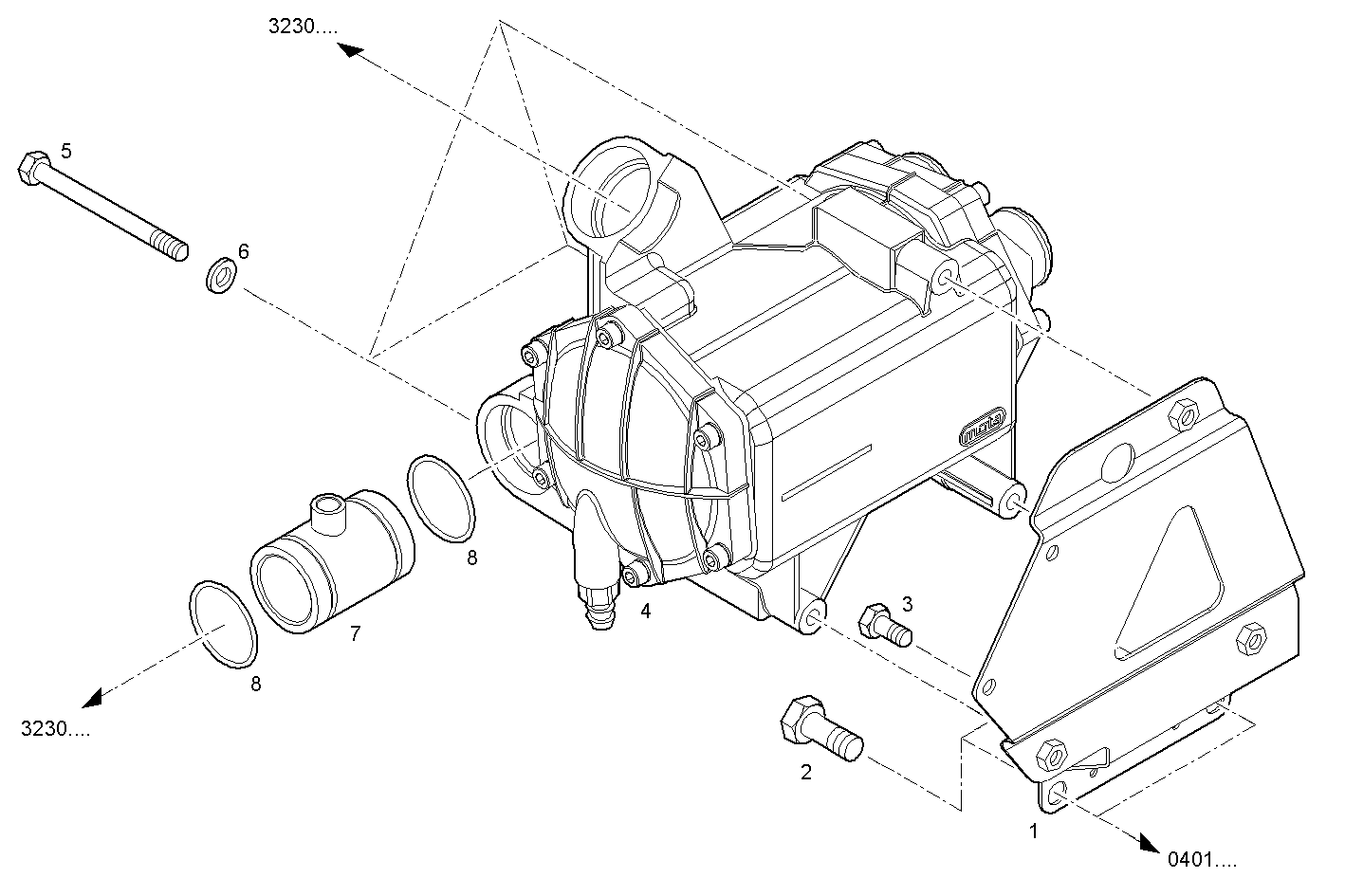

FRESH WATER - SEA WATER HEAT EXCHANGER
Assembly ID: 3370.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8040642 | SUPPORT | 1 | ||
| 2 | 16677735 | HEXAGON BOLT | 2 | ||
| 3 | 16600224 | HEXAGON BOLT | 1 | ||
| 4 | 8048089 | WATER/SEA WATER HEAT EXCH | 1 | ||
| 5 | 16045424 | SCREW | 3 | ||
| 6 | 17094914 | WASHER | 3 | ||
| 7 | 8018308 | CONNECTOR SLEEVE | 1 | ||
| 8 | 17289681 | O-RING | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNAM15.02 | NEF 6 mechanic. | view |
| N67MNTM28.12 | NEF 6 mechanic. | view |
| GMNEF60M.L50E | GMNEF 6 mechanic. | view |
| GMNEF60M.A501 | GMNEF 6 mechanic. | view |
| GMNEF60M.A510 | GMNEF 6 mechanic. | view |
| GMNEF60M.A511 | GMNEF 6 mechanic. | view |
