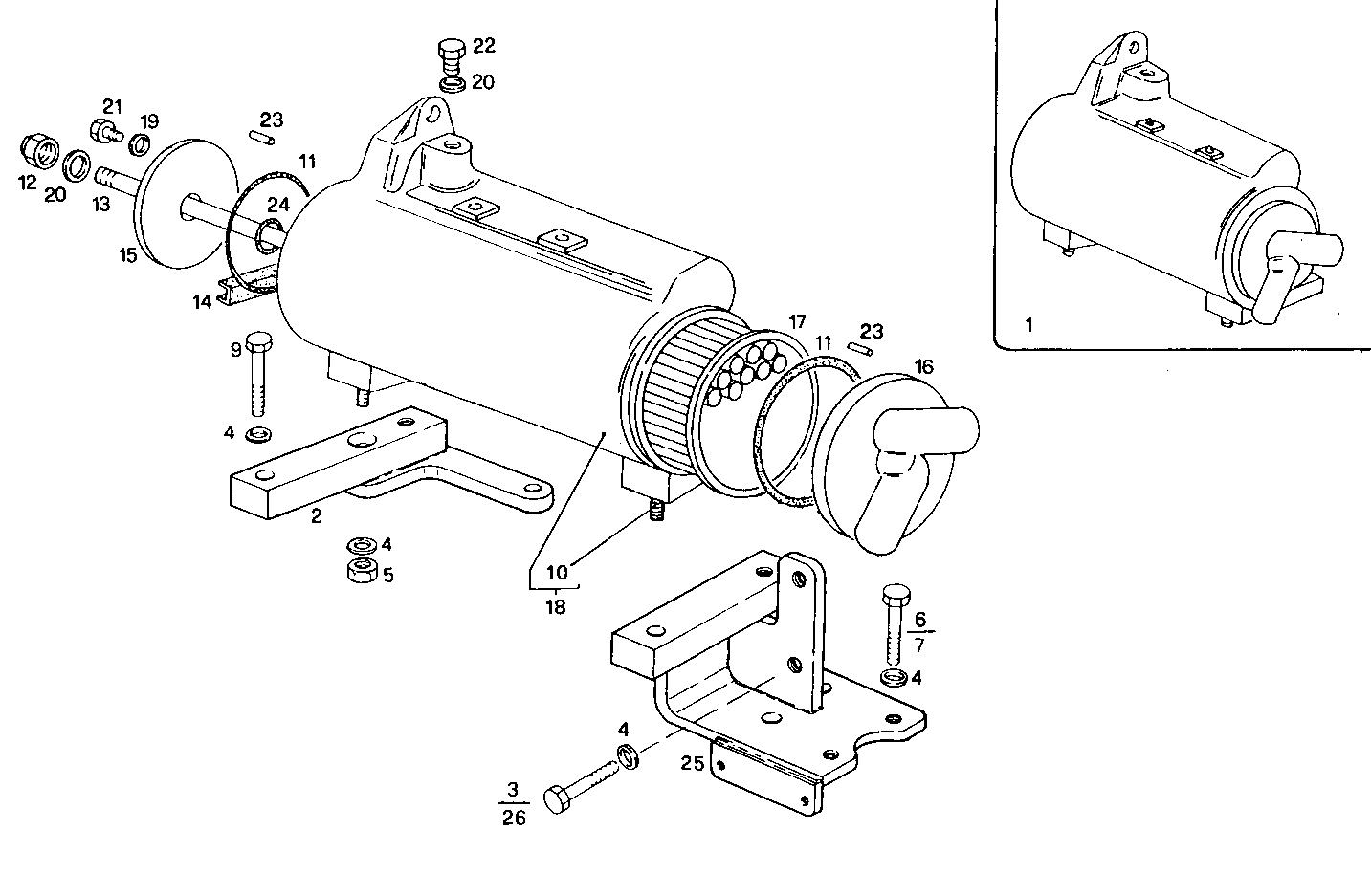

| 1 |
8107438
|
WATER/SEA WATER HEAT EXCH
|
|
1
|
|
| 2 |
8020106
|
SUPPORT
|
|
1
|
|
| 3 |
16608324
|
HEXAGON BOLT
|
|
1
|
|
|
16608325 |
HEXAGON BOLT |
|
1 |
|
| 4 |
17090174
|
SPRING WASHER
|
|
8
|
|
| 5 |
17038221
|
HEXAGON NUT
|
|
2
|
|
|
17038225 |
HEXAGON NUT |
|
2 |
|
| 6 |
11306921
|
SCREW
|
|
1
|
|
| 7 |
15970921
|
HEXAGON BOLT
|
|
1
|
|
| 9 |
15004021
|
HEXAGON BOLT
|
|
2
|
|
| 10 |
13449824
|
STUD
|
|
2
|
|
| 11 |
4918846
|
O-RING
|
|
2
|
|
| 12 |
14056240
|
NUT
|
|
1
|
|
| 13 |
4919239
|
TIE ROD
|
|
1
|
|
| 14 |
4927193
|
GASKET
|
|
1
|
|
| 15 |
4927723
|
HEAT EXCHANG.COVER
|
|
1
|
|
| 16 |
4927722
|
HEAT EXCHANG.COVER
|
|
1
|
|
| 17 |
4931141
|
TUBE STACK
|
|
1
|
|
| 18 |
4933758
|
HEAT EXANGER BODY
|
|
1
|
|
| 19 |
10284460
|
SEAL GASKET
|
|
1
|
|
| 20 |
10298460
|
SEAL GASKET
|
|
1
|
|
| 21 |
11903140
|
PLUG
|
|
1
|
|
| 22 |
11903240
|
PLUG
|
|
1
|
|
|
11903211 |
PLUG |
|
1 |
|
| 23 |
14158570
|
DOWEL PIN
|
|
2
|
|
| 24 |
17281681
|
O-RING
|
|
1
|
|
| 25 |
8020107
|
SUPPORT
|
|
1
|
|
| 26 |
16608724
|
HEXAGON BOLT
|
|
1
|
|
