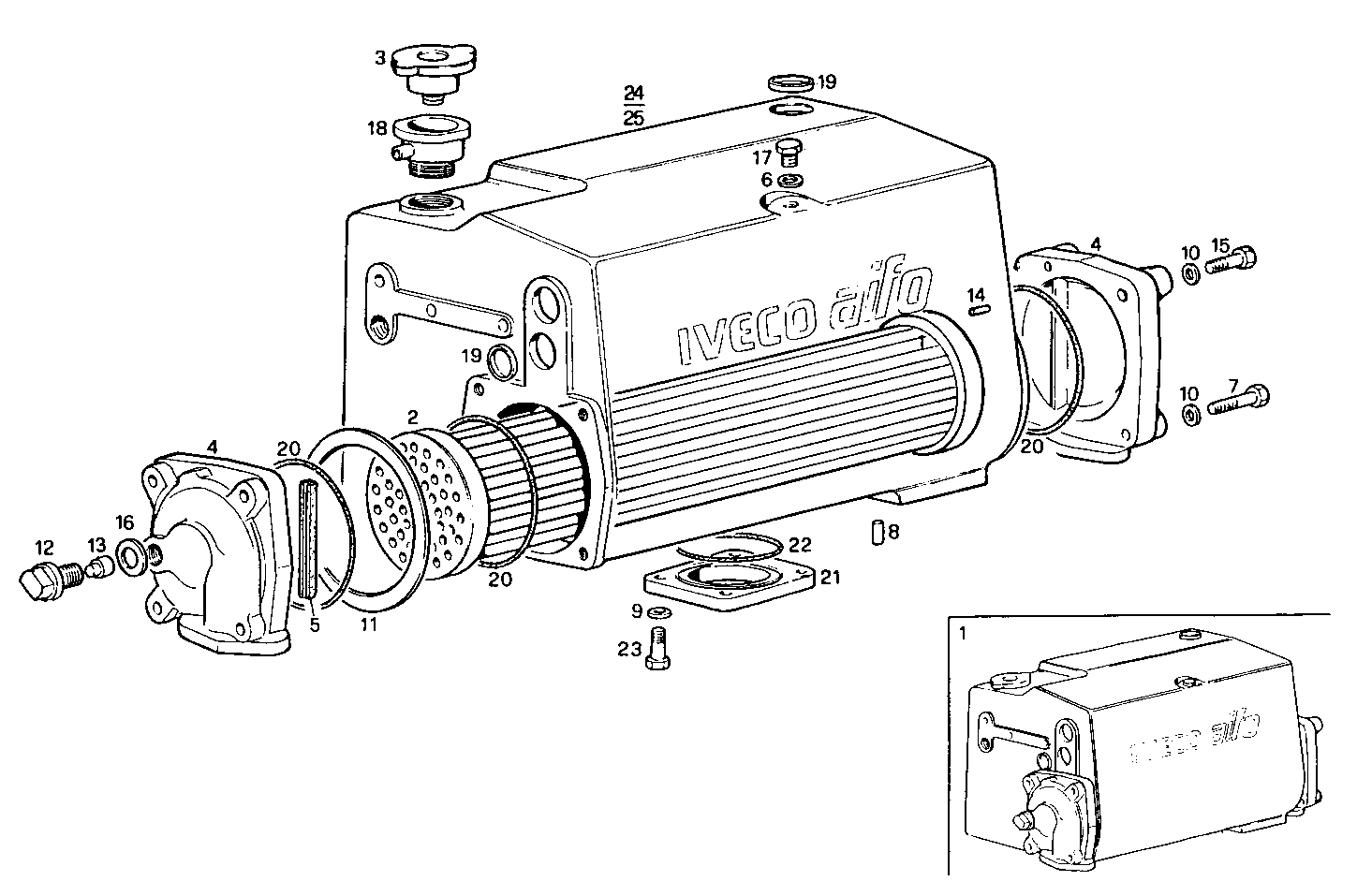

| 1 |
8019160
|
WATER/SEA WATER HEAT EXCH
|
|
1
|
|
| 2 |
8011927
|
TUBE STACK
|
|
1
|
|
| 3 |
4927808
|
PLUG
|
|
1
|
|
| 4 |
8110521
|
HEAT EXCHANG.COVER
|
|
2
|
|
| 5 |
8110758
|
GASKET
|
|
2
|
|
| 6 |
4858608
|
SEAL GASKET
|
|
1
|
|
| 7 |
16606624
|
HEXAGON BOLT
|
|
2
|
|
| 8 |
17256970
|
PIN
|
|
1
|
|
| 9 |
17094914
|
WASHER
|
|
4
|
|
| 10 |
17089774
|
SPRING WASHER
|
|
8
|
|
| 11 |
8110523
|
SPACING BAR
|
|
1
|
|
| 12 |
8101771
|
PLUG
|
|
2
|
|
| 13 |
8101772
|
SACRIFICAL ANODE
|
|
2
|
|
| 14 |
17253770
|
PIN
|
|
1
|
|
| 15 |
16605924
|
SCREW
|
|
6
|
|
| 16 |
10296260
|
SEAL GASKET
|
|
2
|
|
| 17 |
16992340
|
THREADED PLUG
|
|
1
|
|
| 18 |
4934521
|
PIPE SOCKET
|
|
1
|
|
| 19 |
16991370
|
LOCK PLUG
|
|
5
|
|
| 20 |
17292981
|
O-RING
|
|
4
|
|
| 21 |
8104925
|
FLANGE
|
|
1
|
|
| 22 |
17290781
|
O-RING
|
|
1
|
|
| 23 |
16605734
|
HEXAGON BOLT
|
|
4
|
|
| 24 |
8019161
|
HEAT EXANGER BODY
|
|
1
|
|
| 25 |
8012020
|
HEAT EXANGER BODY
|
|
1
|
|
