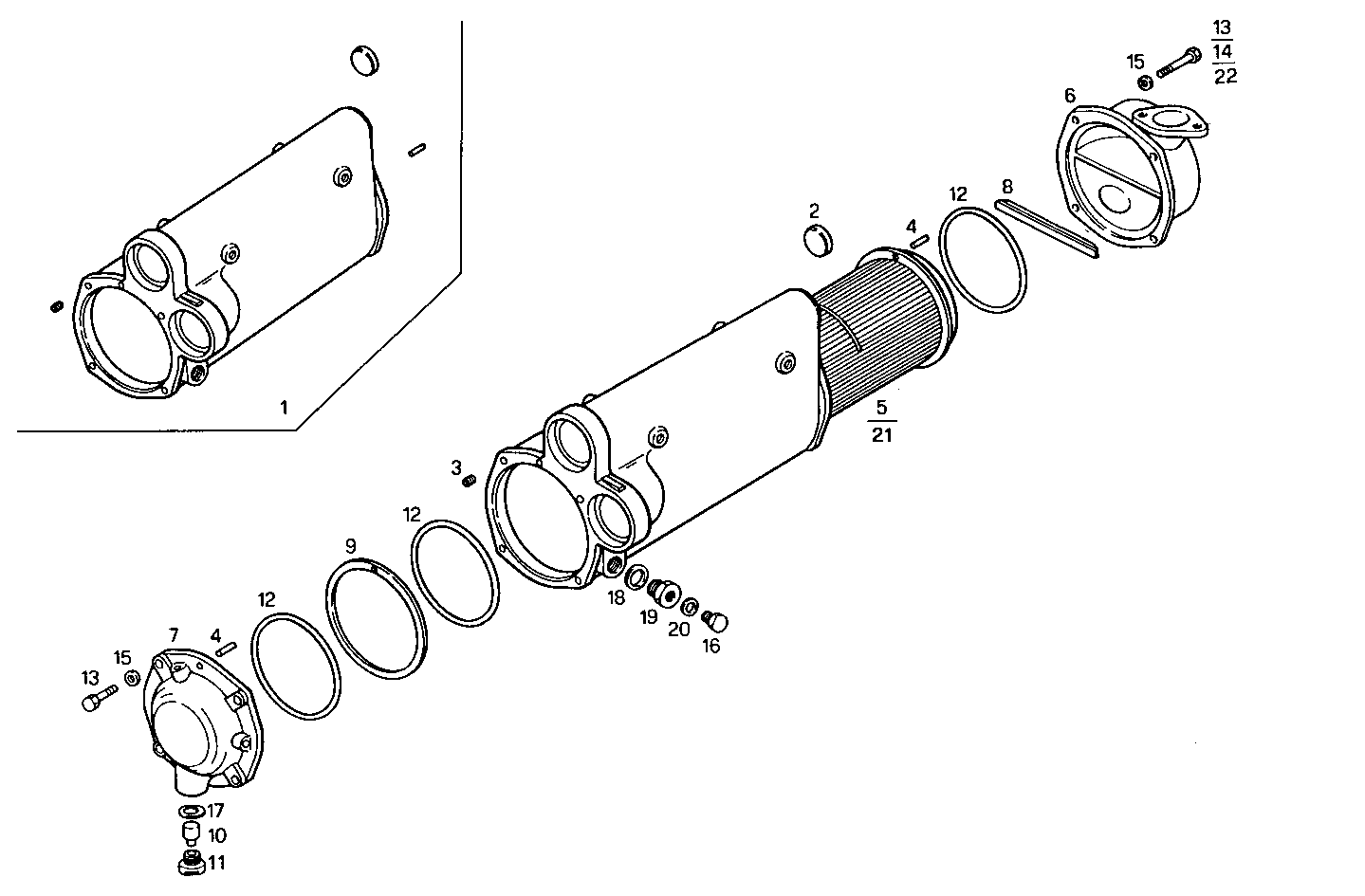

| 1 |
8009500
|
HEAT EXANGER BODY
|
|
1
|
|
| 2 |
16991370
|
LOCK PLUG
|
|
1
|
|
| 3 |
17873271
|
THREADED INSERT
|
|
8
|
|
| 4 |
17236310
|
PARALLEL PIN
|
|
2
|
|
|
17236324 |
PARALLEL PIN |
|
2 |
|
| 5 |
8025079
|
TUBE STACK
|
|
1
|
|
|
8031365 |
TUBE STACK |
|
1 |
|
| 6 |
8025107
|
HEAT EXCHANG.COVER
|
|
1
|
|
| 7 |
8019660
|
HEAT EXCHANG.COVER
|
|
1
|
|
| 8 |
8110978
|
GASKET
|
|
1
|
|
| 9 |
8009505
|
SPACING BAR
|
|
1
|
|
| 10 |
8101772
|
SACRIFICAL ANODE
|
|
1
|
|
| 11 |
8101771
|
PLUG
|
|
1
|
|
| 12 |
17293181
|
O-RING
|
|
4
|
|
| 13 |
16605924
|
SCREW
|
|
6
|
|
| 14 |
16606724
|
HEXAGON BOLT
|
|
1
|
|
| 15 |
17089474
|
SPRING WASHER
|
|
8
|
|
| 16 |
16992340
|
THREADED PLUG
|
|
1
|
|
| 17 |
10296260
|
SEAL GASKET
|
|
1
|
|
| 18 |
98429282
|
SEAL GASKET
|
|
1
|
|
| 19 |
8011536
|
PIPE SOCKET
|
|
1
|
|
|
8038689 |
PIPE SOCKET |
|
1 |
|
| 20 |
4858608
|
SEAL GASKET
|
|
1
|
|
| 21 |
8031365
|
TUBE STACK
|
|
1
|
|
| 22 |
16044721
|
HEXAGON BOLT
|
|
1
|
|
