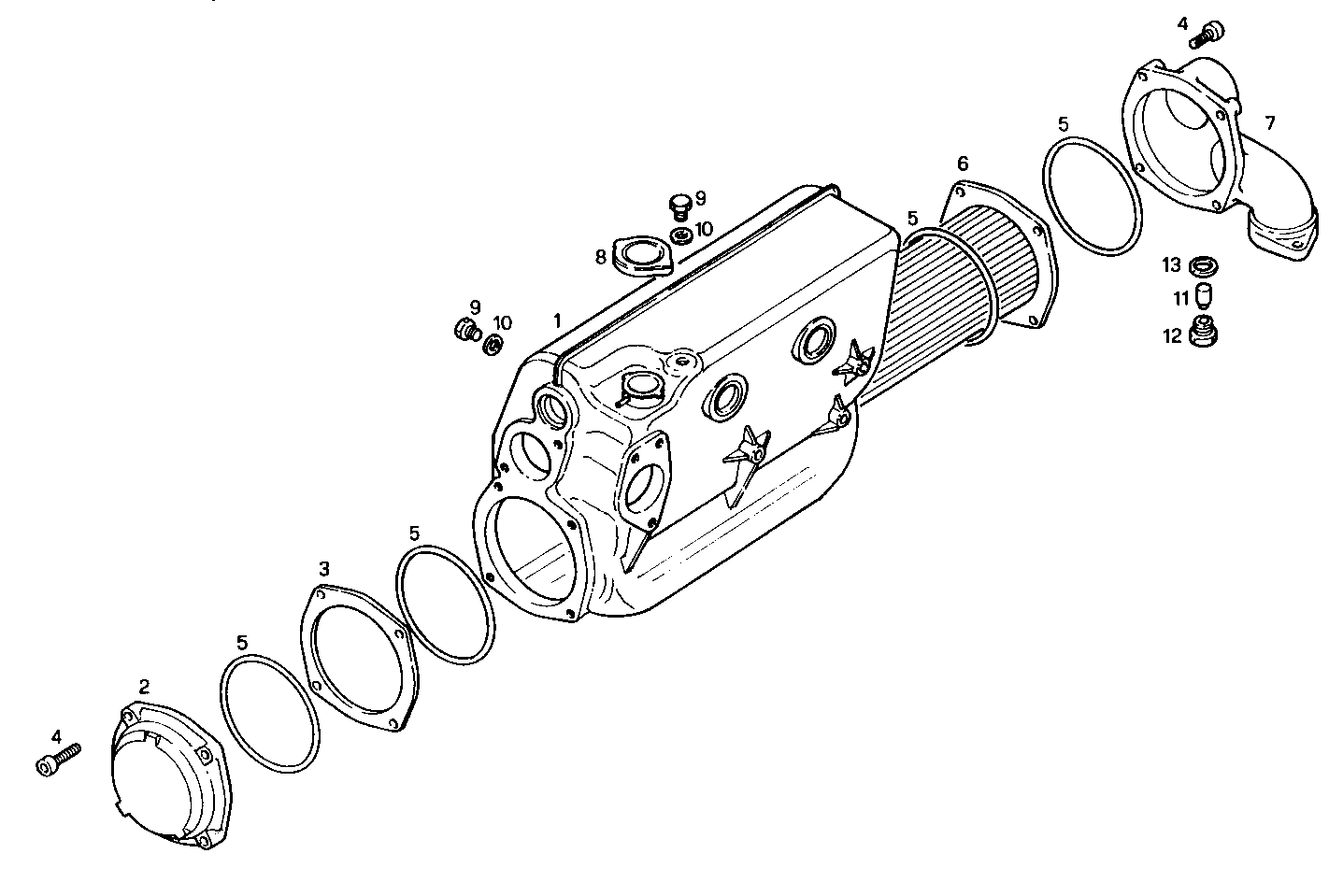

FRESH WATER - SEA WATER HEAT EXCHANGER
Assembly ID: 3370.040-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8029431 | HEAT EXANGER BODY | 1 | ||
| 2 | 8029427 | HEAT EXCHANG.COVER | 1 | ||
| 3 | 8029428 | SPACING BAR | 1 | ||
| 4 | 16690924 | CYLIND-HEAD SCREW | 8 | ||
| 5 | 8030481 | O-RING | 4 | ||
| 6 | 8029433 | TUBE STACK | 1 | ||
| 7 | 8029434 | HEAT EXCHANG.COVER | 1 | ||
| 8 | 8029432 | PLUG | 1 | ||
| 9 | 16992340 | THREADED PLUG | 2 | ||
| 10 | 4858608 | SEAL GASKET | 2 | ||
| 11 | 8105277 | SACRIFICAL ANODE | 1 | ||
| 12 | 4917793 | PLUG | 1 | ||
| 13 | 4858610 | WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.10 | CURSOR 8 | view |
| C78ENTM30.10-C 12/03 | CURSOR 8 | view |
