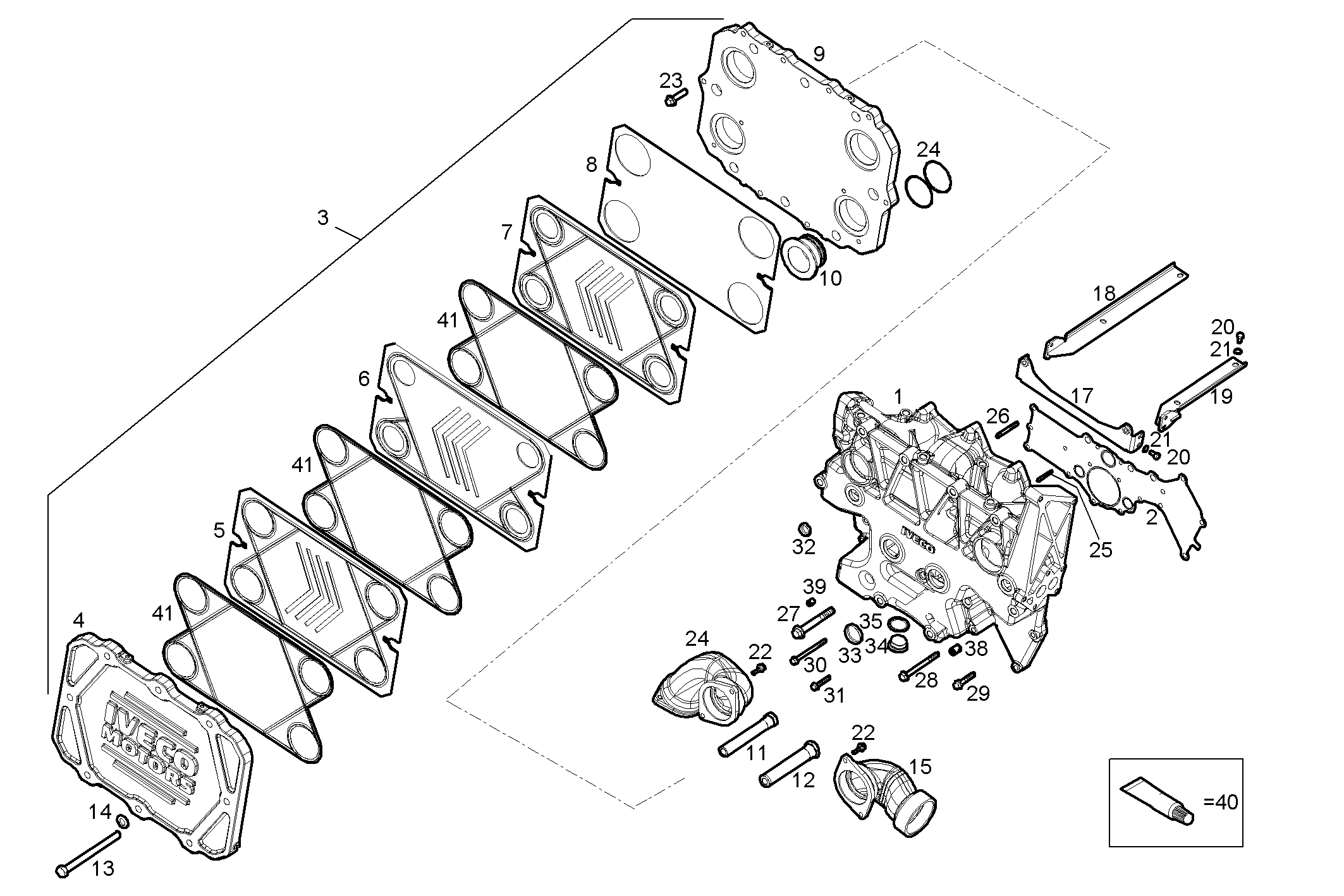

| 1 |
8040326
|
SUPPORT
|
|
1
|
|
| 2 |
8042490
|
FLAT ENGINE GASKET
|
|
1
|
|
| 3 |
8039150
|
WATER/SEA WATER HEAT EXCH
|
|
1
|
|
| 4 |
8039153
|
PLATE
|
|
1
|
|
| 5 |
8039950
|
PLATE
|
|
1
|
|
| 6 |
8039192
|
PLATE
|
|
28
|
|
| 7 |
8040290
|
PLATE
|
|
1
|
|
| 8 |
8040874
|
SPACING BAR
|
|
1
|
|
| 9 |
8040875
|
PLATE
|
|
1
|
|
| 10 |
8039157
|
BUSH
|
|
4
|
|
| 11 |
8039155
|
SPACING BAR
|
|
6
|
|
| 12 |
8039156
|
SPACING BAR
|
|
2
|
|
| 13 |
8039160
|
SCREW
|
|
8
|
|
| 14 |
17092174
|
SPRING WASHER
|
|
8
|
|
| 15 |
8037759
|
WATER PIPE
|
|
1
|
|
| 16 |
8037760
|
WATER PIPE
|
|
1
|
|
| 17 |
8040143
|
RETAINER
|
|
1
|
|
| 18 |
8040147
|
RETAINER
|
|
1
|
|
| 19 |
8040151
|
RETAINER
|
|
1
|
|
| 20 |
16605424
|
SCREW
|
|
8
|
|
| 21 |
17089474
|
SPRING WASHER
|
|
8
|
|
| 22 |
16673735
|
HEXAGON BOLT
|
|
4
|
|
| 23 |
16678235
|
HEXAGON BOLT
|
|
8
|
|
| 24 |
17290581
|
O-RING
|
|
8
|
|
| 25 |
16729624
|
STUD
|
|
3
|
|
| 26 |
16730024
|
STUD
|
|
2
|
|
| 27 |
16594024
|
HEXAGON BOLT
|
|
3
|
|
| 28 |
16598924
|
HEXAGON BOLT
|
|
1
|
|
|
16598925 |
HEXAGON BOLT |
|
1 |
|
| 29 |
16587625
|
HEXAGON BOLT
|
|
4
|
|
| 30 |
16598324
|
HEXAGON BOLT
|
|
7
|
|
| 31 |
16586825
|
HEXAGON BOLT
|
|
5
|
|
| 32 |
16990870
|
LOCK PLUG
|
|
4
|
|
| 33 |
16991370
|
LOCK PLUG
|
|
4
|
|
| 34 |
16993711
|
THREADED PLUG
|
|
2
|
|
| 35 |
99469380
|
SEAL GASKET
|
|
2
|
|
|
5801560861 |
SEAL GASKET |
|
2 |
|
| 36 |
16994111
|
PLUG
|
|
2
|
|
| 37 |
99489023
|
SPRING WASHER
|
|
2
|
|
| 38 |
17873271
|
THREADED INSERT
|
|
23
|
|
| 39 |
17873571
|
THREADED INSERT
|
|
14
|
|
| 40 |
2992695
|
ADHESIVE/STICKER
|
|
1
|
|
| 41 |
8040908
|
SEAL GASKET
|
|
30
|
|
