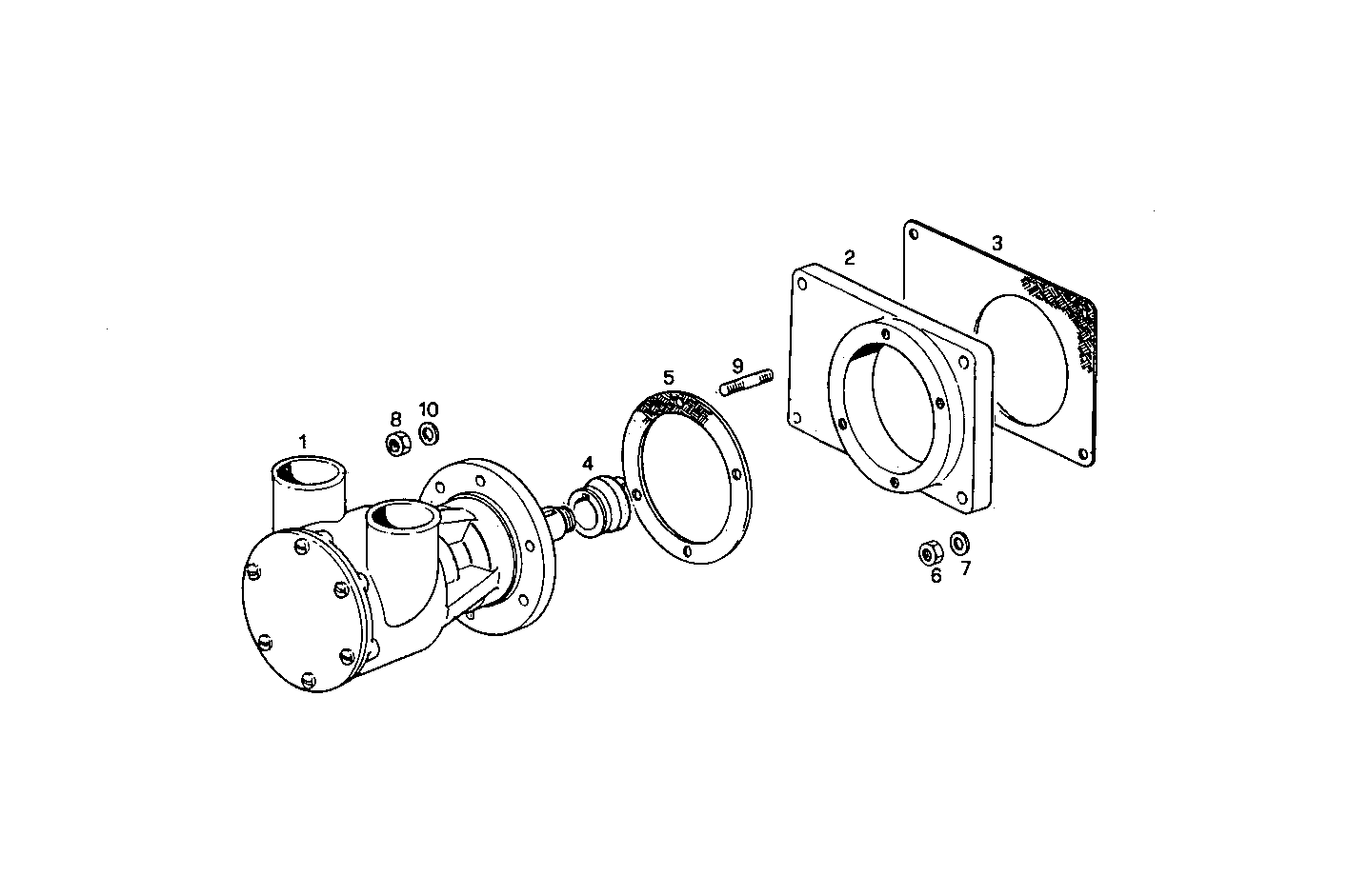

SEA WATER PUMP
Assembly ID: 3380.001-01
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8107293 | SEA WATER PUMP | 1 | ||
| 2 | 8107449 | SUPPORT | 1 | ||
| 3 | 4850986 | FLAT ENGINE GASKET | 1 | ||
| 4 | 4919289 | COUPLER | 1 | ||
| 5 | 8008922 | GASKET | 1 | ||
| 6 | 17037821 | HEXAGON NUT | 2 | ||
| 7 | 17088474 | WASHER | 4 | ||
| 8 | 17037821 | HEXAGON NUT | 3 | ||
| 9 | 16727624 | STUD | 4 | ||
| 10 | 17089474 | SPRING WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061M12.00 | 8061M12 | view |
| 8041M09.01 | 8041M09 | view |
| 8031M06.01 | 8031M06 | view |
| 8041M08.01 | 8041M08 | view |
| 8041M09.02 | 8041M09 | view |
