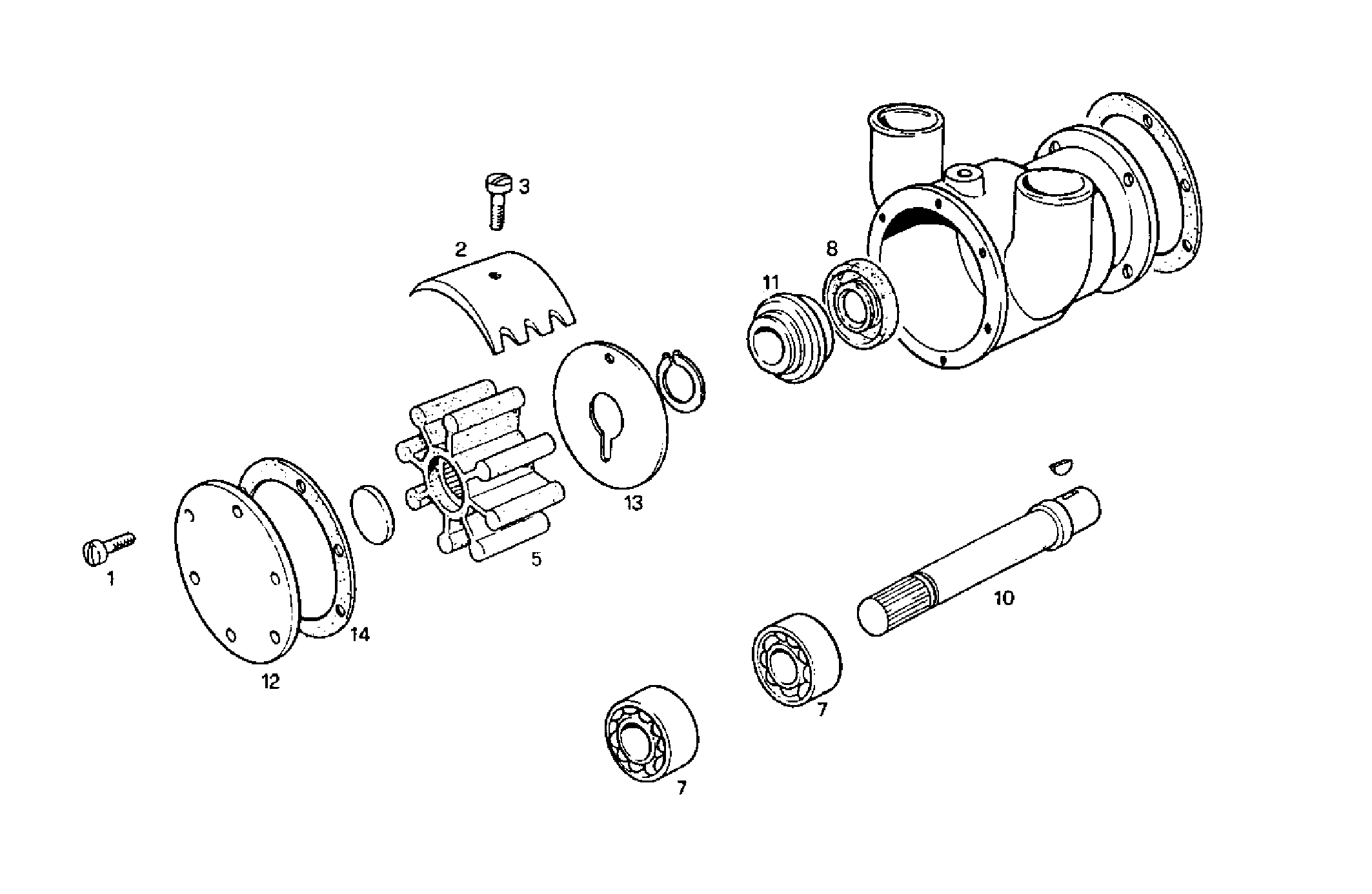

SEA WATER PUMP
Assembly ID: 3380.013-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8093345 | SCREW | 6 | ||
| 2 | 4914942 | RETAINING CAM | 1 | ||
| 3 | 8093336 | SCREW | 1 | ||
| 5 | 8112172 | SEA WATER PUMP IMPELL. | 1 | ||
| 7 | 8112166 | DRIVE BEARING | 2 | ||
| 8 | 8112167 | WASHER | 1 | ||
| 10 | 8112170 | SHAFT | 1 | ||
| 11 | 8112168 | GASKET | 1 | ||
| 12 | 4914945 | COVER | 1 | ||
| 13 | 4914941 | WASHER | 1 | ||
| 14 | 4914944 | GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRM38.10 | 8361SRM38 | view |
| 8361SRM38.11 | 8361SRM38 | view |
| 8361SRM40.00 | 8361SRM40 | view |
| 8361SRM40.01 | 8361SRM40 | view |
| 8361SM21.01 | 8361SM21 | view |
| 8361SM21.01A550 | 8361SM21 | view |
| 8361SM21.01A580 | 8361SM21 | view |
