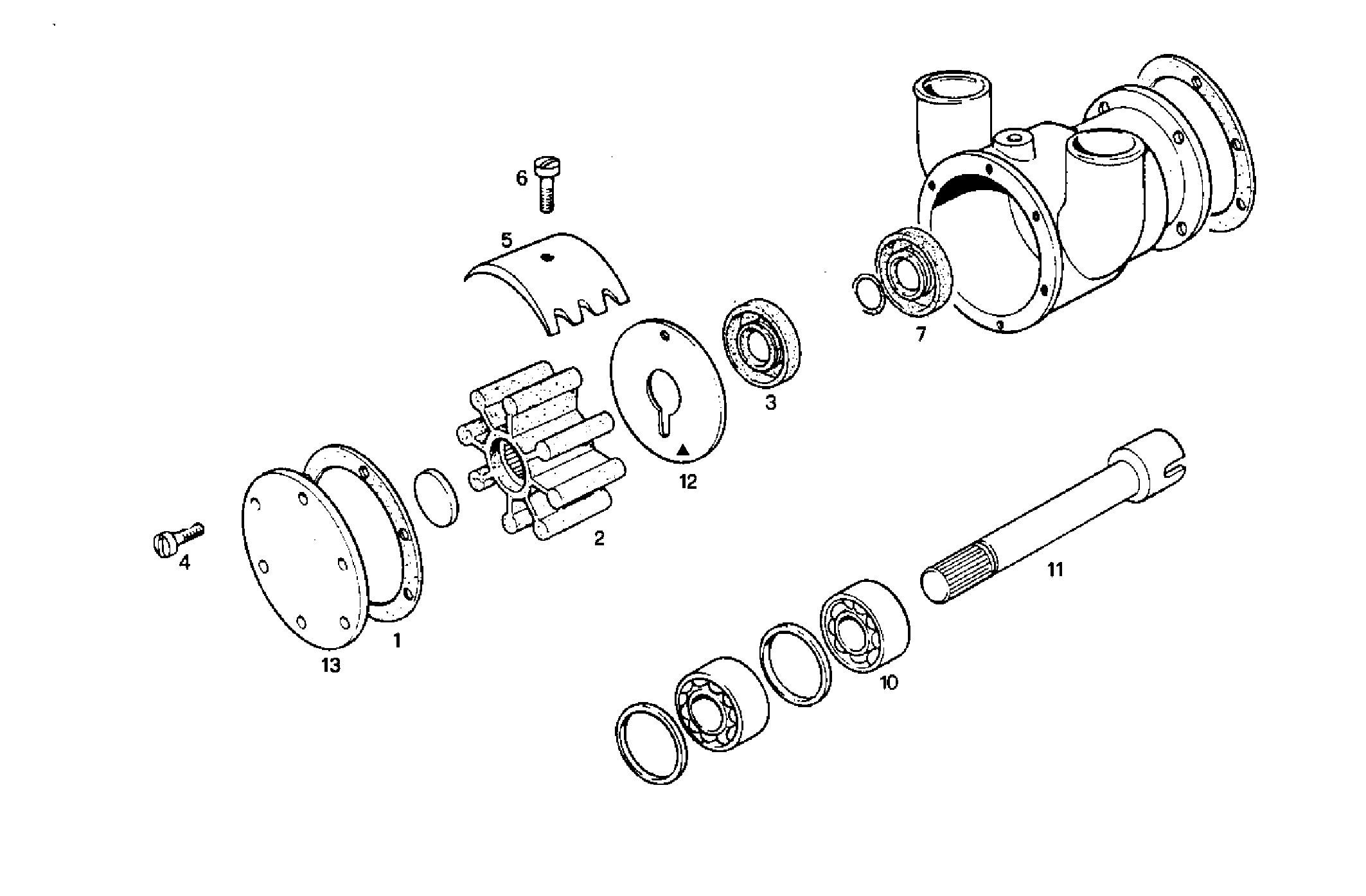

SEA WATER PUMP
Assembly ID: 3380.024-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8108230 | GASKET | 1 | ||
| 2 | 4913429 | SEA WATER PUMP IMPELL. | 1 | ||
| 3 | 8093752 | WASHER | 1 | ||
| 4 | 4914930 | SCREW | 6 | ||
| 5 | 8108233 | RETAINING CAM | 1 | ||
| 6 | 4914931 | SCREW | 1 | ||
| 7 | 8093752 | WASHER | 1 | ||
| 10 | 8108240 | DRIVE BEARING | 1 | ||
| 11 | 8093753 | SHAFT | 1 | ||
| 12 | 8108235 | WASHER | 1 | ||
| 13 | 4914923 | COVER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8035M06.00A60S | GE8035M06 | view |
| GE8045M08.00A60S | GE8045M08 | view |
| GE8045M08.00A61S | GE8045M08 | view |
| GE8035M06.01A61S | GE8035M06 | view |
| 8035M06.00 | 8035M06 | view |
| 8045M08.00 | 8045M08 | view |
| 8035M06.01 | 8035M06 | view |
| 8035M06.00A550 | 8035M06 | view |
| 8045M08.00A550 | 8045M08 | view |
| 8035M06.01A550 | 8035M06 | view |
