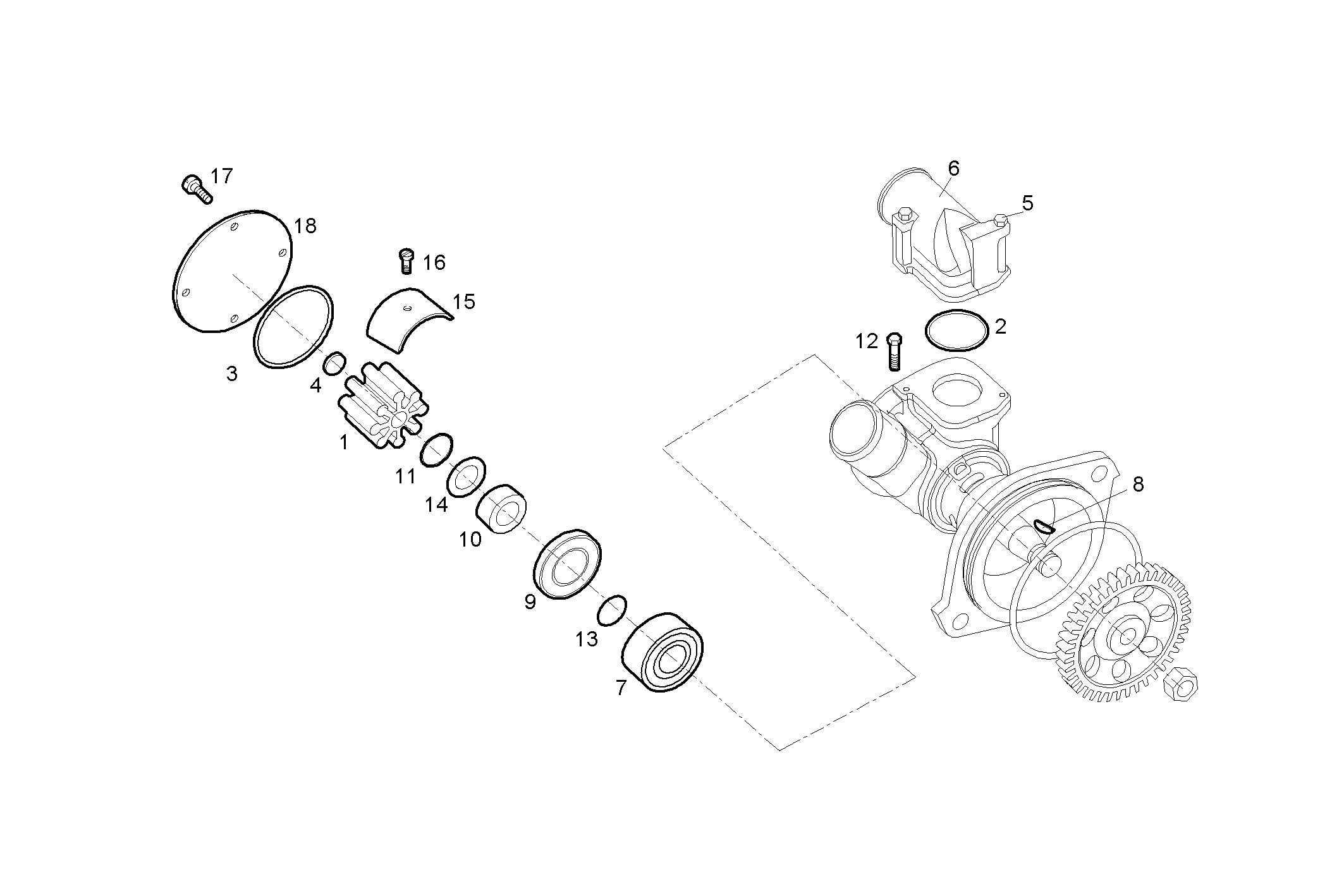

SEA WATER PUMP (COMPONENTS)

Assembly ID: 3381.000

SEA WATER PUMP (COMPONENTS)

Parts

# Part number Description Note Quantity
1 8106207 SEA WATER PUMP IMPELL. 1
2 8032536 O-RING 1
3 8032539 O-RING 1
4 8032760 RUBBER GASKET 1
5 8093964 SCREW 2
6 8093963 SEA WATER PIPE 1
7 8106247 DRIVE BEARING 2
8 8018002 KEY 1
9 8093346 WASHER 1
10 8112168 GASKET 1
11 4914953 CIRCLIP 1
12 8093336 SCREW 1
13 8112171 WASHER 1
14 4914941 WASHER 1
15 8097577 RETAINING CAM 1
16 8093336 SCREW 1
17 8097586 HEXAGON BOLT 4
18 8097587 COVER 1

Applies to engines

Engine Family
N67MNTM28.10 NEF 6 mechanic. view
N60ENTM37.10 NEF 6 electron. view
N40ENTM25.10 NEF 4 electron. view
N60ENTM40.10 NEF 6 electron. view
N67MNSM22.10 NEF 6 mechanic. view
N67MNSM22.11 NEF 6 mechanic. view
N67MNTM28.11 NEF 6 mechanic. view
N67ENTM45.10 NEF 6 electron. view
N60ENTM40.10A001 NEF 6 electron. view
N67MNTM28.12 NEF 6 mechanic. view
GMNEF80M.L50E GMNEF 6 mechanic. view
GMNEF115M.L50E GMNEF 6 mechanic. view
N67ENTM56.10 NEF 6 electron. view
GMNEF115M.A501 GMNEF 6 mechanic. view
GMNEF115M.A510 GMNEF 6 mechanic. view
GMNEF115M.A511 GMNEF 6 mechanic. view
GMNEF80M.A501 GMNEF 6 mechanic. view
GMNEF80M.A510 GMNEF 6 mechanic. view
GMNEF80M.A511 GMNEF 6 mechanic. view
