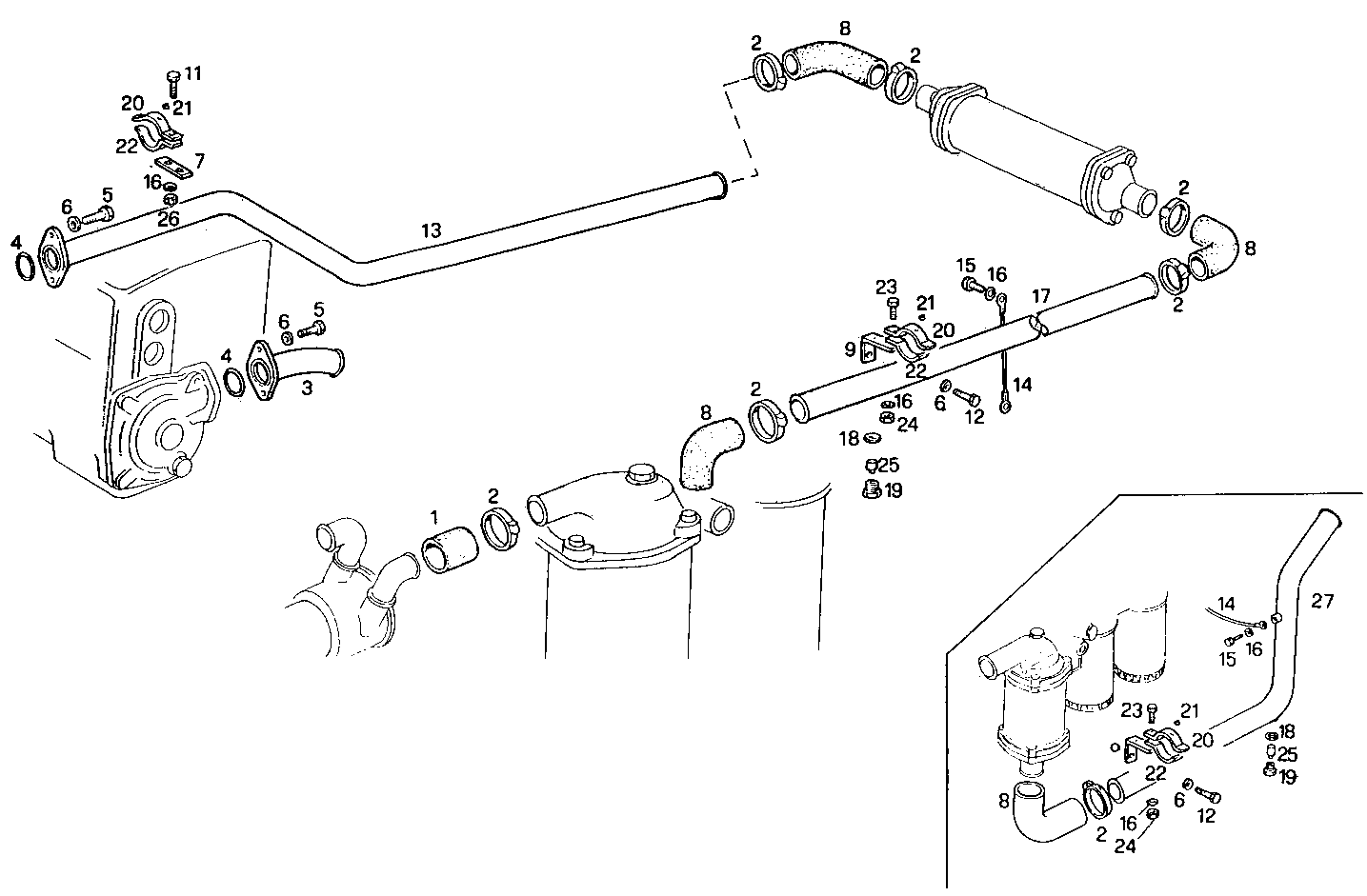

| 1 |
4765112
|
RUBBER SLEEVE
|
|
1
|
|
|
98420479 |
RUBBER SLEEVE |
|
1 |
|
| 2 |
17764993
|
CLIP
|
|
8
|
|
| 3 |
8009636
|
WATER PIPE
|
|
1
|
|
| 4 |
17289981
|
O-RING
|
|
2
|
|
| 5 |
11112221
|
HEXAGON BOLT
|
|
4
|
|
|
16609825 |
HEXAGON BOLT |
|
4 |
|
| 6 |
17091071
|
SPRING WASHER
|
|
5
|
|
| 7 |
8103806
|
RETAINER
|
|
1
|
|
| 8 |
8009940
|
RUBBER SLEEVE
|
|
3
|
|
| 9 |
8007981
|
RETAINER
|
|
1
|
|
| 11 |
16605524
|
HEXAGON BOLT
|
|
1
|
|
| 12 |
15540221
|
HEXAGON BOLT
|
|
1
|
|
|
15540224 |
HEXAGON BOLT |
|
1 |
|
| 13 |
8014628
|
WATER PIPE
|
|
1
|
|
| 14 |
8113786
|
ENGINE HARNESS
|
|
2
|
|
| 15 |
16043021
|
HEXAGON BOLT
|
|
2
|
|
|
16043024 |
HEXAGON BOLT |
|
2 |
|
| 16 |
17089471
|
SPRING WASHER
|
|
4
|
|
|
17089474 |
SPRING WASHER |
|
4 |
|
| 17 |
8020051
|
WATER PIPE
|
|
1
|
|
| 18 |
4858610
|
WASHER
|
|
1
|
|
| 19 |
4917793
|
PLUG
|
|
1
|
|
|
8093596 |
PLUG |
|
1 |
|
|
8093597 |
PLUG |
|
1 |
|
| 20 |
8113296
|
CLAMP
|
|
2
|
|
| 21 |
1366290
|
RUBBER LUG
|
|
8
|
|
| 22 |
8113295
|
CLAMP
|
|
2
|
|
| 23 |
16605624
|
HEXAGON BOLT
|
|
2
|
|
|
16605635 |
HEXAGON BOLT |
|
2 |
|
| 24 |
17037931
|
HEXAGON NUT
|
|
1
|
|
| 25 |
8105277
|
SACRIFICAL ANODE
|
|
1
|
|
| 26 |
17038221
|
HEXAGON NUT
|
|
1
|
|
|
17038225 |
HEXAGON NUT |
|
1 |
|
| 27 |
8017446
|
WATER PIPE
|
|
1
|
|
