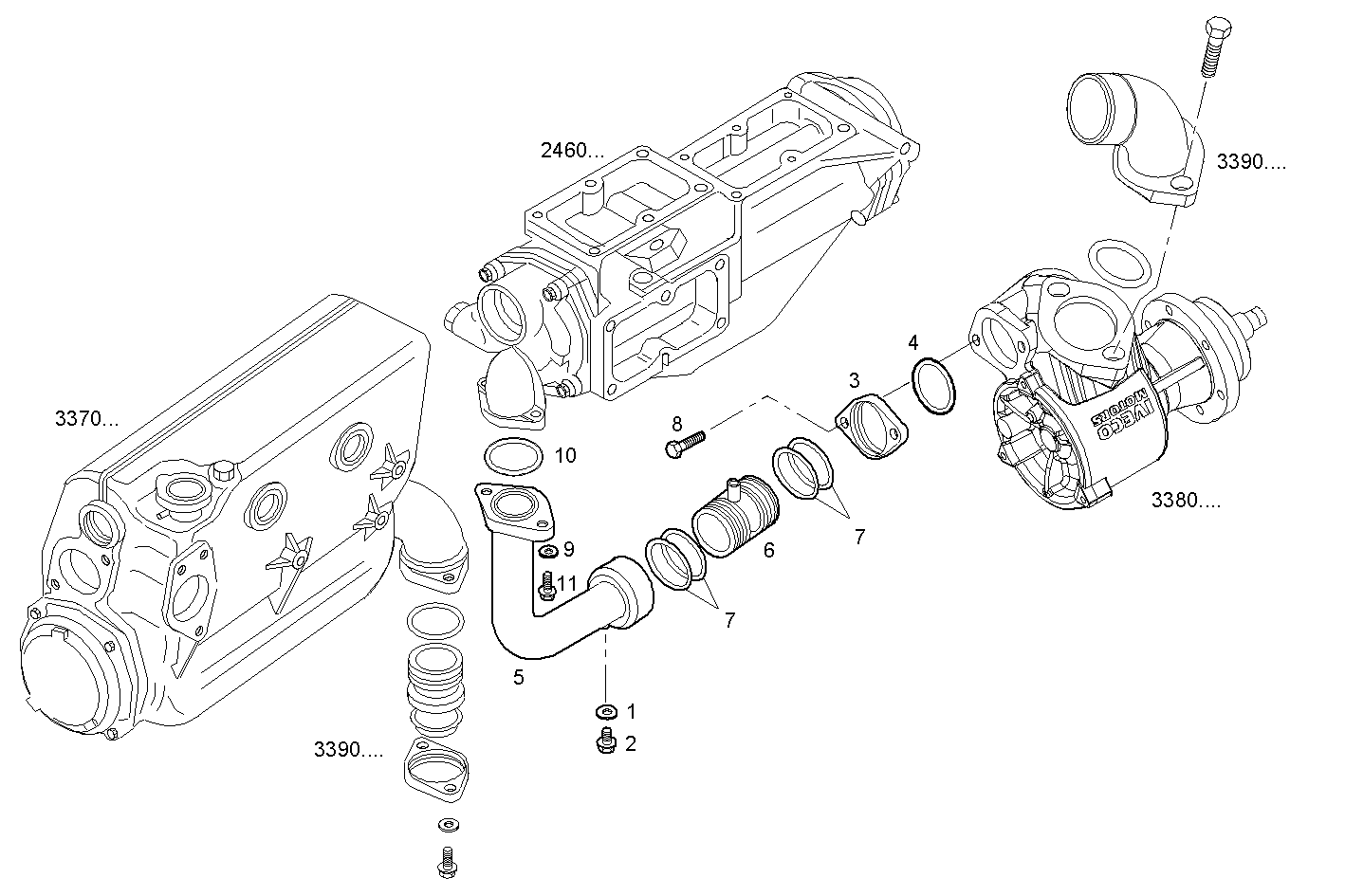

SEA WATER LINES
Assembly ID: 3390.074
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99489016 | SEAL GASKET | 1 | ||
| 2 | 16992140 | PLUG | 1 | ||
| 3 | 8038613 | FLANGE | 1 | ||
| 4 | 17290281 | O-RING | 1 | ||
| 5 | 8038607 | WATER PIPE | 1 | ||
| 6 | 8029811 | SPACING BAR | 1 | ||
| 7 | 17289981 | O-RING | 4 | ||
| 8 | 16690724 | CYLIND-HEAD SCREW | 2 | ||
| 9 | 17089474 | SPRING WASHER | 2 | ||
| 10 | 17289881 | O-RING | 1 | ||
| 11 | 16605670 | SCREW | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM55.10 | CURSOR 8 | view |
| C78ENTM55.10A001 | CURSOR 8 | view |
| C78ENTM55.12 | CURSOR 8 | view |
