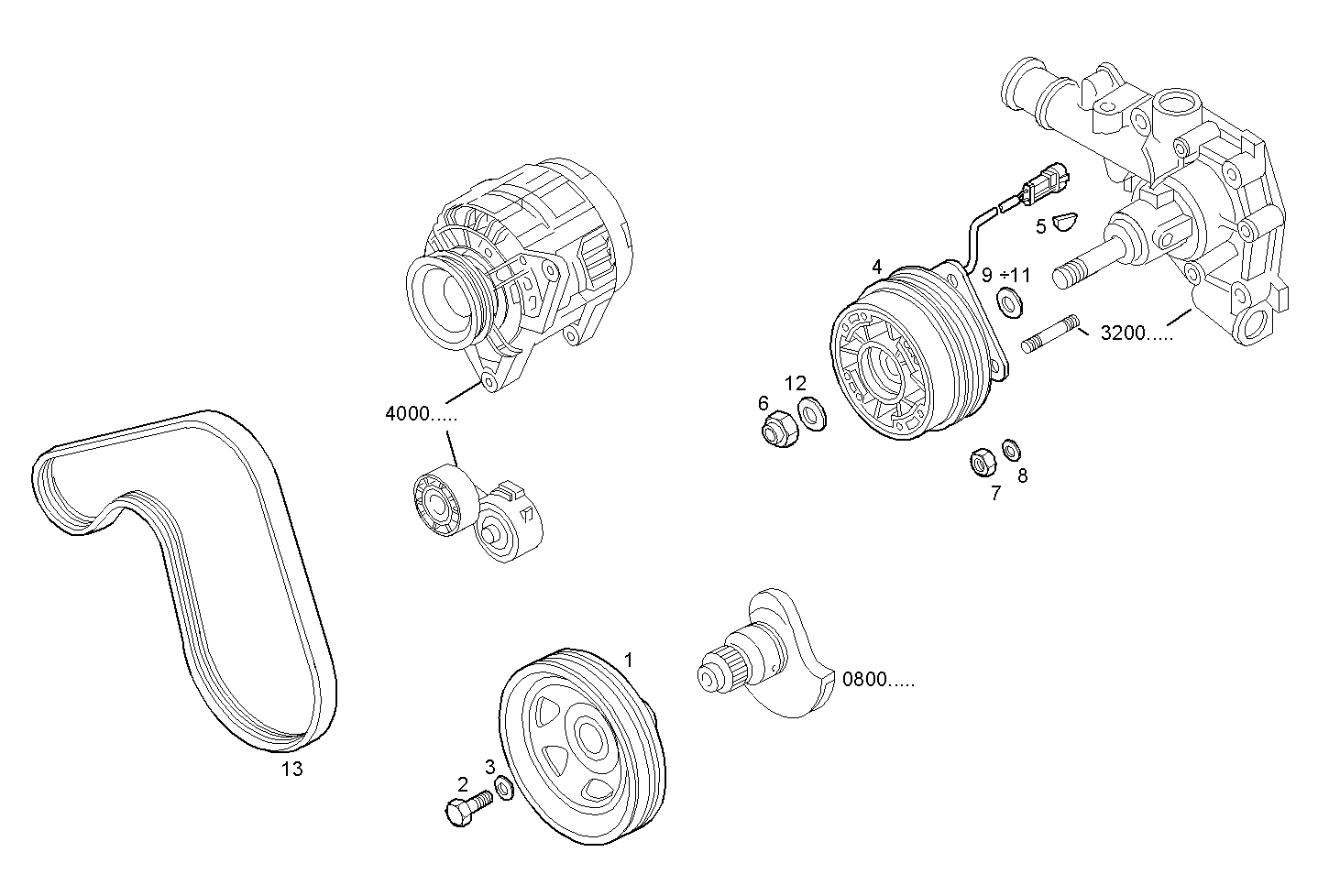

WATER PUMP DRIVE
Assembly ID: 3400.028
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500332296 | CRANKSHAFT PULLEY | 1 | ||
| 2 | 98419203 | SCREW | 1 | ||
| 3 | 500346011 | SPACING BAR | 1 | ||
| 4 | 99473900 | WATER PUMP PULLEY | 1 | ||
| 5 | 10205710 | KEY | 1 | ||
| 6 | 500333918 | HEXAGON NUT | 1 | ||
| 7 | 17037821 | HEXAGON NUT | 4 | ||
| 8 | 17089474 | SPRING WASHER | 4 | ||
| 9 | 98493778 | WASHER | 1 | ||
| 10 | 98437565 | WASHER | 1 | ||
| 11 | 98493779 | WASHER | 1 | ||
| 12 | 17092074 | SPRING WASHER | 1 | ||
| 13 | 500368902 | WATER PUMP BELT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140.43S.4400 | 8140.43 | view |
| 8140SRC30.40A001 | 8140SRC30 | view |
