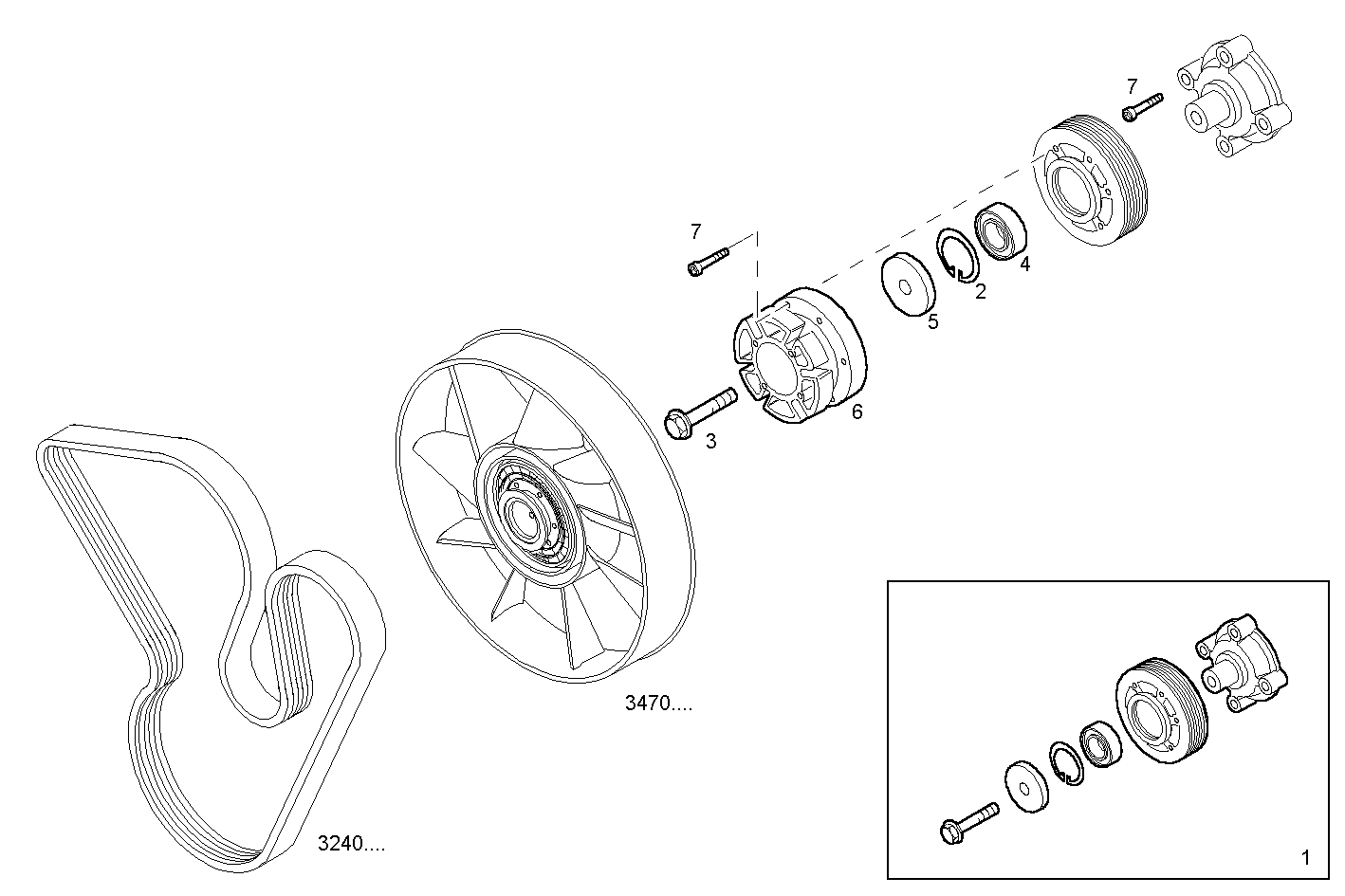

VENTILATOR CONTROL

Assembly ID: 3450.000

VENTILATOR CONTROL

Parts

# Part number Description Note Quantity
1 99469717 SUPPORT 1
2 16874776 CIRCLIP 1
3 16676934 HEXAGON BOLT 1
4 98427607 ENGINE BEARINGS 1
5 99474237 WASHER 1
6 500383488 SPACING BAR 1
7 504010371 CYLIND-HEAD SCREW 10

Applies to engines

Engine Family
C78ENTD20.00 CURSOR 8 - TIER 2 view
F2BE0684B*B131 CURSOR 8 - TIER 2 view
C78ENTE20.00 CURSOR 8 - TIER 2 view
F2BE0687A*B301 CURSOR 8 - TIER 2 view
F2BE0687B*B301 CURSOR 8 - TIER 2 view
F2BE0687C*B301 CURSOR 8 - TIER 2 view
C78ENTE20.00A002 CURSOR 8 - TIER 2 view
C87ENTX20.00A002 CURSOR 9 - TIER 3 view
C78ENTD20.00A800 CURSOR 8 - TIER 2 view
PUC78ENTD20.00A100 CURSOR 8 - TIER 2 view
F2CE9687A*E001 CURSOR 9 - TIER 3 view
F2CE9687B*E001 CURSOR 9 - TIER 3 view
F2CE9687C*E001 CURSOR 9 - TIER 3 view
C87ENTX20.00 CURSOR 9 - TIER 3 view
C87ENTX20.00A800 CURSOR 9 - TIER 3 view
C87ENTX20.00A801 CURSOR 9 - TIER 3 view
C87ENTX20.00A802 CURSOR 9 - TIER 3 view
F2CE9685A*E001 CURSOR 9 - 2002/88/CE - TIER 3 view
C87ENTX60.00 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.R991 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A001 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A002 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR270ED.R990 GECURSOR 9 - 2002/88/CE TIER 3 view
C87ENTX20.00A803 CURSOR 9 - TIER 3 view
CURSOR87TE1D.S550 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A559 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR250ED.R990 GECURSOR 9 - TIER 3 view
GECURSOR250ED.A71M GECURSOR 9 - TIER 3 view
GECURSOR250ED.A551 GECURSOR 9 - TIER 3 view
C87ENTX20.00A003 CURSOR 9 - TIER 3 view
CURSOR87TE1D.A008 CURSOR 9 - 2002/88/CE - TIER 3 view
F2BE0687A*B302 CURSOR 8 - TIER 2 view
C78ENTD20.20 CURSOR 8 - TIER 2 view
