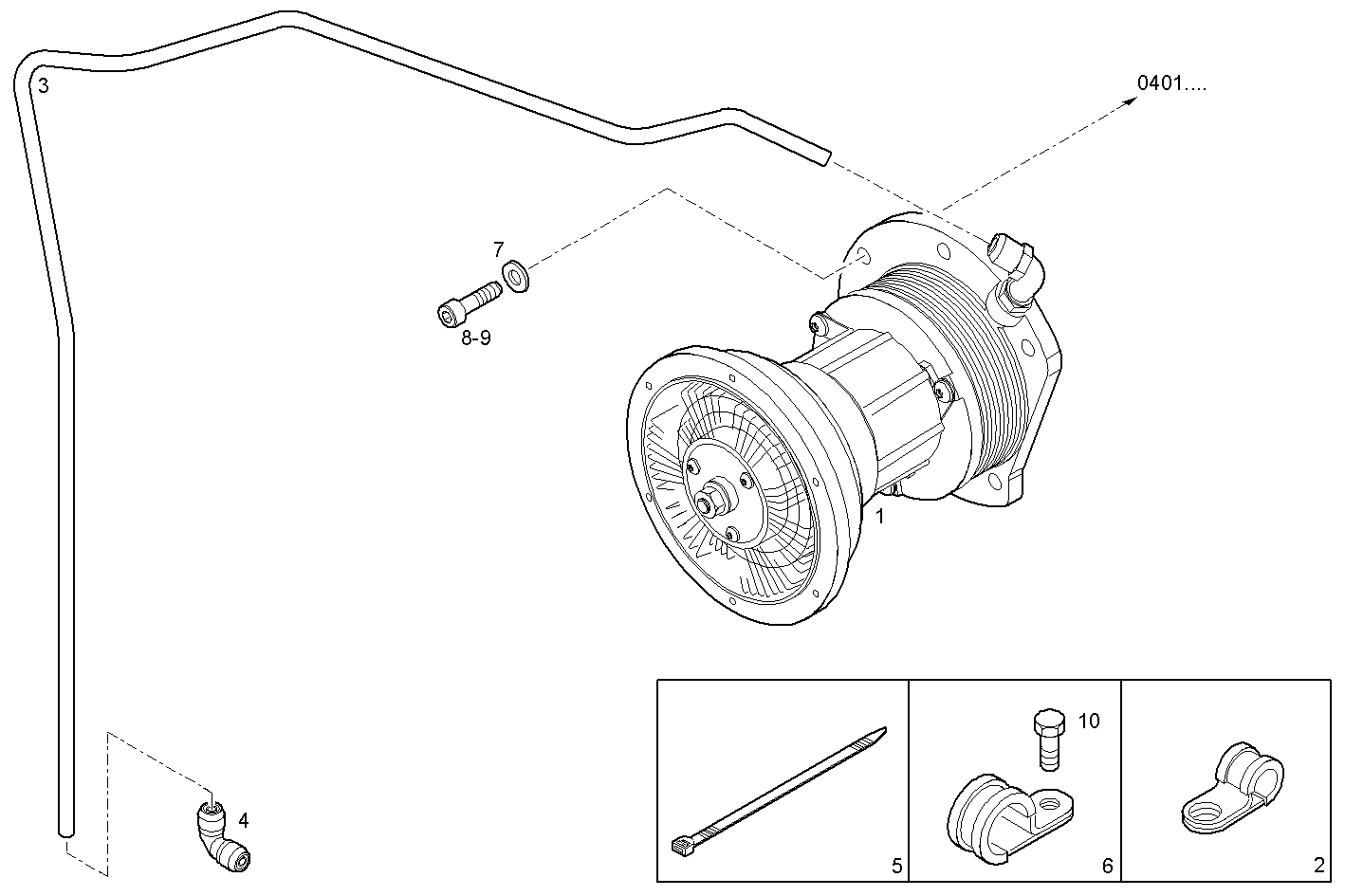

VENTILATOR CONTROL
Assembly ID: 3450.035
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504239357 | VENTILATOR CONTROL | 1 | ||
| 2 | 504036810 | CLIP | 1 | ||
| 3 | 504036103 | PIPE | 1 | ||
| 4 | 98418726 | PIPE SOCKET | 1 | ||
| 5 | 42099097 | CABLE STRAP | 4 | ||
| 6 | 17316592 | PIPE CLIP | 1 | ||
| 7 | 17097224 | WASHER | 4 | ||
| 8 | 16710334 | CYLIND-HEAD SCREW | 4 | ||
| 9 | 16710234 | SOCKET-HEAD SCREW | 1 | ||
| 10 | 16597925 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
