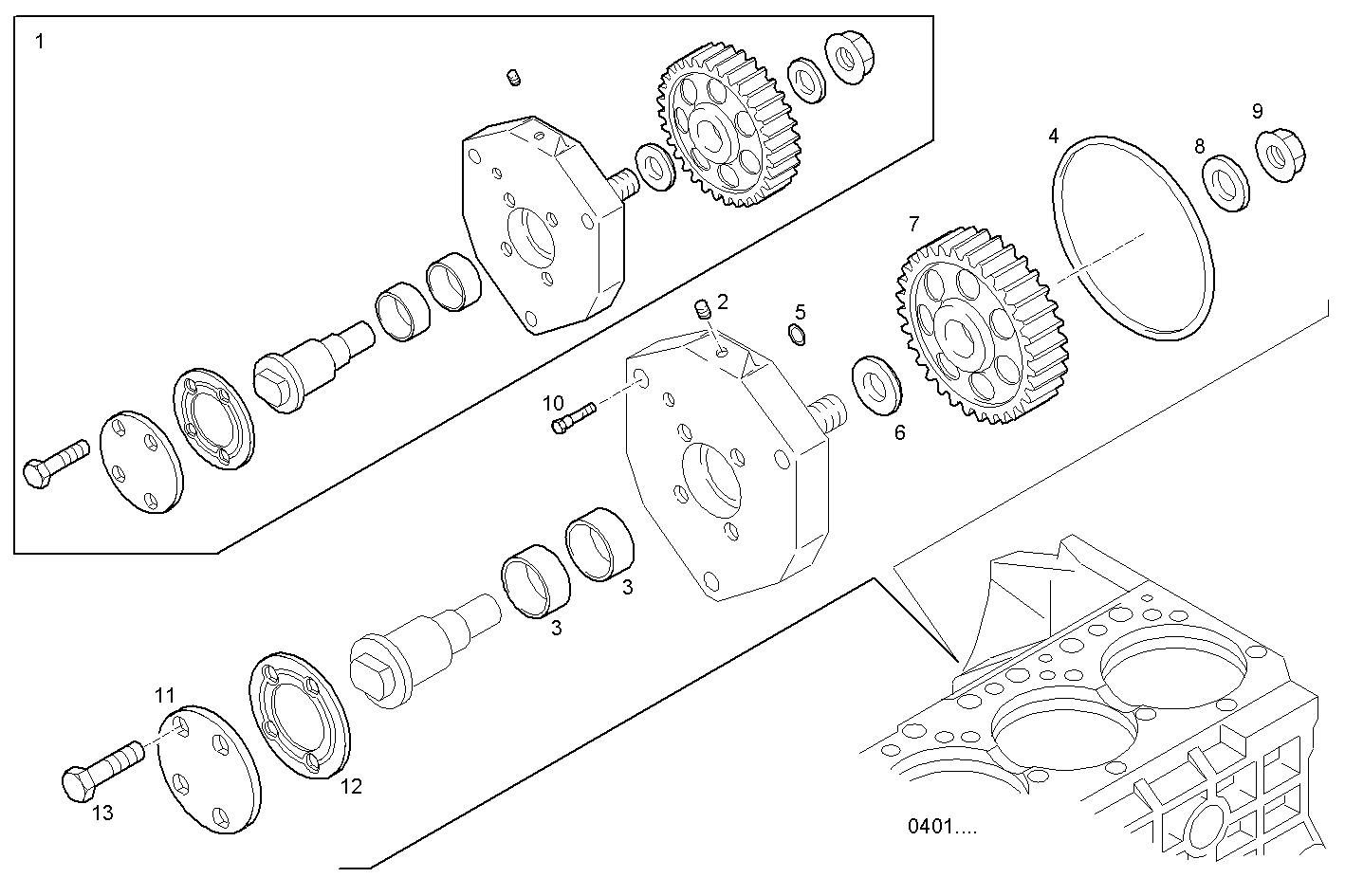

POWER TAKE OFF
Assembly ID: 3500.009
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500354354 | POWER TAKE OFF | 1 | ||
| 2 | 504051236 | THREADED PLUG | 1 | ||
| 3 | 4788087 | BUSH | 2 | ||
| 4 | 17292281 | O-RING | 1 | ||
| 5 | 17281381 | O-RING | 1 | ||
| 6 | 500351319 | WASHER | 1 | ||
| 7 | 500351009 | GEAR | 1 | ||
| 8 | 17096014 | WASHER | 1 | ||
| 9 | 17046231 | NUT | 1 | ||
| 10 | 16678135 | HEXAGON BOLT | 1 | ||
| 11 | 500355019 | COVER | 1 | ||
| 12 | 500355018 | FLAT ENGINE GASKET | 1 | ||
| 13 | 18139424 | HEXAGON BOLT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTF40.00 | CURSOR 8 - TIER 2 | view |
| C78ENTF41.00 | CURSOR 8 - TIER 2 | view |
