POWER TAKE OFF

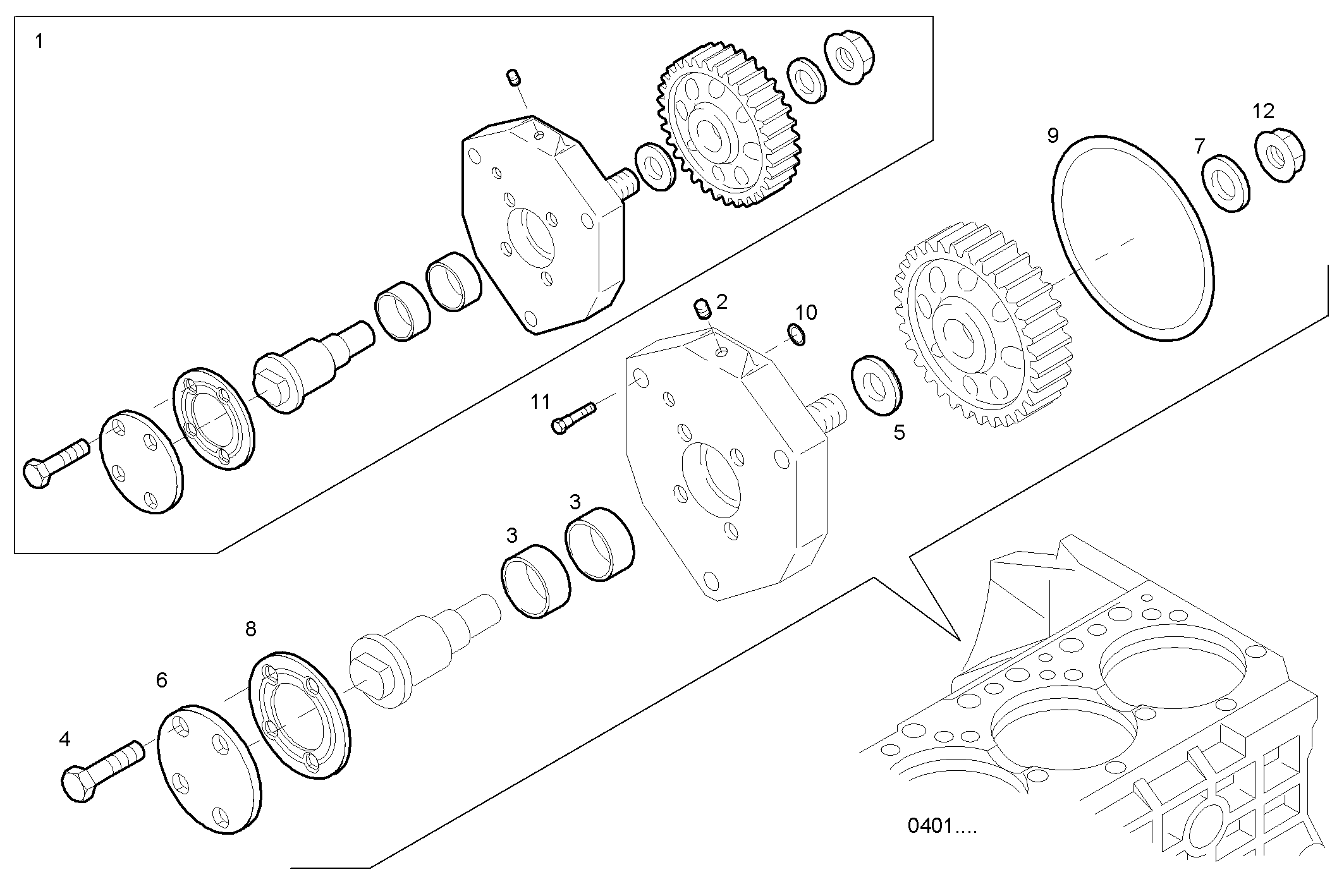

Assembly ID: 3500.035

POWER TAKE OFF

Parts

# Part number Description Note Quantity
1 500382578 POWER TAKE OFF 1
2 504051236 THREADED PLUG 1
3 4788087 BUSH 2
4 18139424 HEXAGON BOLT 4
5 500351319 WASHER 1
6 500355019 COVER 1
7 500382574 WASHER 1
8 500355018 FLAT ENGINE GASKET 1
9 17292281 O-RING 1
10 17281381 O-RING 1
11 16678135 HEXAGON BOLT 3
12 17046231 NUT 1

Applies to engines

Engine Family
F3AE0687A*B301 CURSOR 10 - TIER 2 view
C10ENTE20.00 CURSOR 10 - TIER 2 view
C10ENTD20.00 CURSOR 10 - TIER 2 view
F3BE0684A*B002 CURSOR 13 - TIER 2 view
F3BE0684E*B003 CURSOR 13 - TIER 2 view
F3BE0687A*B301 CURSOR 13 - TIER 2 view
C13ENTD20.00 CURSOR 13 - TIER 2 view
F3AE0684G*B001 CURSOR 10 - TIER 2 view
F3BE0684A*B001 CURSOR 13 - TIER 2 view
F3AE0684D*B001 CURSOR 10 - TIER 2 view
F3AE0684E*B002 CURSOR 10 - TIER 2 view
F3BE0684E*B001 CURSOR 13 - TIER 2 view
F3AE0684J*B901 CURSOR 10 - TIER 2 view
F3AE0684J*B902 CURSOR 10 - TIER 2 view
F3AE0684M*B903 CURSOR 10 - TIER 2 view
F3AE0684G*B003 CURSOR 10 - TIER 2 view
F3AE0684G*B004 CURSOR 10 - TIER 2 view
F3AE0684E*B006 CURSOR 10 - TIER 2 view
C13ENTE20.00 CURSOR 13 - TIER 2 view
F3AE0684D*B003 CURSOR 10 - TIER 2 view
GECURSOR400ES.R990 GECURSOR 13 - 2002/88/CE view
F3AE0684D*B005 CURSOR 10 - TIER 2 view
F3AE0684D*B006 CURSOR 10 - TIER 2 view
F3AE0684G*B005 CURSOR 10 - TIER 2 view
F3BE0685A*B001 CURSOR 13 - TIER 2 view
C13ENTE60.00 CURSOR 13 - TIER 2 view
GECURSOR400E.R990 GECURSOR 13 - TIER 2 view
CURSOR13TE3.A003 CURSOR 13 - TIER 2 view
C13ENTE61.00 CURSOR 13 - TIER 2 view
C13ENTE62.00 CURSOR 13 - TIER 2 view
CURSOR13TE2.A001 CURSOR 13 - TIER 2 view
CURSOR13TE2.A002 CURSOR 13 - TIER 2 view
C13ENTD20.00A800 CURSOR 13 - TIER 2 view
CURSOR13TE3.A001 CURSOR 13 - TIER 2 view
CURSOR13TE3.A002 CURSOR 13 - TIER 2 view
CURSOR13TE1.A001 CURSOR 13 - TIER 2 view
CURSOR13TE1.A002 CURSOR 13 - TIER 2 view
GECURSOR300E.R990 GECURSOR 13 - TIER 2 view
GECURSOR350E.R990 GECURSOR 13 - TIER 2 view
C13ENTI20.00 CURSOR 13 - TIER 2 view
C13ENTI20.00A100 CURSOR 13 - TIER 2 view
F3AE0684P*E904 CURSOR 10 - TIER 3 view
C10ENTD20.00A800 CURSOR 10 - TIER 2 view
CURSOR13TE1.A003 CURSOR 13 - TIER 2 view
F3AE0684P*E905 CURSOR 10 - TIER 3 view
F3AE0684P*E906 CURSOR 10 - TIER 3 view
F3AE0684L*E906 CURSOR 10 - TIER 3 view
F3BE9685A*E001 CURSOR 13 - TIER 3 view
C13ENTX60.00 CURSOR 13 - TIER 3 view
C13ENTX61.00 CURSOR 13 - TIER 3 view
C13ENTX62.00 CURSOR 13 - TIER 3 view
CURSOR13TE1.A559 CURSOR 13 - TIER 2 view
GECURSOR300E.A551 GECURSOR 13 - TIER 2 view
GECURSOR300E.A71M GECURSOR 13 - TIER 2 view
CURSOR13TE2.A559 CURSOR 13 - TIER 2 view
GECURSOR350E.A551 GECURSOR 13 - TIER 2 view
GECURSOR350E.A71M GECURSOR 13 - TIER 2 view
CURSOR13TE3.A559 CURSOR 13 - TIER 2 view
GECURSOR400E.A551 GECURSOR 13 - TIER 2 view
GECURSOR400E.A71M GECURSOR 13 - TIER 2 view
F3AE9687A*E001 CURSOR 10 - TIER 3 view
C10ENTX20.00 CURSOR 10 - TIER 3 view
C10ENTX20.00A800 CURSOR 10 - TIER 3 view
C10ENTX20.00A801 CURSOR 10 - TIER 3 view
F3AE9687B*E001 CURSOR 10 - TIER 3 view
F3AE9687C*E001 CURSOR 10 - TIER 3 view
CURSOR13TE3X.R991 CURSOR 13 - TIER 3 view
F3BE9687A*E001 CURSOR 13 - TIER 3 view
F3AE0684N*E907 CURSOR 10 - TIER 3 view
C13ENSM33.30 CURSOR 13 view
C13ENTX20.00 CURSOR 13 - TIER 3 view
C13ENTX20.00A800 CURSOR 13 - TIER 3 view
C13ENTX20.00A801 CURSOR 13 - TIER 3 view
F3BE0684J*E902 CURSOR 13 - TIER 3 view
C13ENTX20.00A802 CURSOR 13 - TIER 3 view
F3CE0684A*E001 CURSOR 13 TCD - TIER 3 view
F3AE0684S*E908 CURSOR 10 - TIER 3 view
F3BE0684N*E904 CURSOR 13 - TIER 3 view
F3BE0684Q*E901 CURSOR 13 - TIER 3 view
F3BE0684R*E901 CURSOR 13 - TIER 3 view
C10ENTX20.00A802 CURSOR 10 - TIER 3 view
F3BE0684N*E903 CURSOR 13 - TIER 3 view
PUC13ENTD20.00 CURSOR 13 - TIER 2 view
PUC13ENTD20.00A100 CURSOR 13 - TIER 2 view
PUC10ENTD20.00A100 CURSOR 10 - TIER 2 view
GECURSOR350ES.R990 GECURSOR 13 - 2002/88/CE view
GECURSOR350ES.A71M GECURSOR 13 - 2002/88/CE view
GECURSOR350ES.A551 GECURSOR 13 - 2002/88/CE view
GECURSOR350ES.A001 GECURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A559 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A004 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A001 CURSOR 13 - 2002/88/CE view
F3CE0684C*E002 CURSOR 13 TCD - TIER 3 view
CURSOR13TE3S.A001 CURSOR 13 - 2002/88/CE view
F3BE0684Q*E905 CURSOR 13 - TIER 3 view
F3BE0684R*E905 CURSOR 13 - TIER 3 view
F3AE0684K*E905 CURSOR 10 - TIER 3 view
F3AE0684K*E904 CURSOR 10 - TIER 3 view
F3CE0684E*E004 CURSOR 13 TCD - TIER 3 view
CURSOR13TE3X.A001 CURSOR 13 - TIER 3 view
CURSOR13TE2S.S550 CURSOR 13 - 2002/88/CE view
CURSOR13TE3S.S550 CURSOR 13 - 2002/88/CE view
F3AE0687A*B302 CURSOR 10 - TIER 2 view
C10ENTD20.20 CURSOR 10 - TIER 2 view
F3BE0687A*B302 CURSOR 13 - TIER 2 view
C13ENTD20.20 CURSOR 13 - TIER 2 view
F3BE0684N*E906 CURSOR 13 - TIER 3 view
F3AE0684P*E909 CURSOR 10 - TIER 3 view
CURSOR13TE3X.A008 CURSOR 13 - TIER 3 view
GECURSOR300E.A001 GECURSOR 13 - TIER 2 view
GECURSOR350E.A001 GECURSOR 13 - TIER 2 view
GECURSOR400E.A001 GECURSOR 13 - TIER 2 view
CURSOR13TE2.A003 CURSOR 13 - TIER 2 view
CURSOR13TE3S.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE3X.A011 CURSOR 13 - TIER 3 view
PUC13ENTD20.20A100 CURSOR 13 - TIER 2 view
CURSOR13TE3S.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE3S.S550 CURSOR 13 - 2002/88/CE view
CURSOR13TE3S.A559 CURSOR 13 - 2002/88/CE view
F3BE0684Q*E902 CURSOR 13 - TIER 3 view
