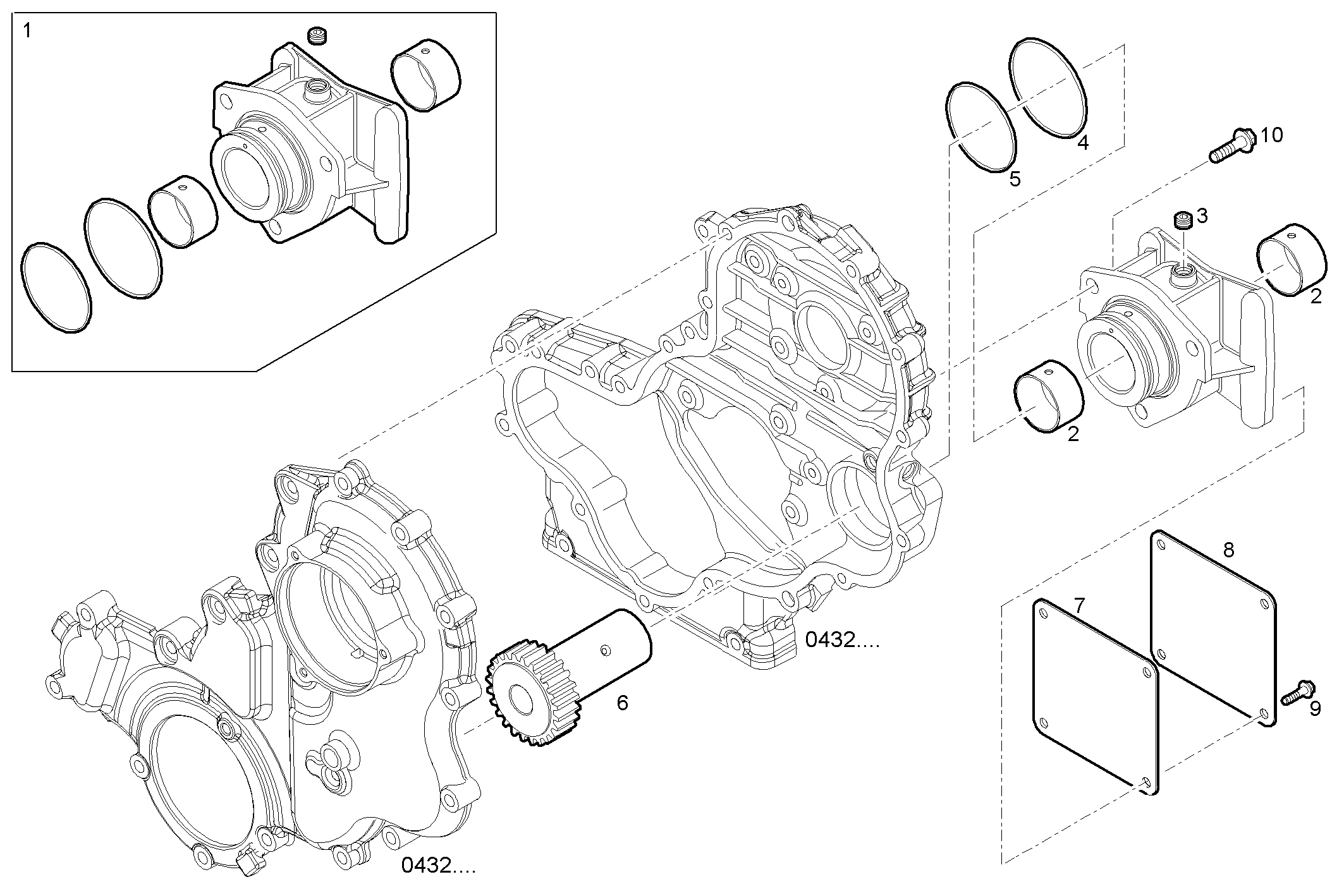

POWER TAKE OFF
Assembly ID: 3500.069
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504213227 | POWER TAKE OFF | 1 | ||
| 2 | 504184238 | BUSH | 2 | ||
| 3 | 504051236 | THREADED PLUG | 1 | ||
| 4 | 17290481 | O-RING | 1 | ||
| 5 | 17284781 | O-RING | 1 | ||
| 6 | 504240430 | POWER TAKE OFF SHAFT | 1 | ||
| 7 | 504320425 | FLAT ENGINE GASKET | 1 | ||
| 8 | 504071685 | PTO COVER | 1 | ||
| 9 | 16600224 | HEXAGON BOLT | 4 | ||
| 10 | 16675835 | HEXAGON BOLT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F5AE9484A*A001 | F5A mechanic. - TIER 3 | view |
| F5AE9484B*A001 | F5A mechanic. - TIER 3 | view |
| F5AE9484G*A004 | F5A mechanic. - TIER 3 | view |
| F5AE9484G*A006 | F5A mechanic. - TIER 3 | view |
| F5AE9484A*A004 | F5A mechanic. - TIER 3 | view |
| F5AE9484B*A005 | F5A mechanic. - TIER 3 | view |
| F5AE9484G*A008 | F5A mechanic. - TIER 3 | view |
| F5AE9484G*A007 | F5A mechanic. - TIER 3 | view |
| F5AE9484B*A004 | F5A mechanic. - TIER 3 | view |
| F5AE9454H*A002 | F5A mechanic. - TIER 3 | view |
