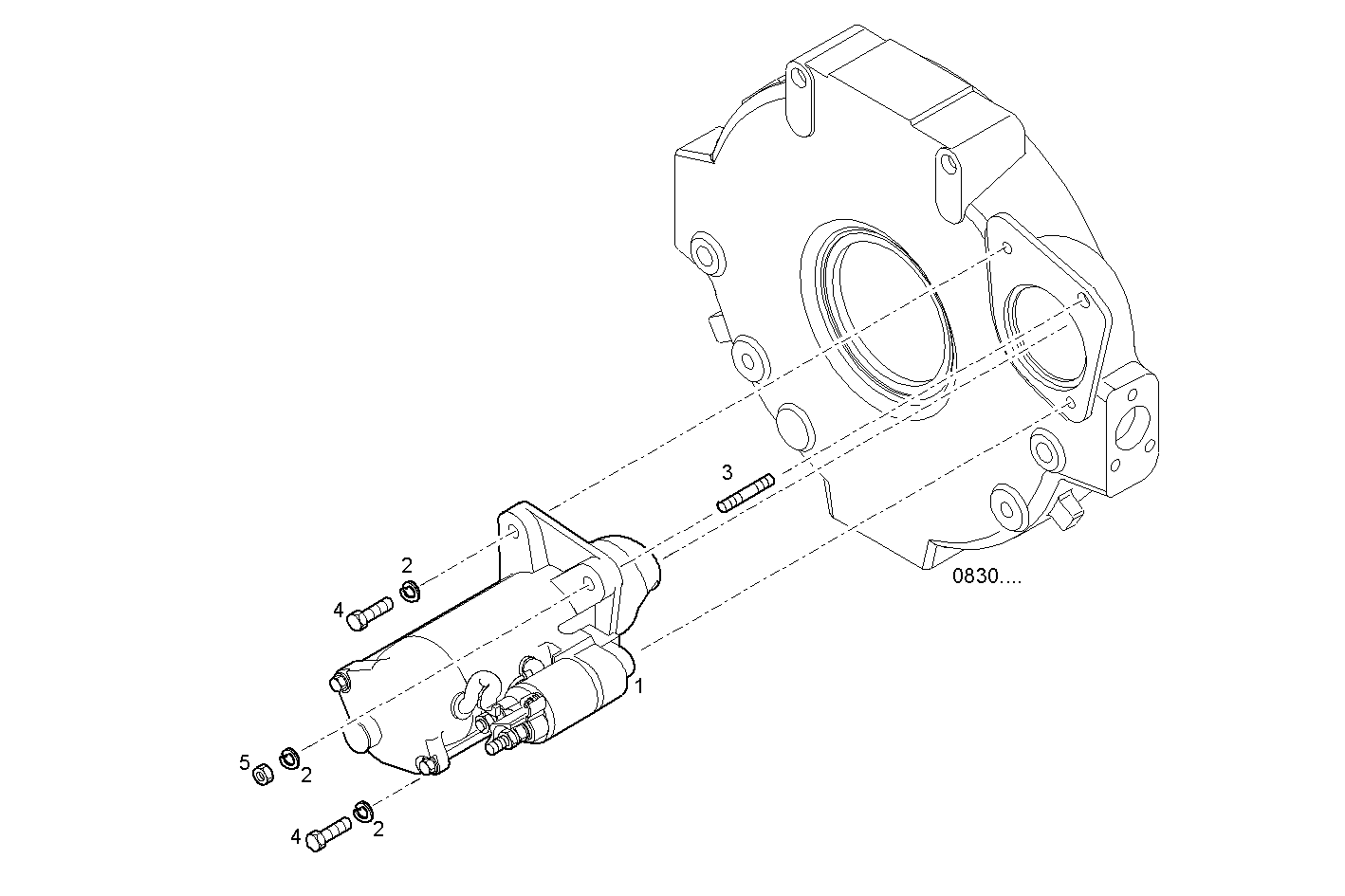

STARTER MOTOR
Assembly ID: 3600.006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504201467 | STARTER MOTOR | 1 | ||
| 2 | 17089474 | SPRING WASHER | 3 | ||
| 3 | 16747024 | STUD | 1 | ||
| 4 | 16605934 | HEXAGON BOLT | 2 | ||
| 5 | 17037925 | HEXAGON NUT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| S30ENT422.80A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A003 | SOFIM HPI 3.0L - EURO 4 | view |
