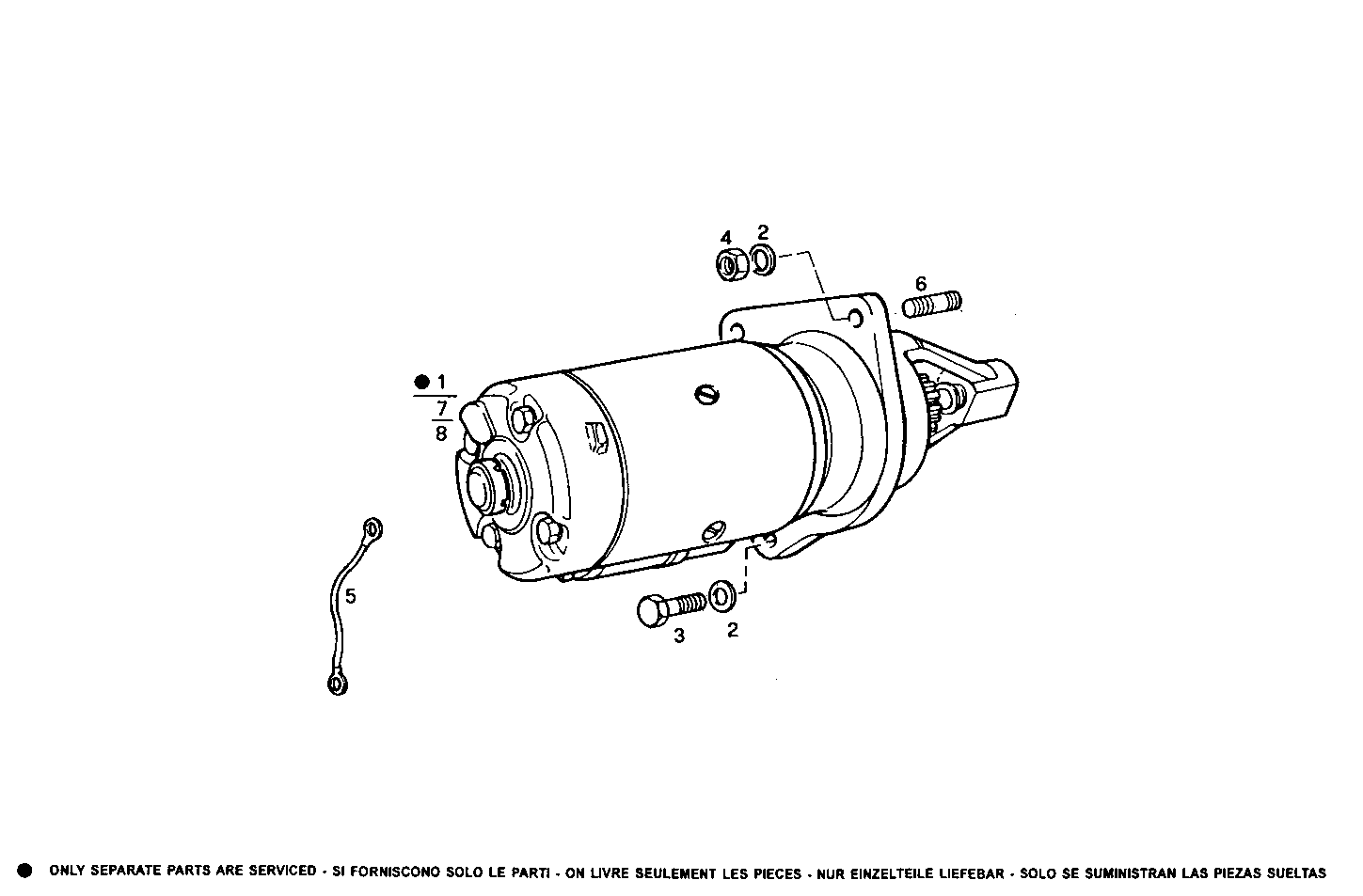

STARTER MOTOR
Assembly ID: 3600.008
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4755109 | STARTER MOTOR | 1 | ||
| 2 | 17090174 | SPRING WASHER | 3 | ||
| 3 | 11306921 | SCREW | 1 | ||
| 4 | 17038221 | HEXAGON NUT | 2 | ||
| 5 | 8112528 | EARTH WIRE | 1 | ||
| 6 | 13449521 | STUD | 2 | ||
| 7 | 4807375 | STARTER MOTOR | 1 | ||
| 8 | 500338952 | STARTER MOTOR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM25.10 | 8061SRM25 | view |
| 8061SRM30.10 | 8061SRM30 | view |
| 8061SM20.30 | 8061SM20 | view |
| 8061SM20.12 | 8061SM20 | view |
| 8061SM20.32 | 8061SM20 | view |
| 8061SRM25.12 | 8061SRM25 | view |
| 8061SRM33.10 | 8061SRM33 | view |
| 8061SM16.11 | 8061SM16 | view |
| 8061SRM25.13 | 8061SRM25 | view |
| 8061SRM25.33 | 8061SRM25 | view |
| 8061SRM33.12 | 8061SRM33 | view |
