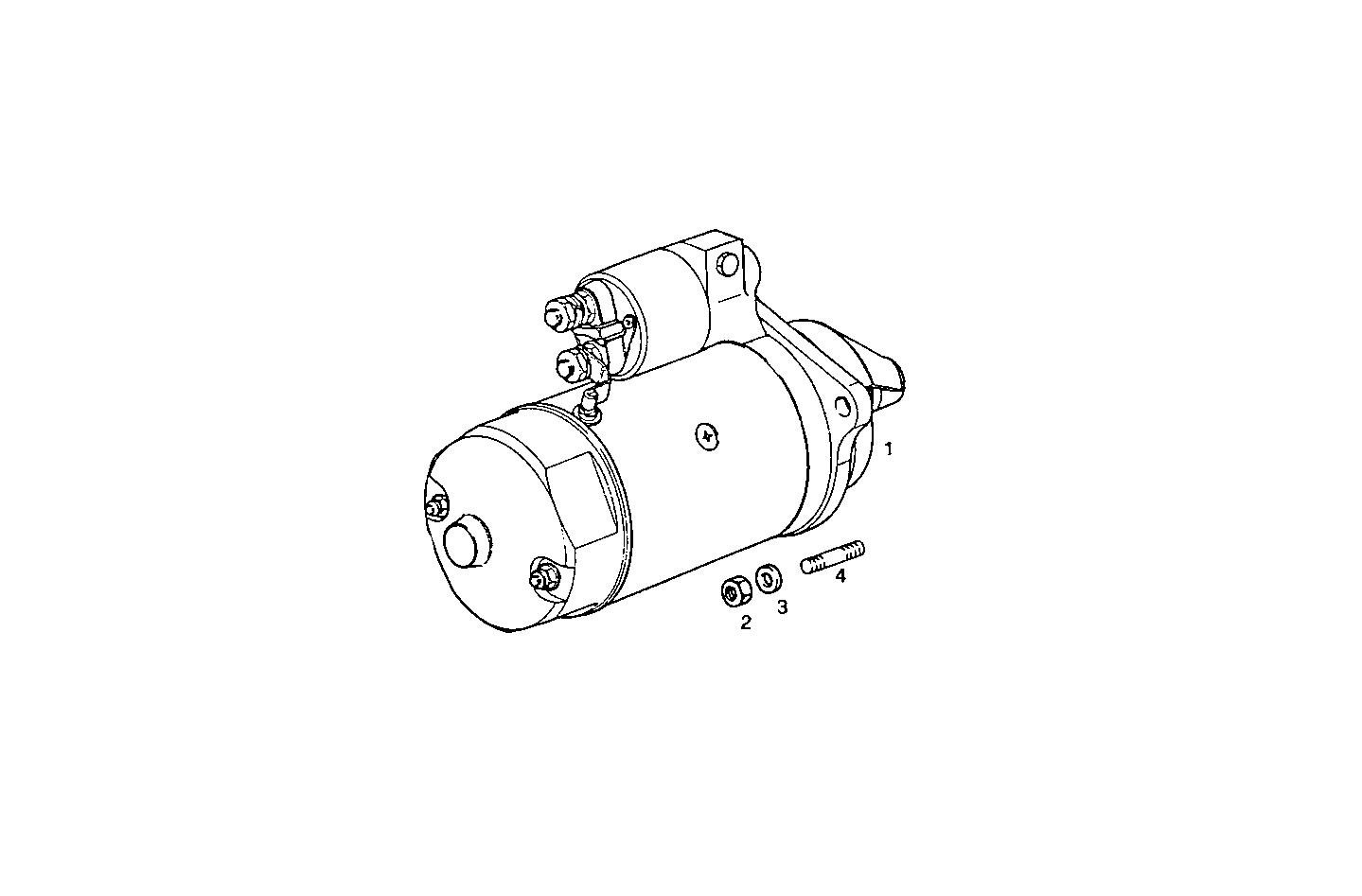

STARTER MOTOR
Assembly ID: 3600.016
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4728682 | STARTER MOTOR | 1 | ||
| 2 | 17038221 | HEXAGON NUT | 3 | ||
| 3 | 17090174 | SPRING WASHER | 3 | ||
| 4 | 13546321 | STUD | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SRM15.10 | 8140SRM15 | view |
| 8140SRM15.11 | 8140SRM15 | view |
