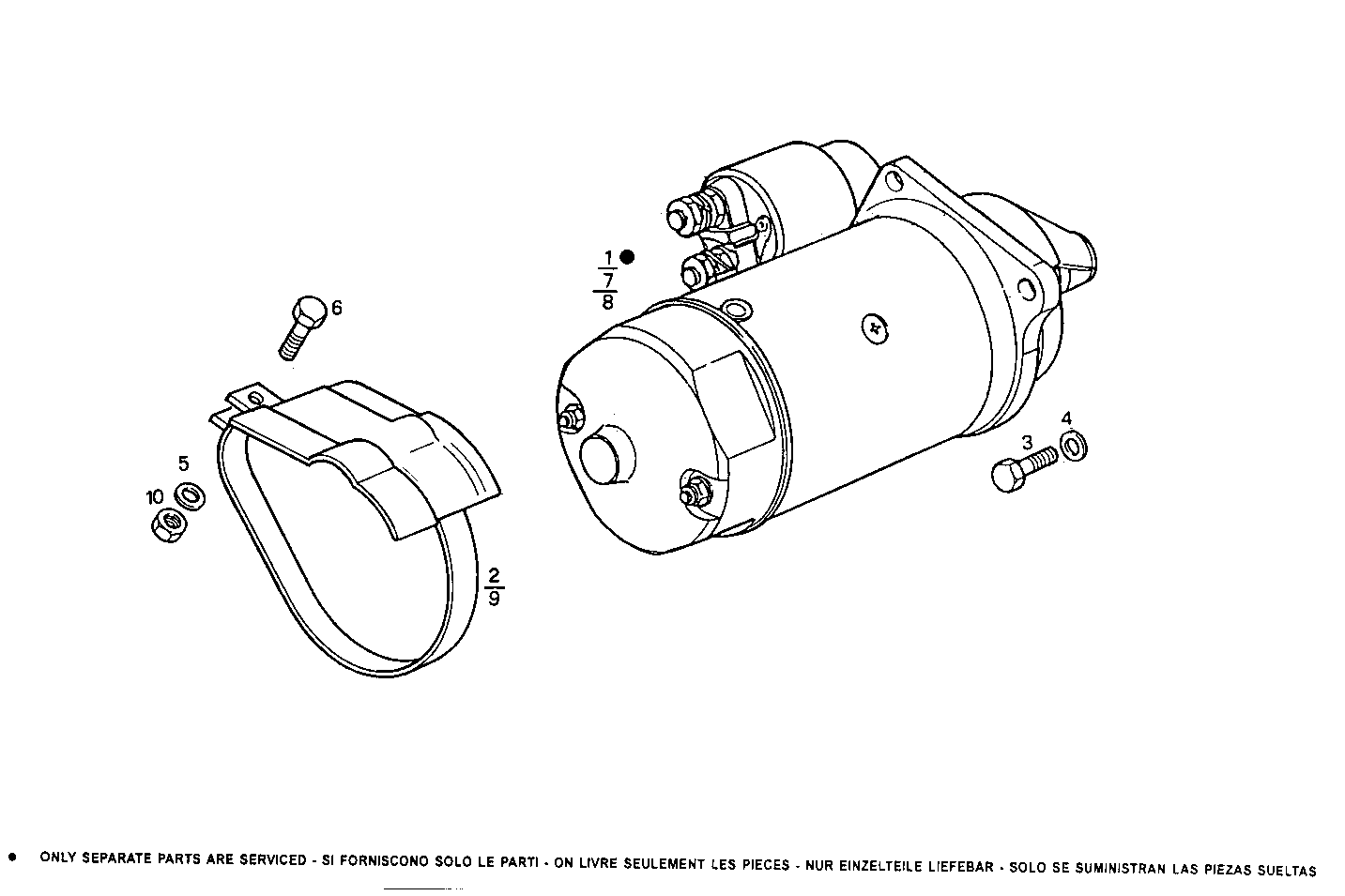

STARTER MOTOR
Assembly ID: 3600.024
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4755108 | STARTER MOTOR | 1 | ||
| 2 | 4721863 | PROTECTION | 1 | ||
| 3 | 11306921 | SCREW | 3 | ||
| 4 | 17090174 | SPRING WASHER | 3 | ||
| 5 | 17088474 | WASHER | 1 | ||
| 6 | 16604124 | HEXAGON BOLT | 1 | ||
| 7 | 4807378 | STARTER MOTOR | 1 | ||
| 8 | 500325185 | STARTER MOTOR | 1 | ||
| 9 | 500398382 | PROTECTION | 1 | ||
| 10 | 17037821 | HEXAGON NUT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8061SRi25.05A955 | GE8061SRi25 | view |
| GS8061SRi25.05 | GS8061SRi25 | view |
| GS8061SRi25.05A060 | GS8061SRi25 | view |
| GS8061SRi25.05A066 | GS8061SRi25 | view |
| GS8061SRi25.05A601 | GS8061SRi25 | view |
| GS8061SRi25.05A602 | GS8061SRi25 | view |
| GS8061SRi25.05A603 | GS8061SRi25 | view |
| GS8061SRi25.05A651 | GS8061SRi25 | view |
| GS8061SRi25.05A652 | GS8061SRi25 | view |
| GS8061SRi25.05A653 | GS8061SRi25 | view |
| 8061SRi25.00 | 8061SRi25 | view |
| 8061SRi25.05 | 8061SRi25 | view |
| 8061SRi25.05A550 | 8061SRi25 | view |
| 8061SRi25.05A580 | 8061SRi25 | view |
| 8061SRi25.05A560 | 8061SRi25 | view |
