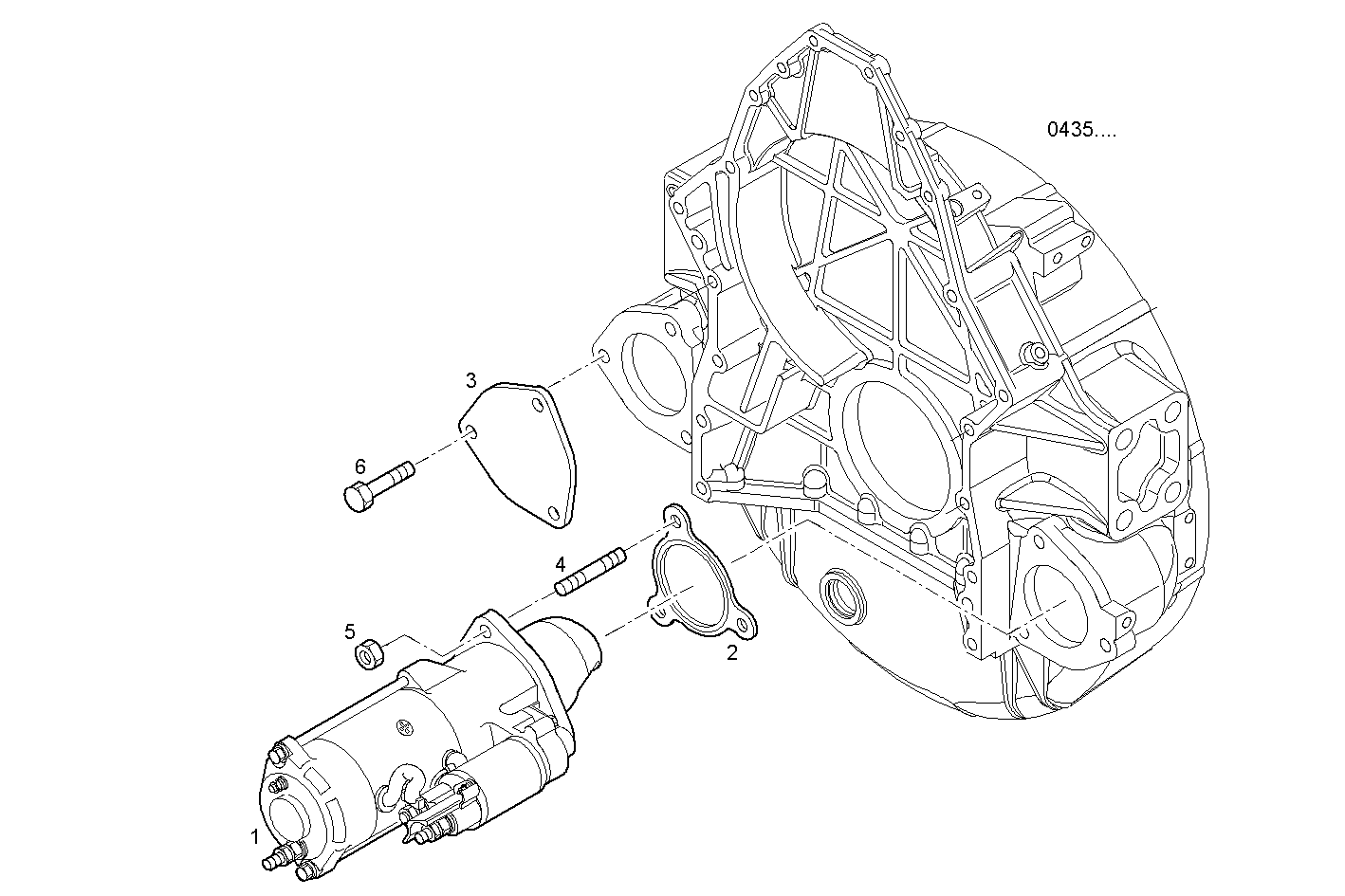

STARTER MOTOR
Assembly ID: 3600.147
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504071148 | STARTER MOTOR | 1 | ||
| 2 | 504052268 | FLAT ENGINE GASKET | 1 | ||
| 3 | 504064322 | COVER | 1 | ||
| 4 | 16760524 | STUD | 3 | ||
| 5 | 17044921 | HEXAGON NUT | 3 | ||
| 6 | 16677735 | HEXAGON BOLT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| FVAE2884A*B200 | VECTOR 8 | view |
| FVAE2884A*B201 | VECTOR 8 | view |
