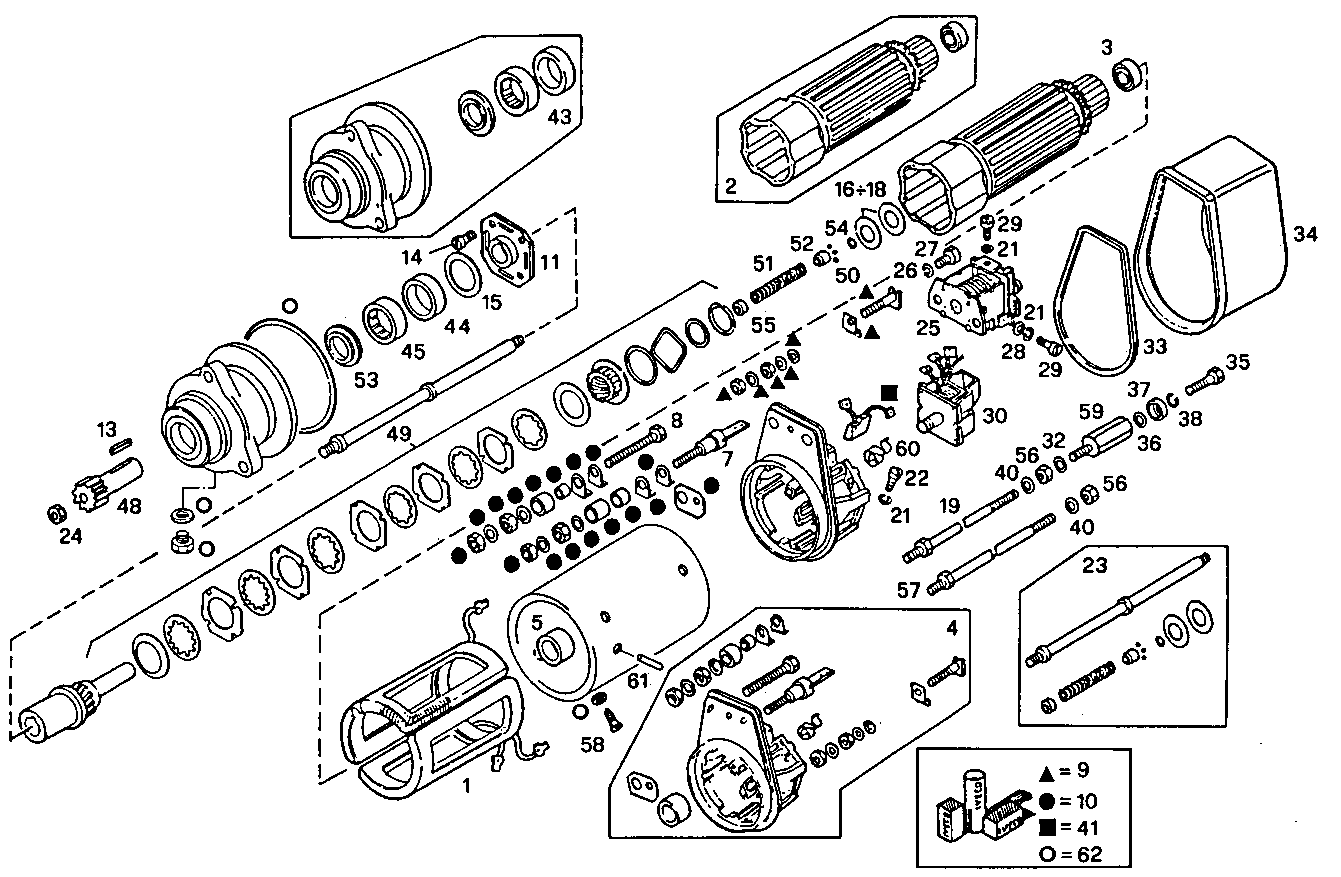

STARTER MOTOR (COMPONENTS)

Assembly ID: 3630.006

STARTER MOTOR (COMPONENTS)

Parts

# Part number Description Note Quantity
1 8198726 STARTER WINDING 1
2 8121267 STARTER ARMATURE 1
3 1905092 ENGINE BEARINGS 1
4 8122759 STARTER SUPPORT 1
5 79052278 BUSH 1
7 8123626 SPRING CONTACT 1
8 9920668 SCREW 1
9 1306445 KIT-STARTER 1
10 79052281 KIT-STARTER 2
11 9920338 FLANGE 1
13 1117970 KEY 1
14 79052237 SCREW 4
15 79052239 RING 1
16 79052250 SHIM 1
17 1289919 SHIM 1
18 1289920 WASHER 1
19 9934324 STUD 1
21 17494634 SPRING WASHER 8
22 79052258 CUTTING SCREW 2
23 8121268 SHAFT 1
24 79052233 NUT 1
25 79052269 STARTER SOLENOID 1
26 10516673 SPRING WASHER 1
27 79052267 SCREW 2
28 9920401 WASHER 3
29 79028449 SCREW 6
30 79052266 STARTER SOLENOID 1
32 9920379 WASHER 2
33 79052256 WASHER 1
34 79076024 COVER 1
35 14305721 SCREW 1
36 1289929 GASKET 2
37 79052265 BUSH 2
38 1102797 SPRING LOCKWASHER 2
40 1124654 WASHER 4
41 79052257 KIT-STARTER 1
43 9930441 STARTER SUPPORT 1
44 79052271 BUSH 1
45 1905095 ENGINE BEARINGS 1
48 93160544 STARTER PINION 1
49 79052241 SHAFT 1
50 79052247 BALL 11
51 79052245 SPRING 1
52 79052246 RING 1
53 79052272 GASKET 1
54 9920367 CIRCLIP 1
55 79052244 RING 1
56 15896221 HEXAGON NUT 1
57 8123714 STUD 3
58 42489183 SCREW 8
59 79052263 PIN 2
60 1290139 SPRING 4
61 79052252 PIN 1
62 79052274 KIT-STARTER 1
