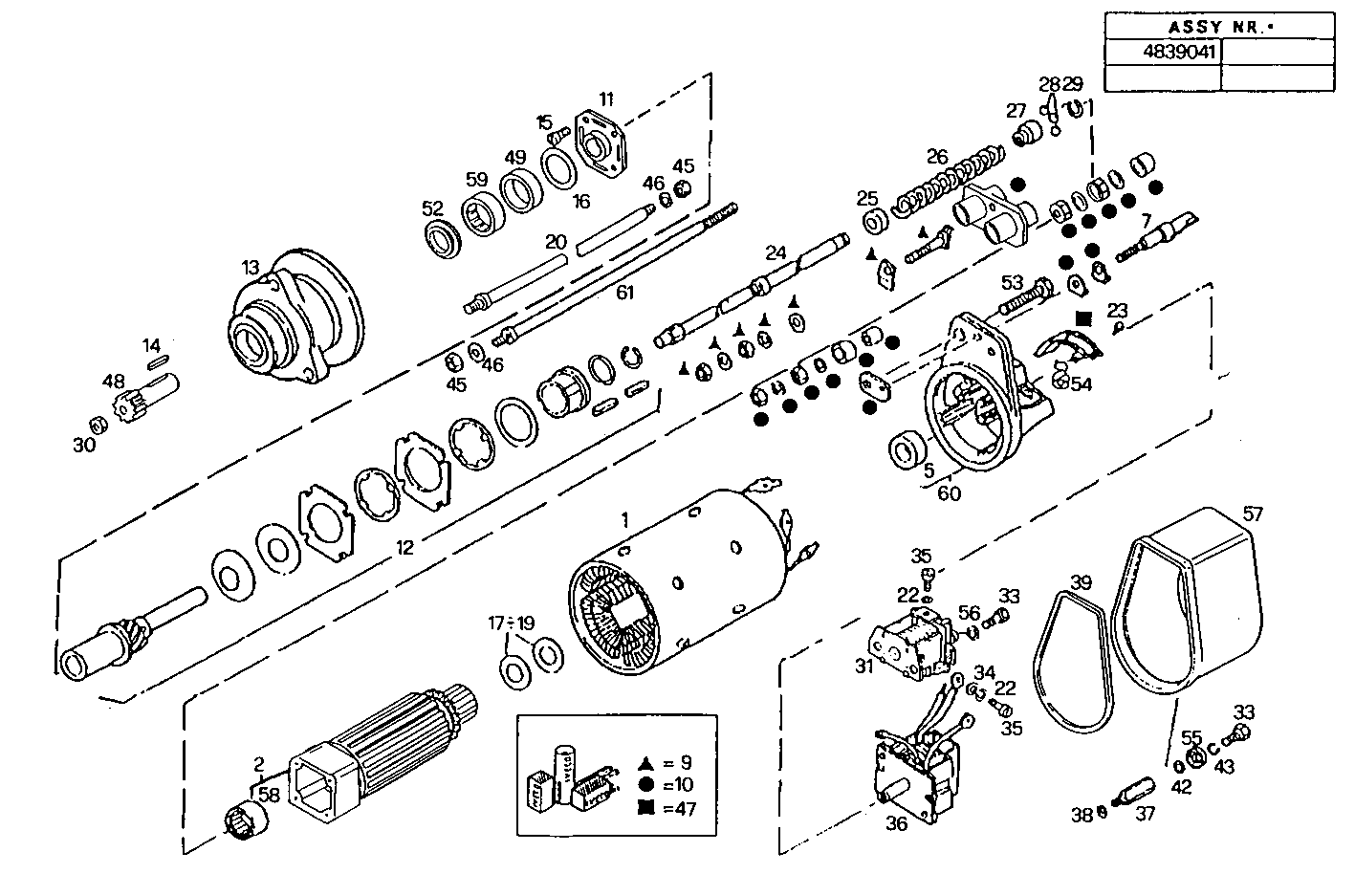

| 1 |
8198726
|
STARTER WINDING
|
|
1
|
|
| 2 |
8121267
|
STARTER ARMATURE
|
|
1
|
|
| 5 |
79052278
|
BUSH
|
|
1
|
|
| 7 |
93190959
|
SCREW
|
|
1
|
|
| 9 |
1306445
|
KIT-STARTER
|
|
1
|
|
| 10 |
79052281
|
KIT-STARTER
|
|
2
|
|
| 11 |
9920338
|
FLANGE
|
|
1
|
|
| 12 |
79052241
|
SHAFT
|
|
1
|
|
| 13 |
93192798
|
STARTER SUPPORT
|
|
1
|
|
| 14 |
1117970
|
KEY
|
|
1
|
|
| 15 |
79052237
|
SCREW
|
|
4
|
|
| 16 |
79052239
|
RING
|
|
1
|
|
| 17 |
79052250
|
SHIM
|
|
1
|
|
| 18 |
1289919
|
SHIM
|
|
1
|
|
| 19 |
1289920
|
WASHER
|
|
1
|
|
| 20 |
1307226
|
STUD
|
|
1
|
|
| 22 |
17494634
|
SPRING WASHER
|
|
1
|
|
| 23 |
79052258
|
CUTTING SCREW
|
|
2
|
|
| 24 |
8121268
|
SHAFT
|
|
1
|
|
| 25 |
79052244
|
RING
|
|
1
|
|
| 26 |
79052245
|
SPRING
|
|
1
|
|
| 27 |
79052246
|
RING
|
|
1
|
|
| 28 |
79052247
|
BALL
|
|
1
|
|
| 29 |
9920367
|
CIRCLIP
|
|
1
|
|
| 30 |
93190269
|
NUT
|
|
1
|
|
| 31 |
79052269
|
STARTER SOLENOID
|
|
1
|
|
| 33 |
93163744
|
SCREW
|
|
2
|
|
| 34 |
93159935
|
WASHER
|
|
3
|
|
| 35 |
79028449
|
SCREW
|
|
6
|
|
| 36 |
79052266
|
STARTER SOLENOID
|
|
1
|
|
| 37 |
79052263
|
PIN
|
|
2
|
|
| 38 |
9920379
|
WASHER
|
|
2
|
|
| 39 |
9920382
|
GASKET
|
|
1
|
|
| 41 |
10376621
|
SCREW
|
|
2
|
|
| 42 |
1289929
|
GASKET
|
|
2
|
|
| 43 |
79052265
|
BUSH
|
|
2
|
|
| 45 |
17037821
|
HEXAGON NUT
|
|
1
|
|
| 46 |
17094604
|
WASHER
|
|
4
|
|
| 47 |
79052257
|
KIT-STARTER
|
|
1
|
|
| 48 |
93160544
|
STARTER PINION
|
|
1
|
|
| 49 |
79052271
|
BUSH
|
|
1
|
|
| 52 |
79052272
|
GASKET
|
|
1
|
|
| 53 |
9920668
|
SCREW
|
|
1
|
|
| 54 |
1290139
|
SPRING
|
|
4
|
|
| 55 |
93160617
|
SPRING WASHER
|
|
1
|
|
| 56 |
10516673
|
SPRING WASHER
|
|
1
|
|
|
17798274 |
SPRING WASHER |
|
1 |
|
| 57 |
93190960
|
COVER
|
|
1
|
|
| 58 |
1905092
|
ENGINE BEARINGS
|
|
1
|
|
|
8868914 |
ENGINE BEARINGS |
|
1 |
|
| 59 |
1905095
|
ENGINE BEARINGS
|
|
1
|
|
| 60 |
93190958
|
STARTER SUPPORT
|
|
1
|
|
|
42531215 |
STARTER SUPPORT |
|
1 |
|
| 61 |
8123714
|
STUD
|
|
3
|
|
| 62 |
1123746
|
HEXAGON BOLT
|
|
1
|
|
