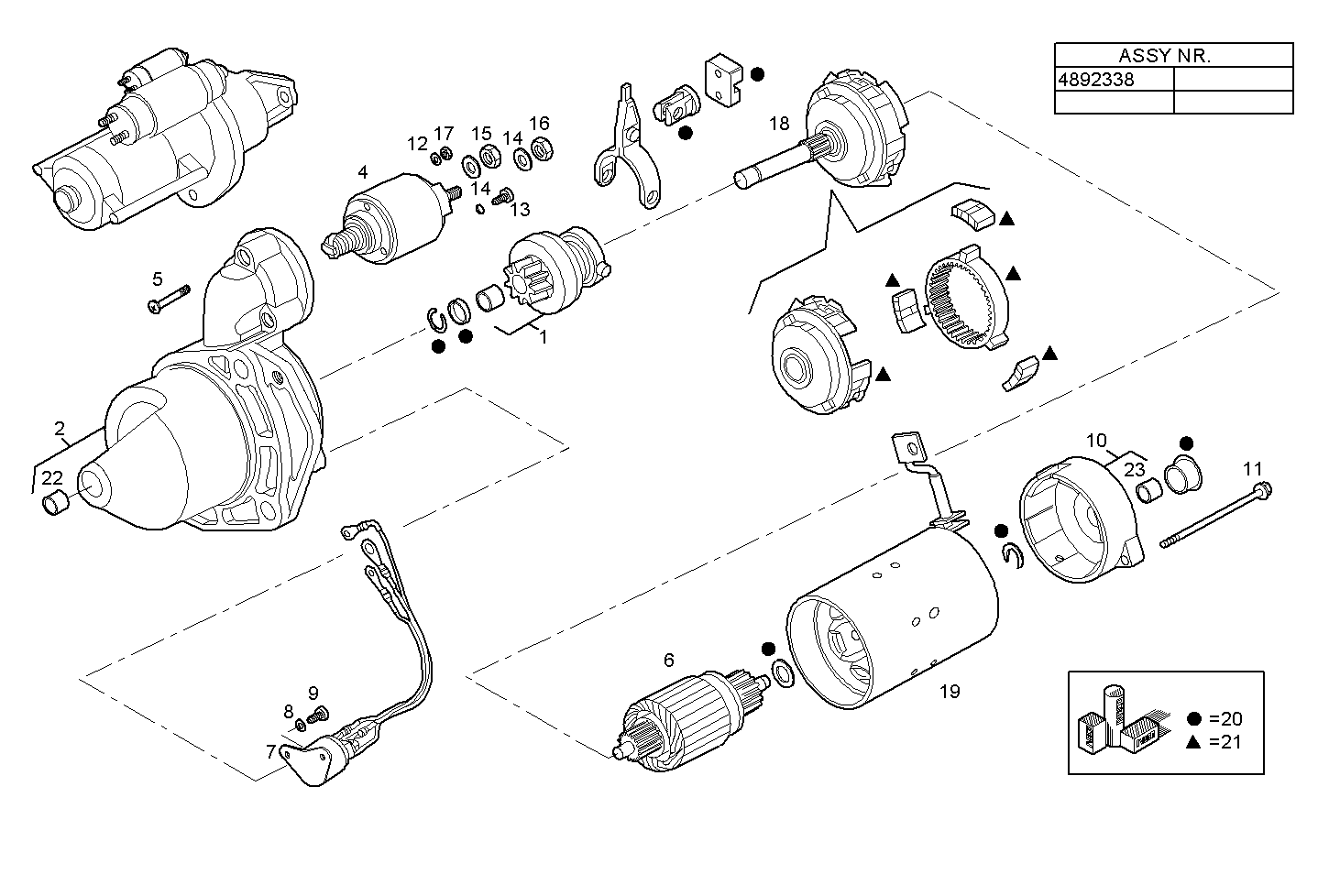

STARTER MOTOR (COMPONENTS)
Assembly ID: 3630.044
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 42537064 | STARTER PINION | 1 | ||
| 2 | 42537068 | STARTER SUPPORT | 1 | ||
| 3 | 42537069 | CLEVIS | 1 | ||
| 4 | 42550489 | STARTER SOLENOID | 1 | ||
| 5 | 42534008 | SCREW | 3 | ||
| 6 | 42537071 | STARTER ARMATURE | 1 | ||
| 7 | 42536985 | STARTER SOLENOID | 1 | ||
| 8 | 42537073 | WASHER | 2 | ||
| 9 | 42537074 | SCREW | 2 | ||
| 10 | 42537075 | COVER | 1 | ||
| 11 | 42537076 | SCREW | 2 | ||
| 12 | 42537077 | WASHER | 2 | ||
| 13 | 42537078 | SCREW | 1 | ||
| 14 | 42534012 | SPRING LOCKWASHER | 2 | ||
| 15 | 42541006 | NUT | 1 | ||
| 16 | 42537822 | NUT | 1 | ||
| 17 | 1290797 | NUT | 1 | ||
| 18 | 42537080 | STARTER PINION | 1 | ||
| 19 | 42537081 | STARTER WINDING | 1 | ||
| 20 | 42537082 | KIT-STARTER | 1 | ||
| 21 | 42537084 | KIT-STARTER | 1 | ||
| 22 | 8190143 | BUSH | 1 | ||
| 23 | 42535275 | BUSH | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4AE0684F*D101 | NEF 6 electron. - TIER 2 | view |
| F4AE0684J*D | NEF 6 electron. - TIER 2 | view |
| F4AE0682C*C117 | NEF 6 electron. - EURO 3 | view |
| F4AE0682H*C105 | NEF 6 electron. - EURO 3 | view |
| F4AE0481C*C103 | NEF 4 electron. - EURO 3 | view |
| N40ENTC21.00A015 | NEF 4 electron. - EURO 3 | view |
| F4AE0682D*C159 | NEF 6 electron. - EURO 3 | view |
| F4AE0682C*C119 | NEF 6 electron. - EURO 3 | view |
| F4AE0681B*C100 | NEF 6 electron. - EURO 3 | view |
| F4BE0641A*G102 | NEF 6 CNG | view |
| F4BE0641A*G103 | NEF 6 CNG | view |
| F4AE0481A*C103 | NEF 4 electron. - EURO 3 | view |
| F4AE0481A*C106 | NEF 4 electron. - EURO 3 | view |
| F4AE0481C*C102 | NEF 4 electron. - EURO 3 | view |
| N60ENTC27.00A001 | NEF 6 electron. - EURO 3 | view |
| N60MNTG26.00A001 | NEF 6 CNG | view |
| N60MNTG26.00A002 | NEF 6 CNG | view |
| F4AE0481A*C118 | NEF 4 electron. - EURO 3 | view |
| F4AE3682F*P100 | NEF 6 electron. - EURO 4 | view |
| F4AE3682F*P101 | NEF 6 electron. - EURO 4 | view |
| F4AE3682E*P100 | NEF 6 electron. - EURO 4 | view |
| F4AE3682E*P101 | NEF 6 electron. - EURO 4 | view |
| F4AE3681D*P110 | NEF 6 electron. - EURO 4 | view |
| F4AE3682A*R105 | NEF 6 electron. - EURO 4 | view |
| F4AE3682E*R104 | NEF 6 electron. - EURO 4 | view |
| F4AE3682E*R105 | NEF 6 electron. - EURO 4 | view |
| F4AE3682F*R103 | NEF 6 electron. - EURO 4 | view |
| F4AE3682F*R104 | NEF 6 electron. - EURO 4 | view |
| F4AE0481C*C111 | NEF 4 electron. - EURO 3 | view |
| N40ENTC21.00L018 | NEF 4 electron. - EURO 3 | view |
| N40ENTC21.00L019 | NEF 4 electron. - EURO 3 | view |
| F4AE3682E*P104 | NEF 6 electron. - EURO 4 | view |
| N60ENT427.00A005 | NEF 6 electron. - EURO 4 | view |
| N60ENT427.00A003 | NEF 6 electron. - EURO 4 | view |
| F4AE3681D*R107 | NEF 6 electron. - EURO 4 | view |
| F4BE0641A*G105 | NEF 6 CNG | view |
| F4AE3682E*S106 | NEF 6 electron. - EURO 5 | view |
| N40ENTC21.00A014 | NEF 4 electron. - EURO 3 | view |
| N40ENTC21.00A020 | NEF 4 electron. - EURO 3 | view |
| N40ENTC21.00A021 | NEF 4 electron. - EURO 3 | view |
| F4AE0681A*C157 | NEF 6 electron. - EURO 3 | view |
| N60ENTC23.00A003 | NEF 6 electron. - EURO 3 | view |
| N40ENTC21.00A022 | NEF 4 electron. - EURO 3 | view |
