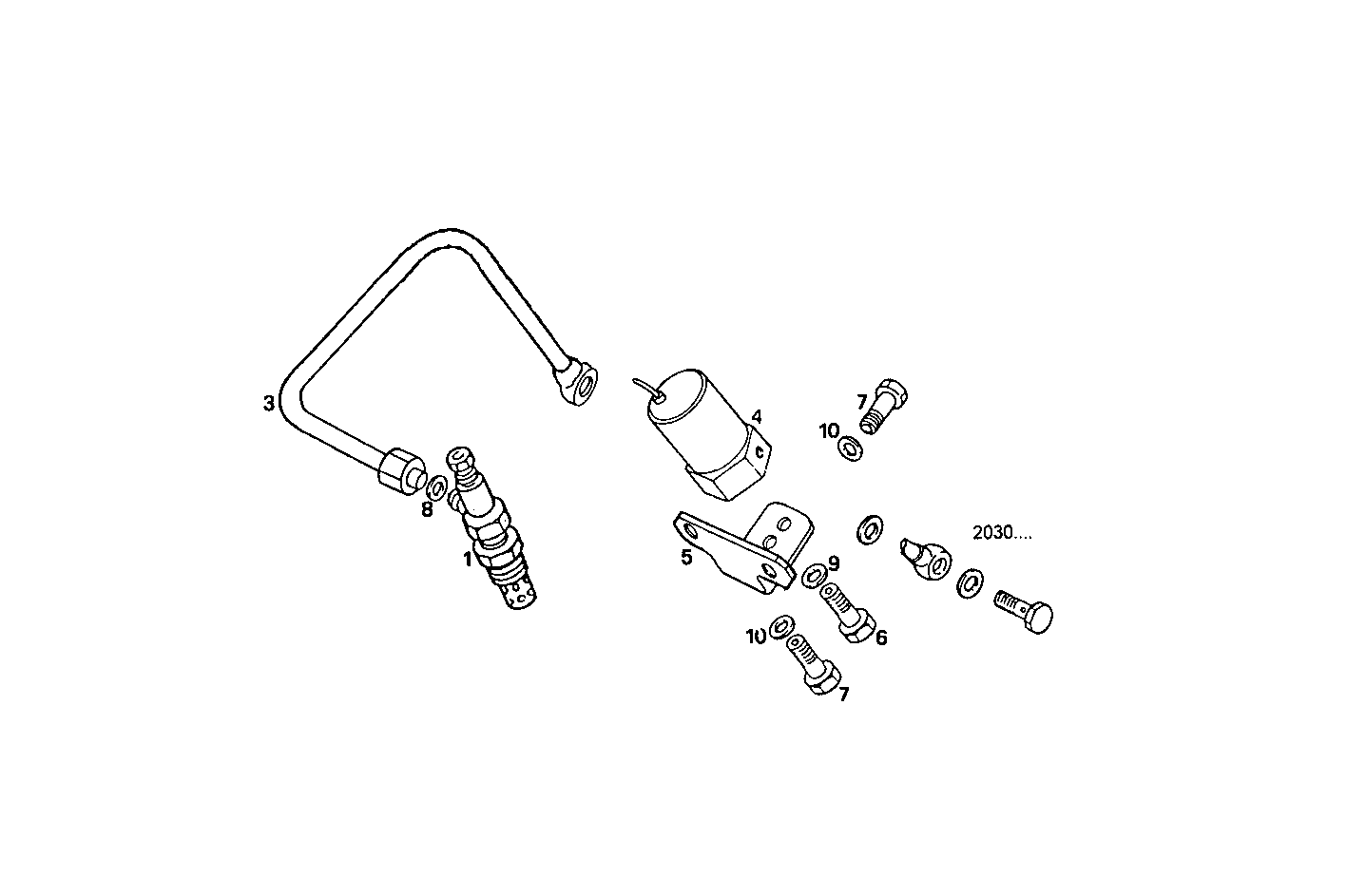

THERMO-STARTER
Assembly ID: 3650.036
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500314583 | THERMO-STARTER | 1 | ||
| 3 | 8029878 | FUEL LINE | 1 | ||
| 4 | 98494902 | ELECTROVALVE | 1 | ||
| 5 | 8028834 | RETAINER | 1 | ||
| 6 | 16602024 | SCREW | 1 | ||
| 7 | 16603524 | SCREW | 3 | ||
| 8 | 8024645 | O-RING | 1 | ||
| 9 | 17094504 | WASHER | 1 | ||
| 10 | 17088474 | WASHER | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SRM15.10 | 8140SRM15 | view |
| 8140SRM15.11 | 8140SRM15 | view |
