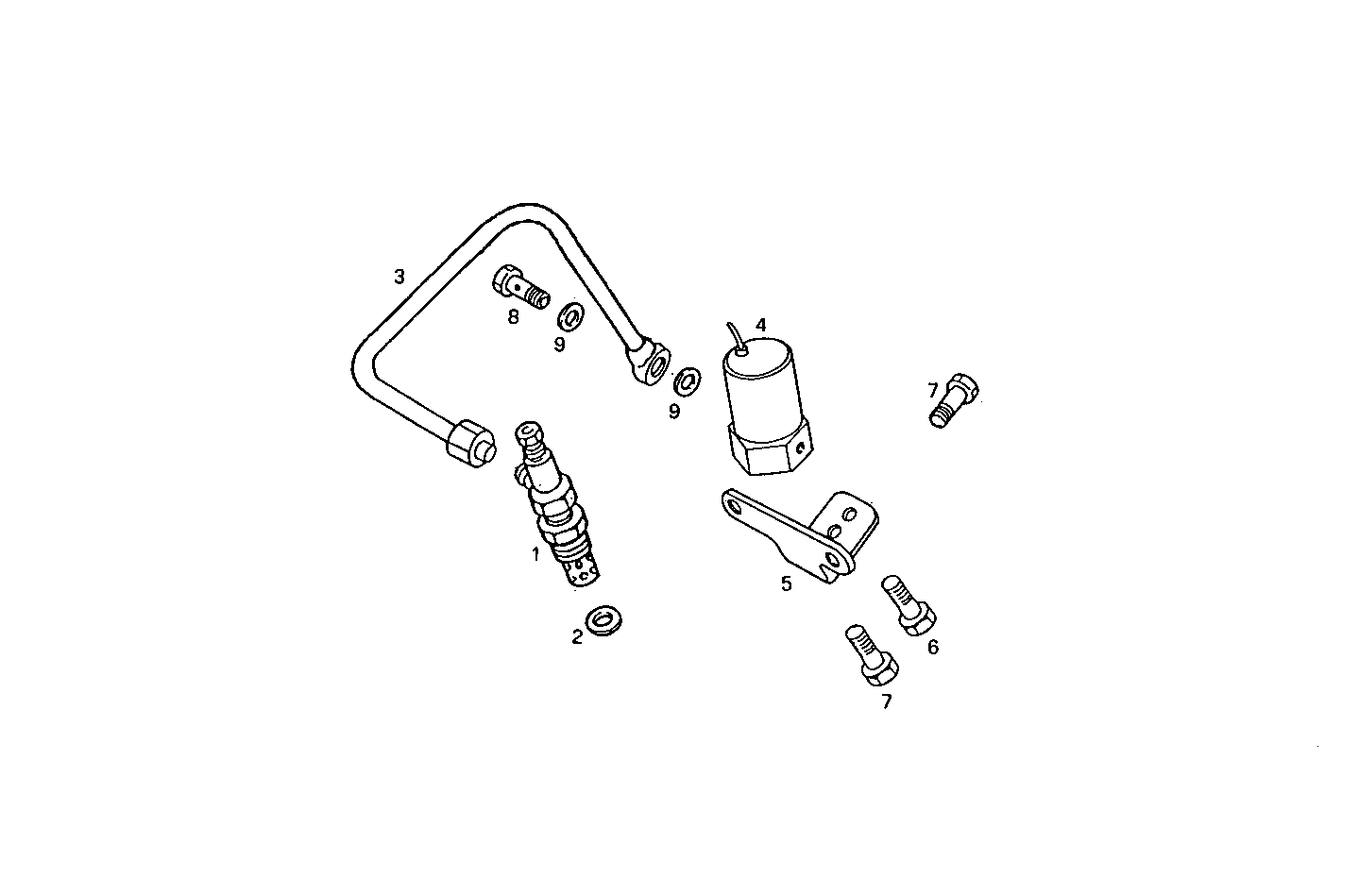

THERMO-STARTER
Assembly ID: 3650.037
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500314583 | THERMO-STARTER | 1 | ||
| 2 | 10263360 | SEAL GASKET | 1 | ||
| 3 | 500356316 | FUEL LINE | 1 | ||
| 4 | 98494902 | ELECTROVALVE | 1 | ||
| 5 | 99488644 | RETAINER | 1 | ||
| 6 | 16585024 | HEXAGON BOLT | 1 | ||
| 7 | 16596924 | HEXAGON BOLT | 3 | ||
| 8 | 7303136 | SCREW CONNECTOR | 1 | ||
| 9 | 10260160 | SEAL GASKET | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SRC30.00 | 8140SRC30 | view |
| 8140SRC21.00 | 8140SRC21 | view |
