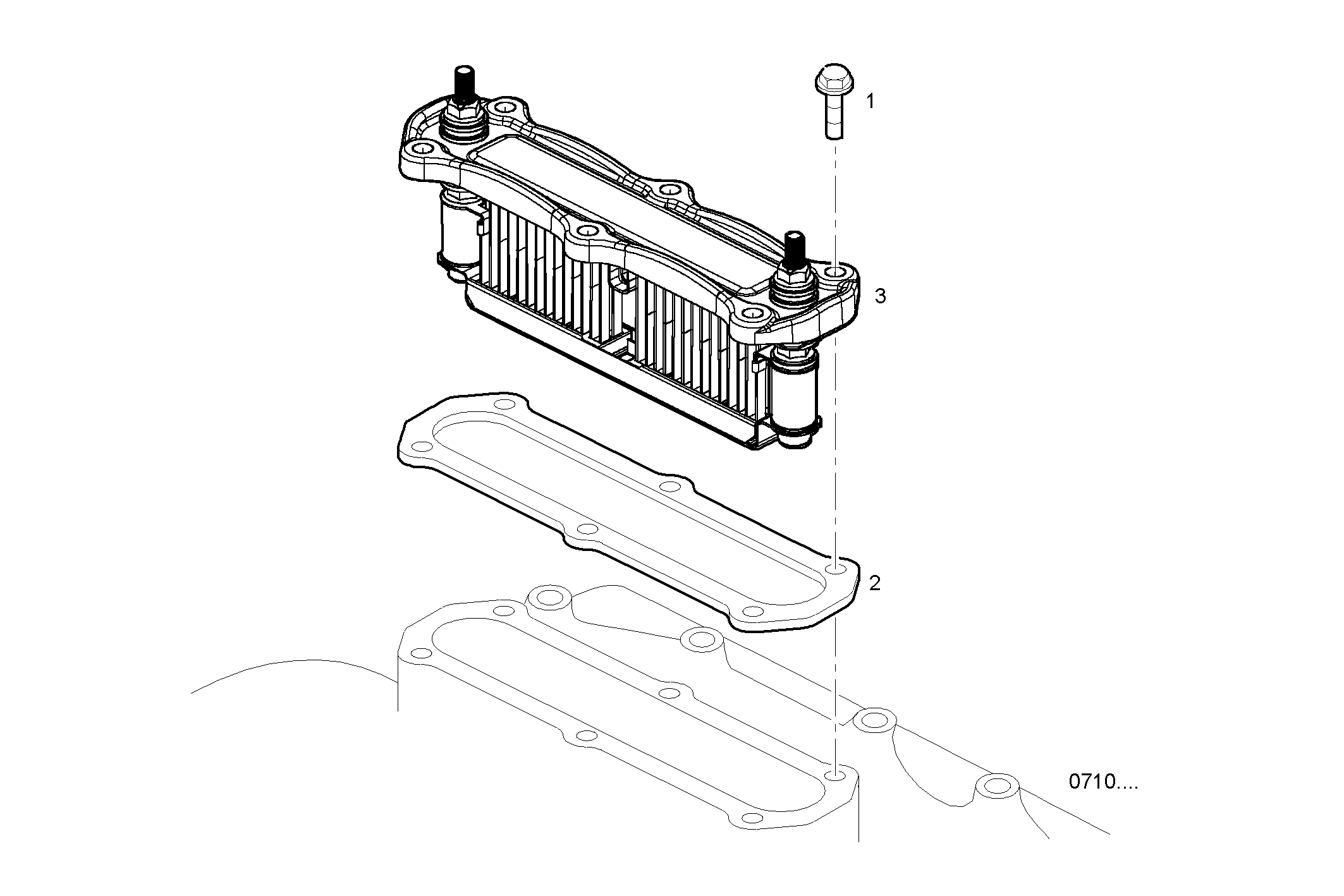

THERMO-STARTER
Assembly ID: 3650.050
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16585825 | HEXAGON BOLT | 6 | ||
| 2 | 504114491 | INTAKE ELBOW GASK. | 1 | ||
| 3 | 504129251 | HEATER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4DE9684A*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684U*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Y*J103 | NEF 6 electron. - TIER 3 | view |
| F4HE9687P*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9687A*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684A*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684Q*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684X*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9687E*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9687B*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9687E*J103 | NEF 6 electron. - TIER 3 | view |
| F4DE9684X*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9687B*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684A*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684A*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J102 | NEF 6 electron. - TIER 3 | view |
| F4HE9684A*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684Q*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J102 | NEF 6 electron. - TIER 3 | view |
