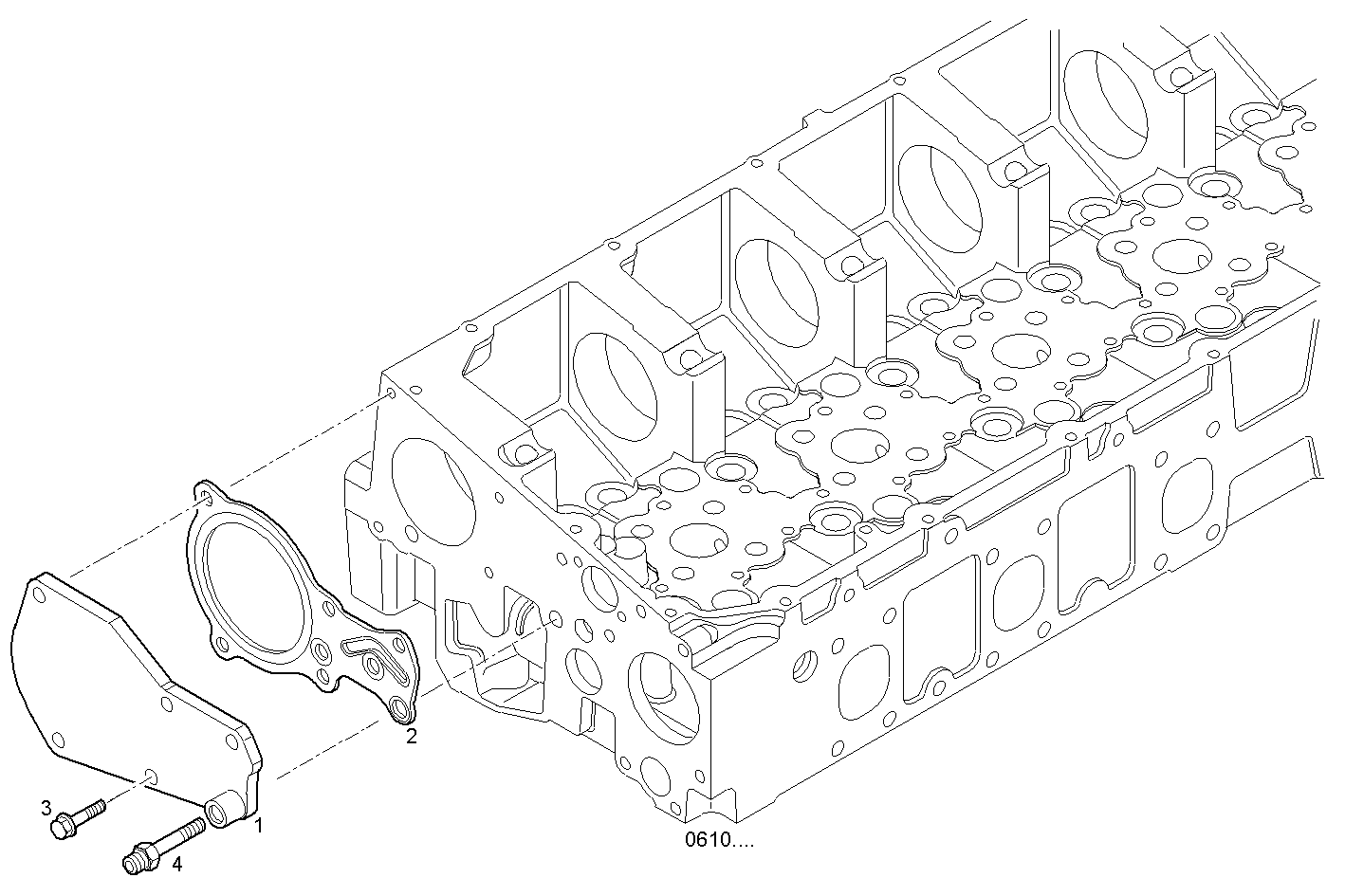

ENGINE EXHAUST BRAKE
Assembly ID: 3700.003
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8033621 | COVER | 1 | ||
| 2 | 504045790 | FLAT ENGINE GASKET | 1 | ||
| 3 | 16586225 | HEXAGON BOLT | 5 | ||
| 4 | 504081279 | PIPE SOCKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.11 | CURSOR 8 | view |
| C78ENTM50.11A001 | CURSOR 8 | view |
| C78ENTM30.10-D 01/04 | CURSOR 8 | view |
| F2BE0686C*B201 | CURSOR 8 | view |
| C78ENTM30.10A002 | CURSOR 8 | view |
| F2BE0686A*B111 | CURSOR 8 | view |
| C78ENTM55.10 | CURSOR 8 | view |
| C78ENTM55.10A001 | CURSOR 8 | view |
| C78ENSM20.10 | CURSOR 8 | view |
| C78ENAM12.00 | CURSOR 8 | view |
| C78ENSM20.30 | CURSOR 8 | view |
| C78ENTF40.00 | CURSOR 8 - TIER 2 | view |
| C78ENTF41.00 | CURSOR 8 - TIER 2 | view |
| C78ENTM55.12 | CURSOR 8 | view |
