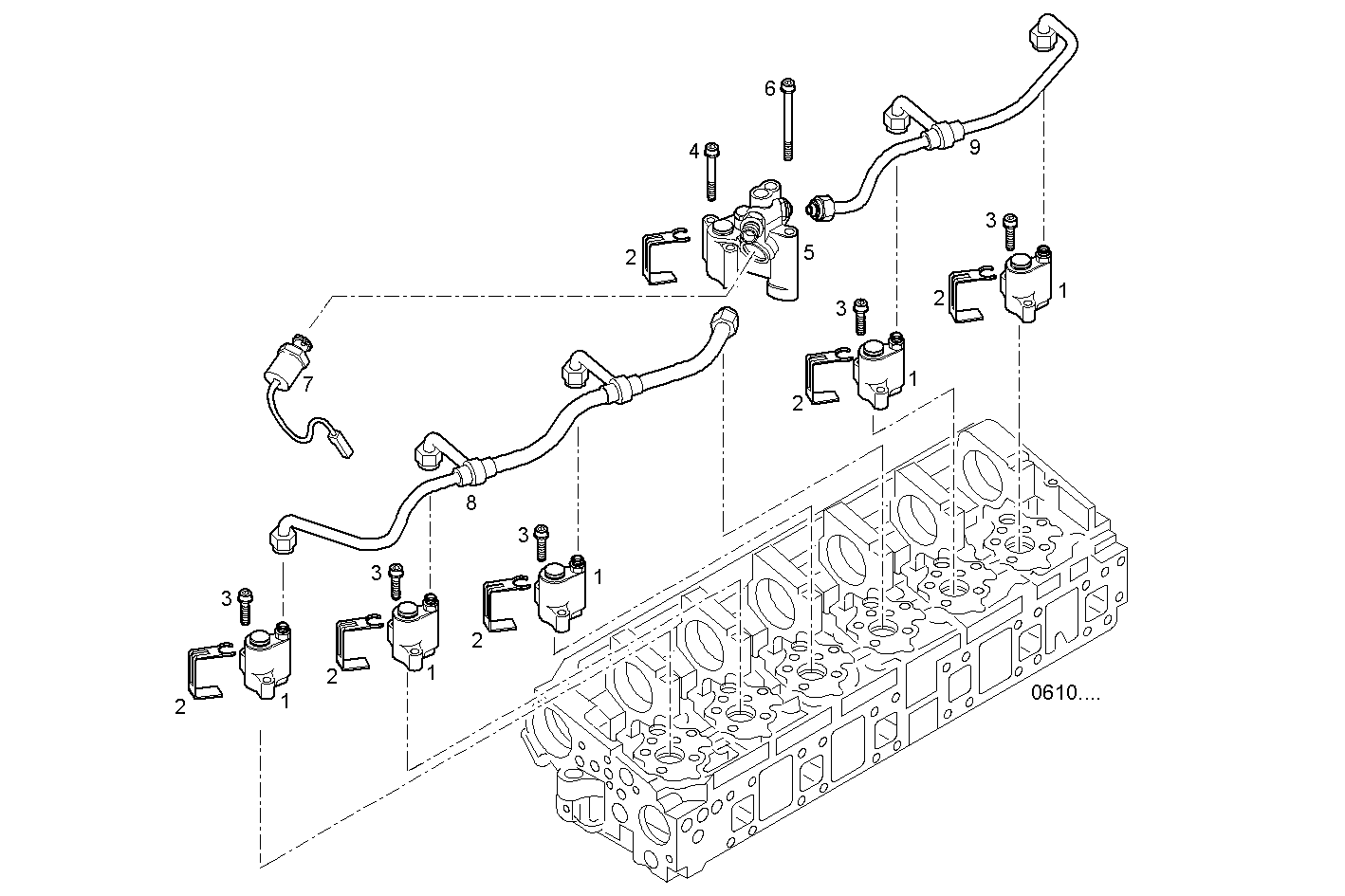

ENGINE EXHAUST BRAKE
Assembly ID: 3700.006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504222834 | ENGINE BRAKE VALVE | 5 | ||
| 2 | 500376911 | RETAINING SPRING | 6 | ||
| 3 | 16707334 | CYLIND-HEAD SCREW | 10 | ||
| 4 | 16691324 | CYLIND-HEAD SCREW | 2 | ||
| 5 | 504222833 | ENGINE BRAKE VALVE | 1 | ||
| 6 | 16691724 | CYLIND-HEAD SCREW | 1 | ||
| 7 | 99478611 | ELECTROVALVE | 1 | ||
| 8 | 500336756 | HYDRAULIC LINE | 1 | ||
| 9 | 500336760 | HYDRAULIC LINE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0681M*B722 | CURSOR 13 - EURO 3 | view |
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
