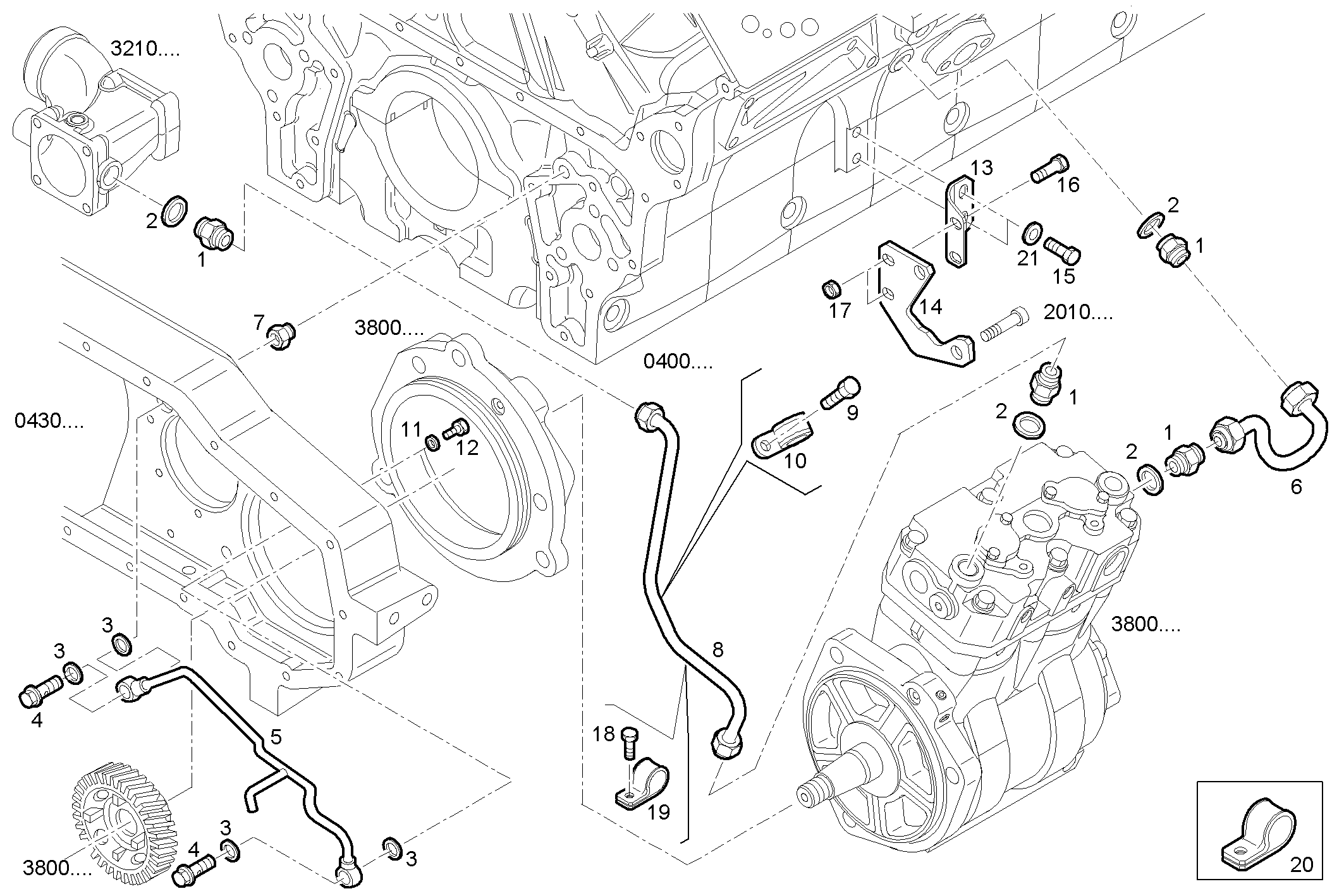

| 1 |
41031571
|
THREADED UNION
|
|
4
|
|
| 2 |
99489020
|
SEAL GASKET
|
|
4
|
|
| 3 |
98474305
|
WASHER
|
|
8
|
|
| 4 |
4864079
|
SCREW CONNECTOR
|
|
4
|
|
| 5 |
504050100
|
OIL LINE
|
|
1
|
|
| 6 |
504051076
|
WATER PIPE
|
|
1
|
|
| 7 |
504049545
|
THREADED UNION
|
|
1
|
|
| 8 |
504065765
|
WATER PIPE
|
|
1
|
|
| 9 |
16597925
|
HEXAGON BOLT
|
|
1
|
|
| 10 |
17316690
|
FASTENING BRACKET
|
|
1
|
|
| 11 |
17094724
|
WASHER
|
|
1
|
|
| 12 |
16596924
|
HEXAGON BOLT
|
|
1
|
|
| 13 |
504079201
|
RETAINER
|
|
1
|
|
| 14 |
504079200
|
RETAINER
|
|
1
|
|
| 15 |
16673535
|
HEXAGON BOLT
|
|
2
|
|
| 16 |
16673635
|
HEXAGON BOLT
|
|
2
|
|
| 17 |
16750235
|
HEXAGON NUT
|
|
2
|
|
| 18 |
16597925
|
HEXAGON BOLT
|
|
1
|
|
| 19 |
17314590
|
RETAINER
|
|
1
|
|
| 20 |
17316792
|
CLIP
|
|
1
|
|
| 21 |
17094924
|
WASHER
|
|
2
|
|
