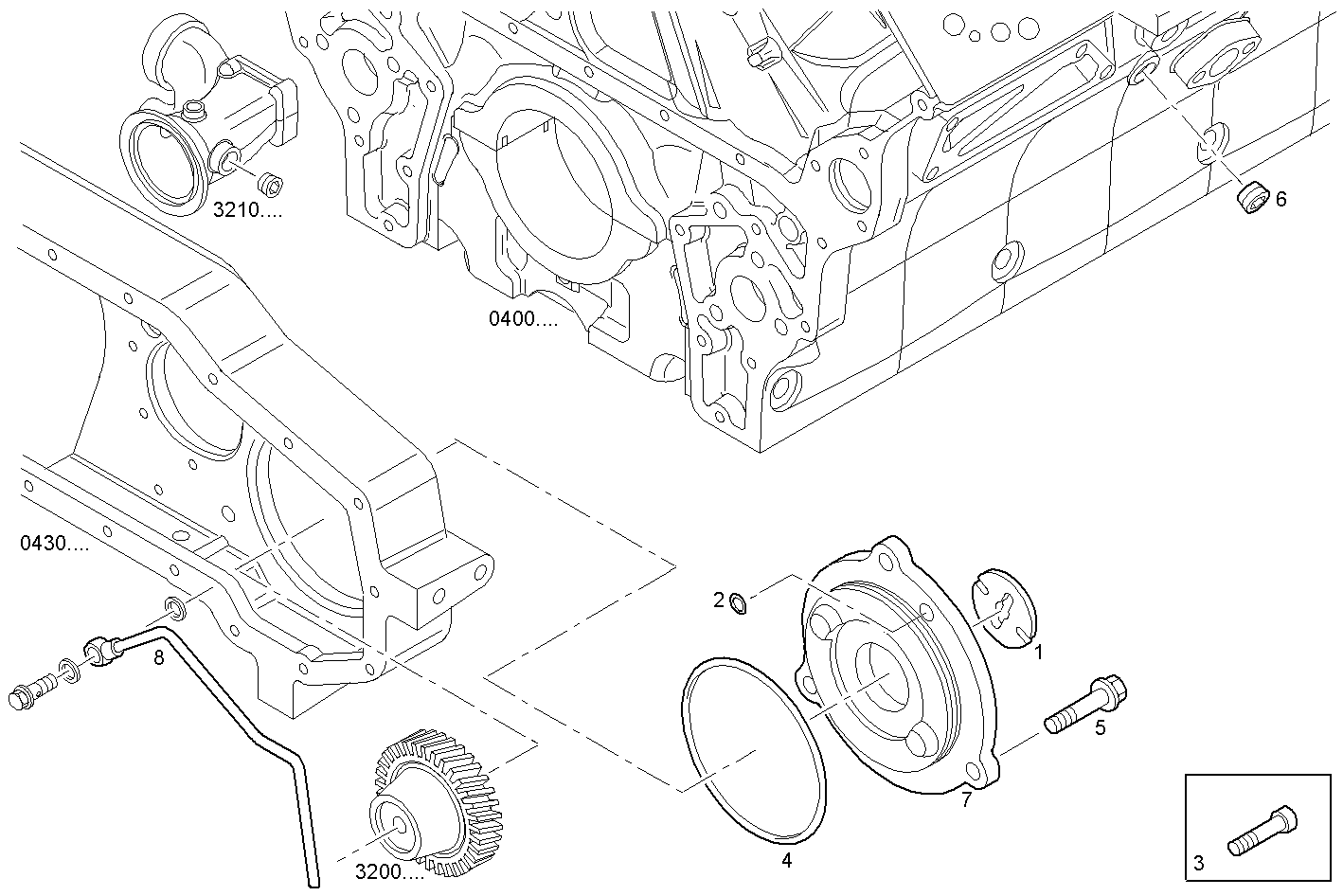

AIR COMPRESSOR
Assembly ID: 3800.035
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504058399 | FLEXIBLE COUPLING | 1 | ||
| 2 | 17281381 | O-RING | 1 | ||
| 3 | 16693924 | CYLIND-HEAD SCREW | 4 | ||
| 4 | 17292381 | O-RING | 1 | ||
| 5 | 16596924 | HEXAGON BOLT | 3 | ||
| 6 | 504060846 | THREADED UNION | 2 | ||
| 7 | 504058403 | SPACING BAR | 1 | ||
| 8 | 504059218 | OIL LINE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| V08ENTM11.10D210 | VECTOR 8 | view |
| V08ENTM75.10A210 | VECTOR 8 | view |
| V08ENTM75.10B210 | VECTOR 8 | view |
| V08ENTM75.10B230 | VECTOR 8 | view |
| V08ENTM11.10C210 | VECTOR 8 | view |
| V08ENTM11.10P210 | VECTOR 8 | view |
| V08ENTM11.10R210 | VECTOR 8 | view |
| V08ENTM12.10A210 | VECTOR 8 | view |
| V08ENTM12.10B210 | VECTOR 8 | view |
