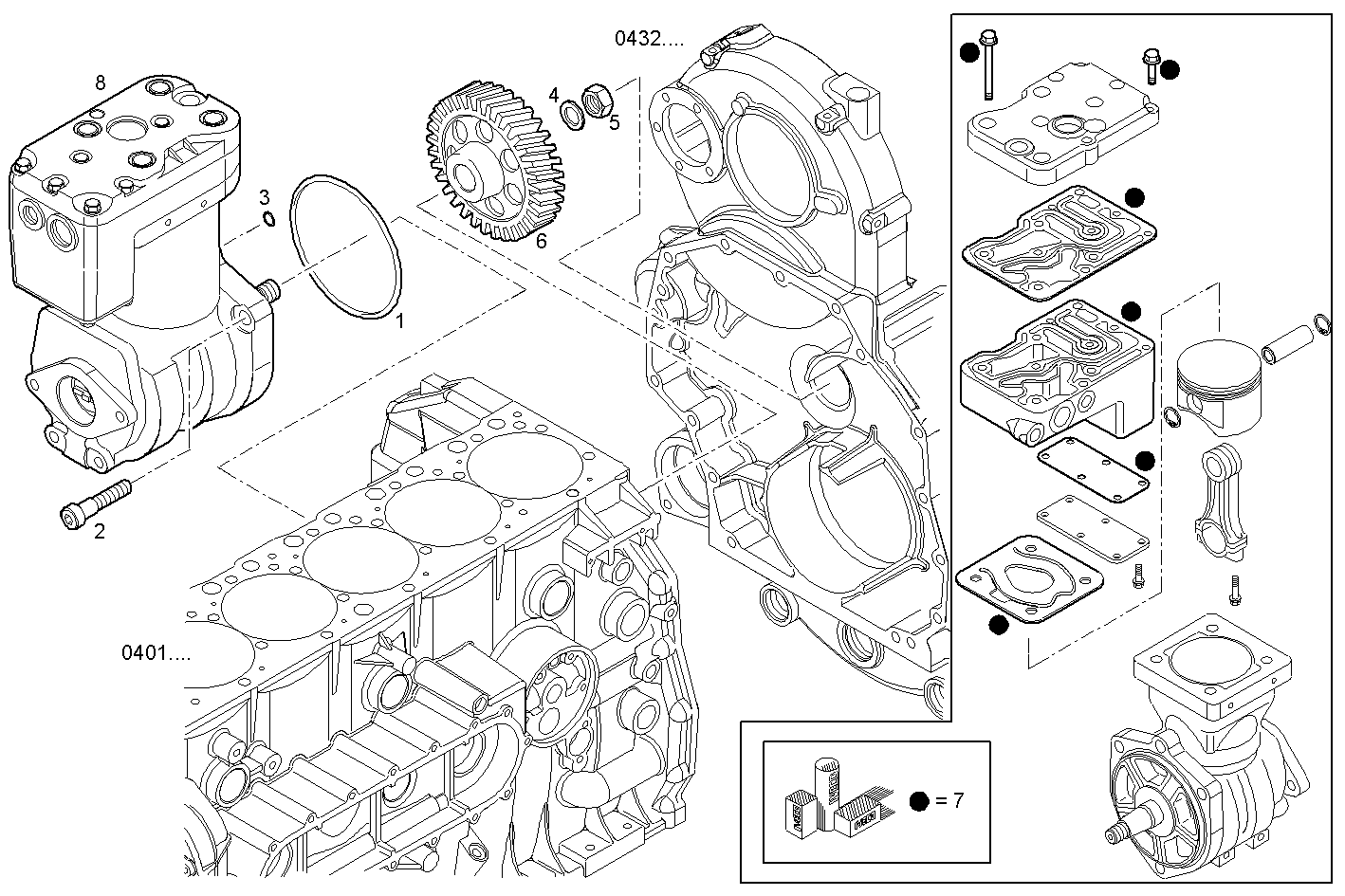

AIR COMPRESSOR
Assembly ID: 3801.012
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 17292281 | O-RING | 1 | ||
| 2 | 16693924 | CYLIND-HEAD SCREW | 3 | ||
| 3 | 17281381 | O-RING | 1 | ||
| 4 | 17095914 | WASHER | 1 | ||
| 5 | 99471892 | HEXAGON NUT | 1 | ||
| 6 | 504124646 | COMP. DRIVE GEAR | 1 | ||
| 7 | 42541602 | KIT-AIR COMPRESSOR | 1 | ||
| 8 | 41211219 | AIR COMPRESSOR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C87ENTX20.00A003 | CURSOR 9 - TIER 3 | view |
