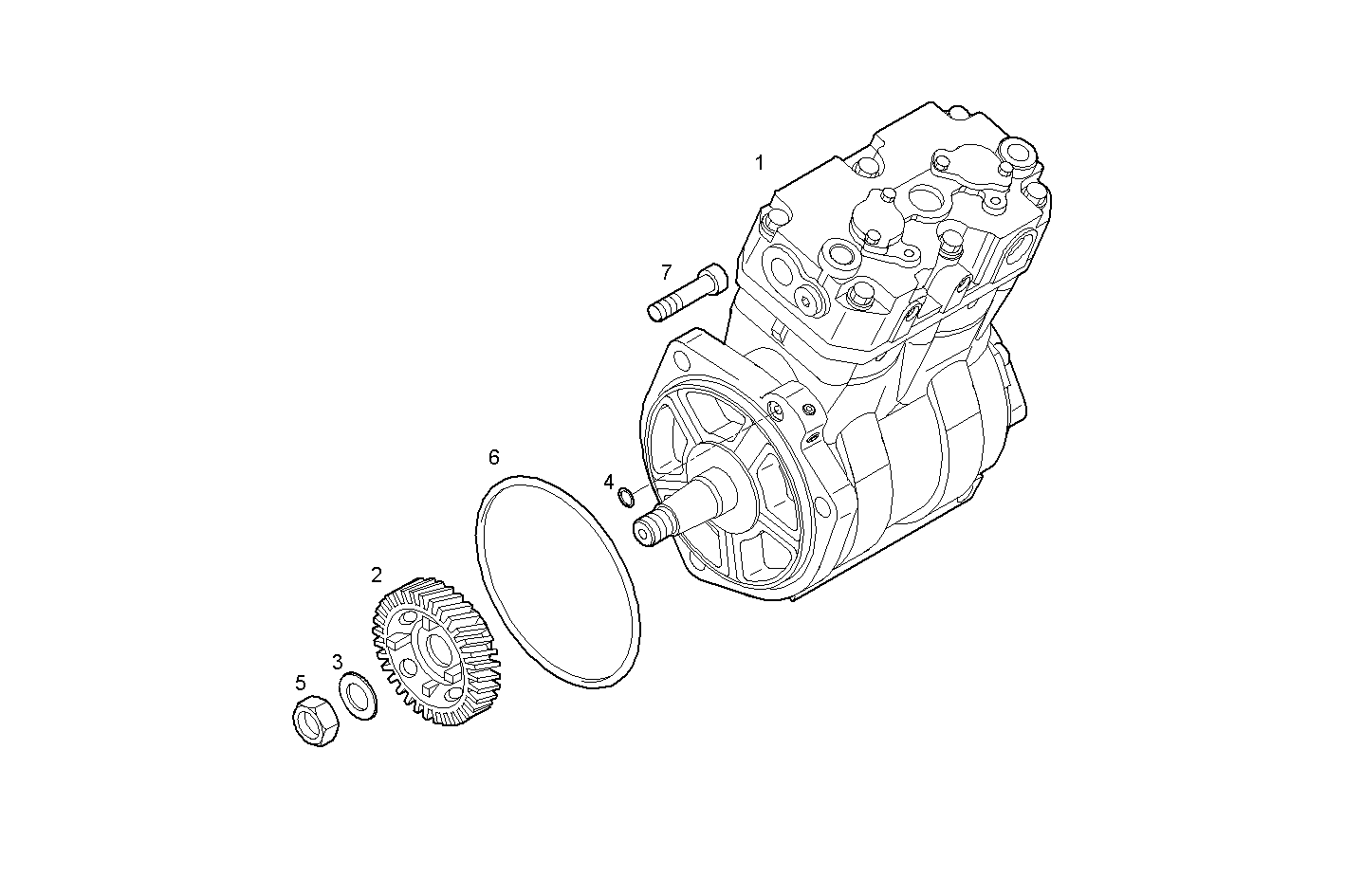

AIR COMPRESSOR
Assembly ID: 3801.013
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504293730 | AIR COMPRESSOR | 1 | ||
| 2 | 99437433 | DRIVE GEAR | 1 | ||
| 3 | 17095914 | WASHER | 1 | ||
| 4 | 17281381 | O-RING | 1 | ||
| 5 | 504016500 | NUT | 1 | ||
| 6 | 17292281 | O-RING | 1 | ||
| 7 | 16693924 | CYLIND-HEAD SCREW | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
| F3AE0681D*B315 | CURSOR 10 - EURO 3 | view |
| C10ENTC23.00A002 | CURSOR 10 - EURO 3 | view |
