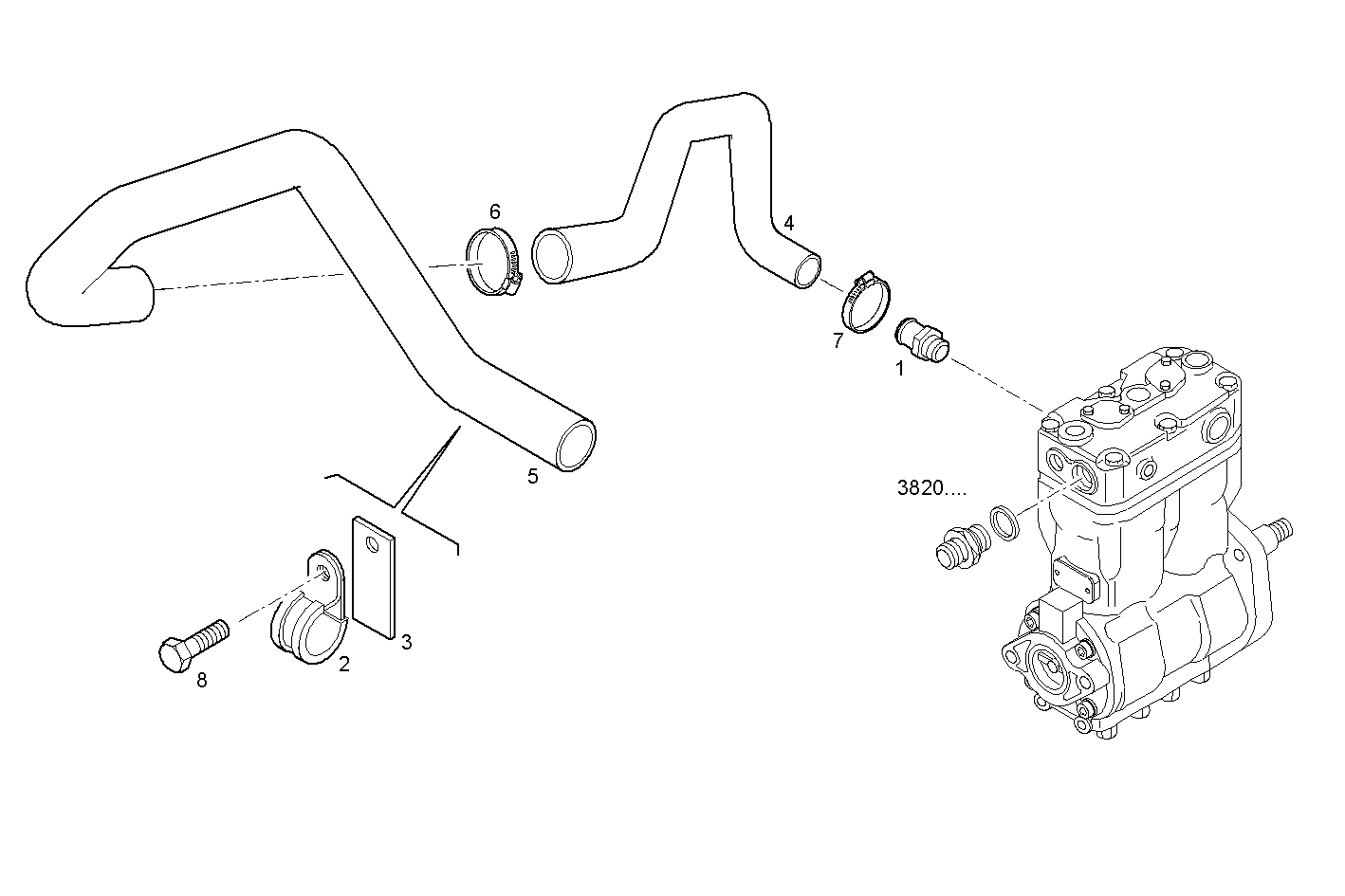

AIR COMPESSOR SUCTION
Assembly ID: 3819.006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 41232261 | THREADED UNION | 1 | ||
| 2 | 41231094 | FASTENING BRACKET | 2 | ||
| 3 | 41226271 | SUPPORT | 1 | ||
| 4 | 41225346 | OIL HOSE | 1 | ||
| 5 | 41225180 | SUCTION LINE | 1 | ||
| 6 | 17764793 | CLIP | 1 | ||
| 7 | 17764693 | CLIP | 1 | ||
| 8 | 16597925 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0681D*B315 | CURSOR 10 - EURO 3 | view |
| C10ENTC23.00A002 | CURSOR 10 - EURO 3 | view |
