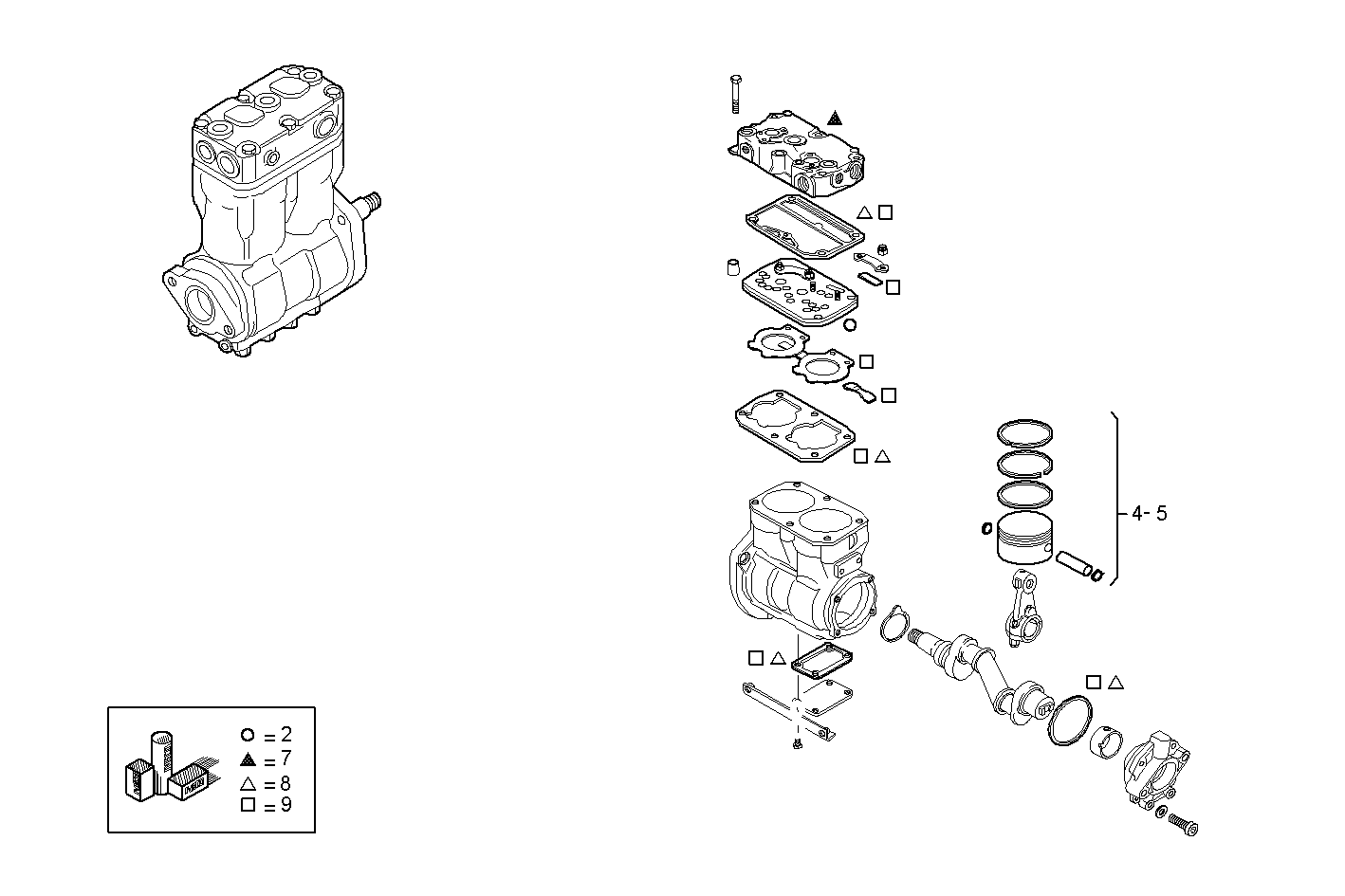

AIR COMPRESSOR (COMPONENTS)
Assembly ID: 3830.030
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 2 | 42549156 | KIT-AIR COMPRESSOR | 1 | ||
| 4 | 42536601 | KIT-AIR COMPRESSOR | 2 | ||
| 5 | 42536602 | KIT-AIR COMPRESSOR | 2 | ||
| 7 | 42549155 | KIT-AIR COMPRESSOR | 1 | ||
| 8 | 42549151 | KIT-AIR COMPRESSOR | 1 | ||
| 9 | 42549154 | KIT-AIR COMPRESSOR | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0642A*A003 | CURSOR 8 CNG | view |
| F2BE0642B*A001 | CURSOR 8 CNG | view |
