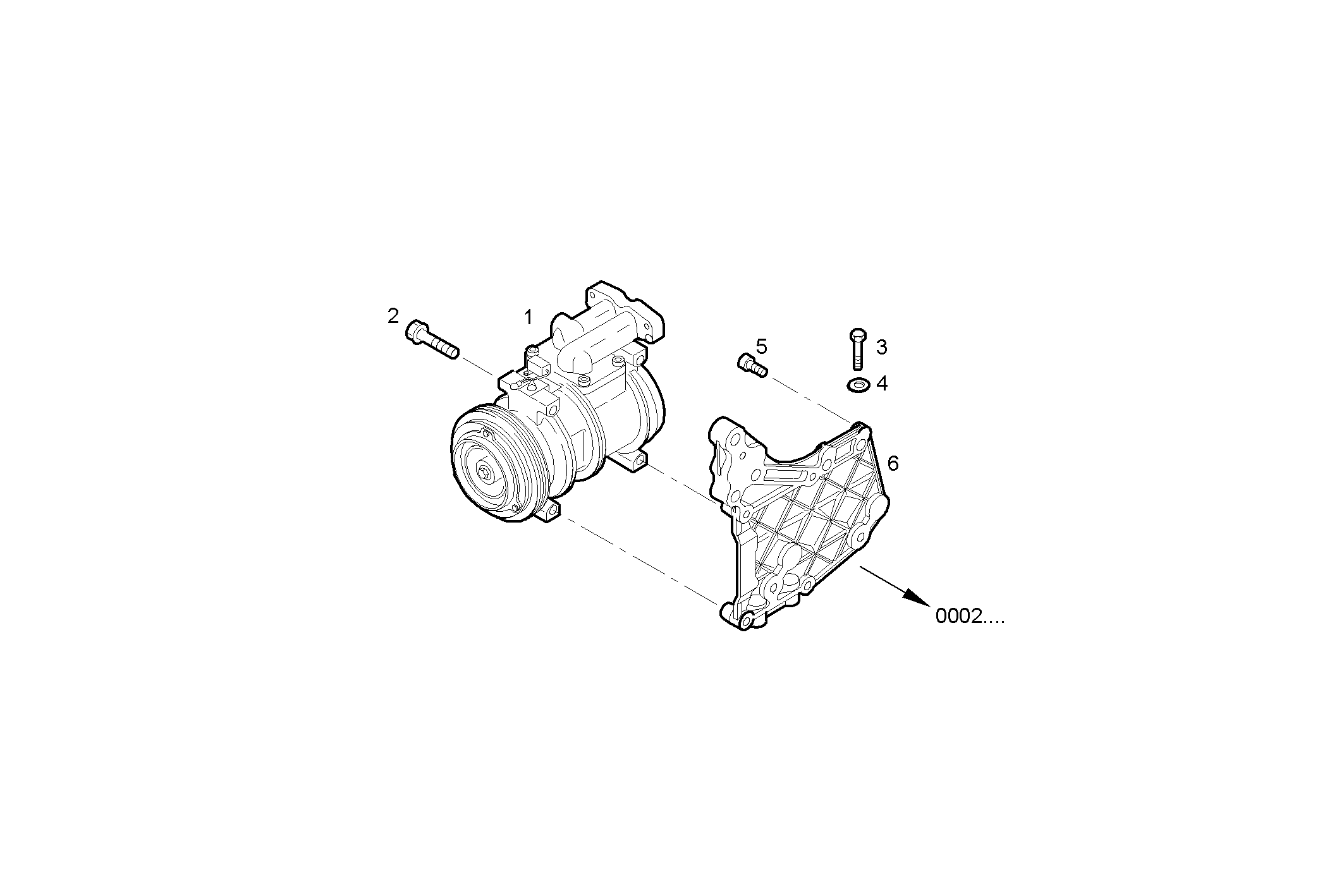

COMPRESSOR AIR CONDITIONING
Assembly ID: 3900.026
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504078610 | AIR COND.COMPRESS. | 1 | ||
| 2 | 16598325 | HEXAGON BOLT | 4 | ||
| 3 | 504080093 | SOCKET-HEAD SCREW | 2 | ||
| 4 | 17097024 | WASHER | 2 | ||
| 5 | 16692324 | SOCKET-HEAD SCREW | 2 | ||
| 6 | 504078624 | SUPPORT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684G*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E902 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E901 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684Q*E905 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E905 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E902 | CURSOR 13 - TIER 3 | view |
