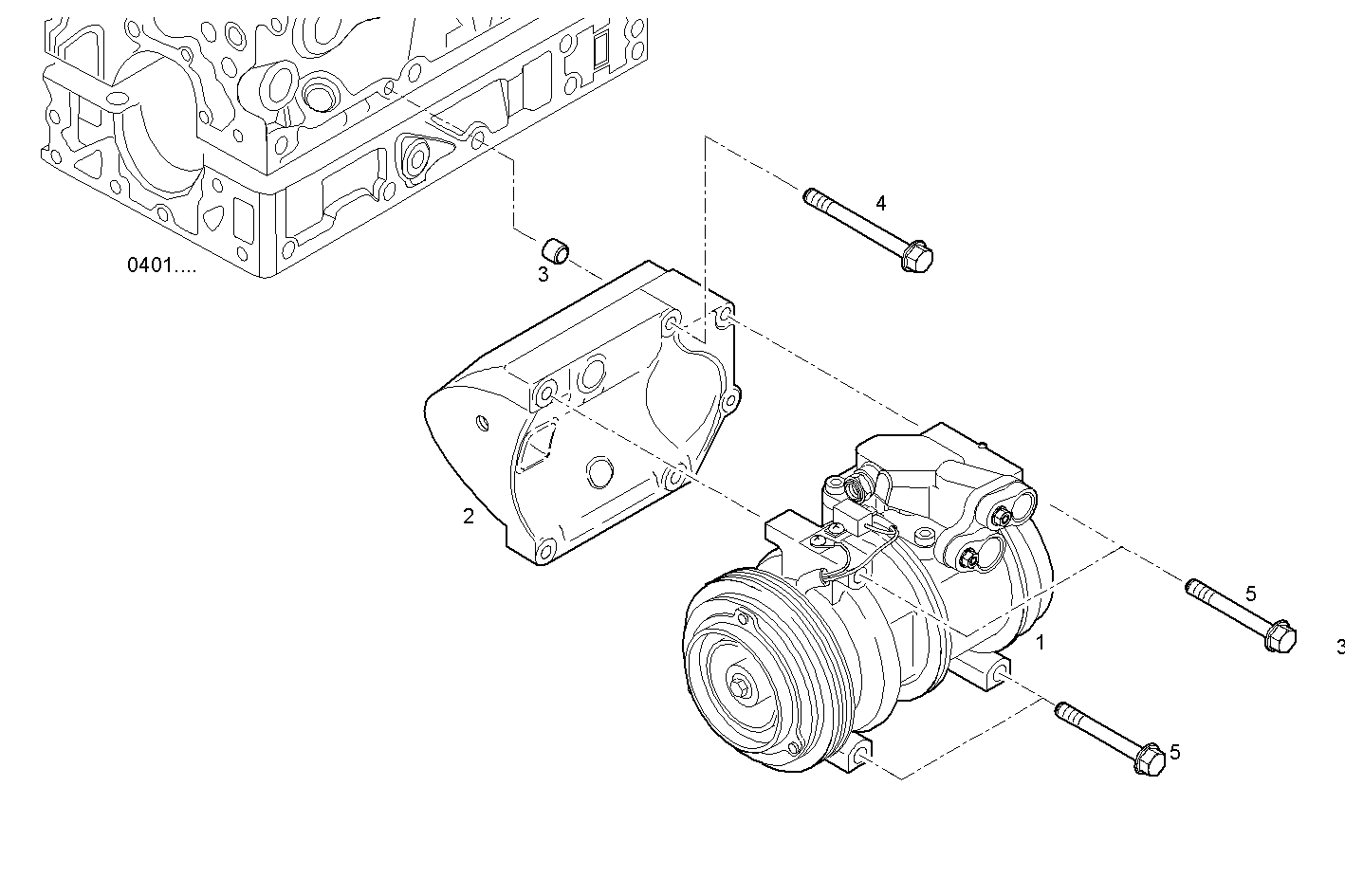

COMPRESSOR AIR CONDITIONING
Assembly ID: 3900.042
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504277234 | AIR COND.COMPRESS. | 1 | ||
| 2 | 504014394 | SUPPORT | 1 | ||
| 3 | 500371139 | DOWEL PIN | 2 | ||
| 4 | 16598224 | HEXAGON BOLT | 4 | ||
| 5 | 16586925 | HEXAGON BOLT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481G*A003 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.00A001 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.00A002 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481G*A009 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A001 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A002 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A003 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A004 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A008 | SOFIM HPI 2.3L - EURO 4 | view |
