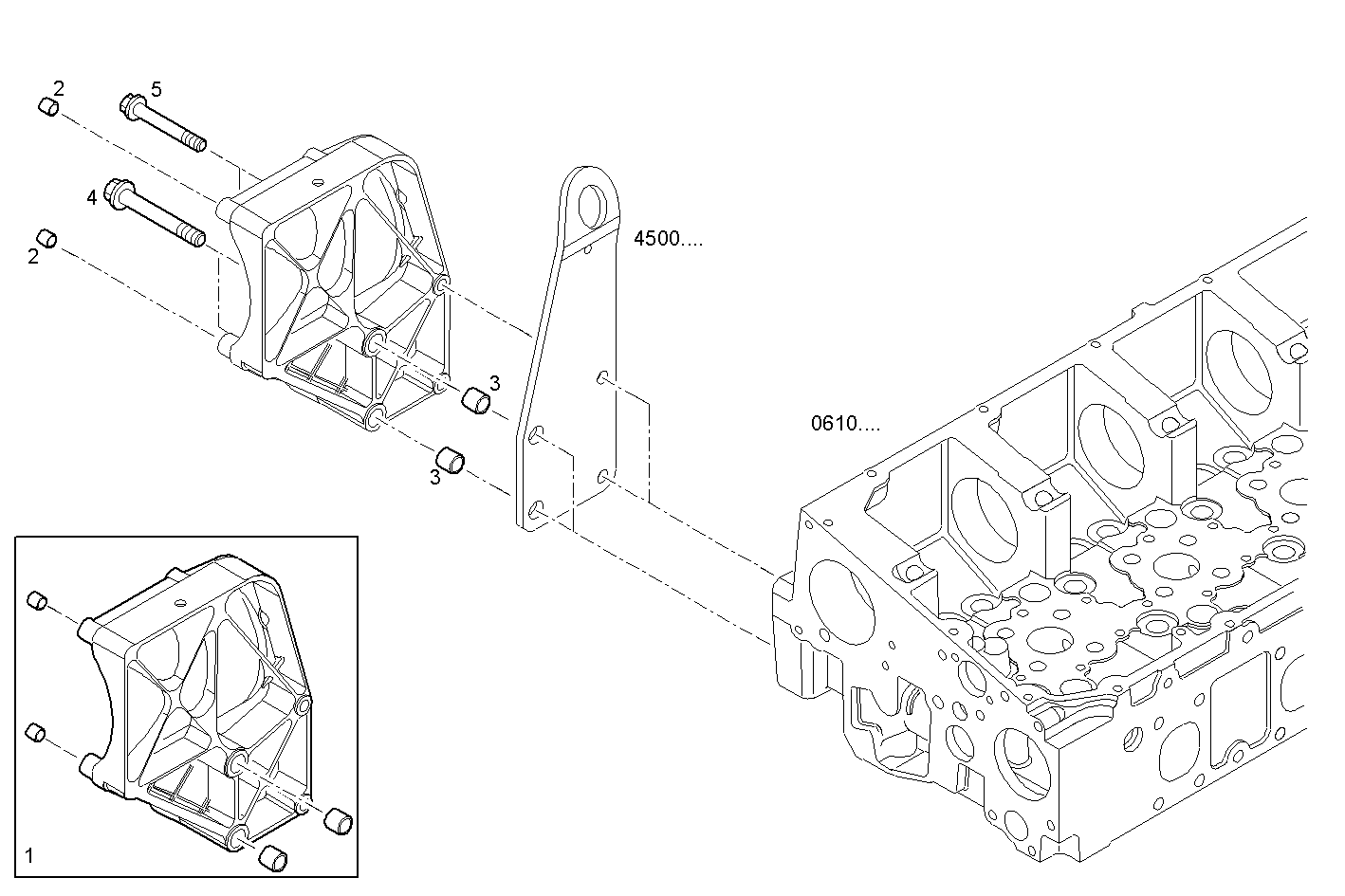

COMPRESSOR AIR CONDITIONING
Assembly ID: 3900.043
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504371058 | SUPPORT | 1 | ||
| 2 | 99435557 | DOWEL PIN | 2 | ||
| 3 | 504277279 | DOWEL PIN | 2 | ||
| 4 | 16593224 | HEXAGON BOLT | 2 | ||
| 5 | 16592925 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2CE0681B*B200 | CURSOR 9 - EURO 3 | view |
| F2CE0681B*B201 | CURSOR 9 - EURO 3 | view |
