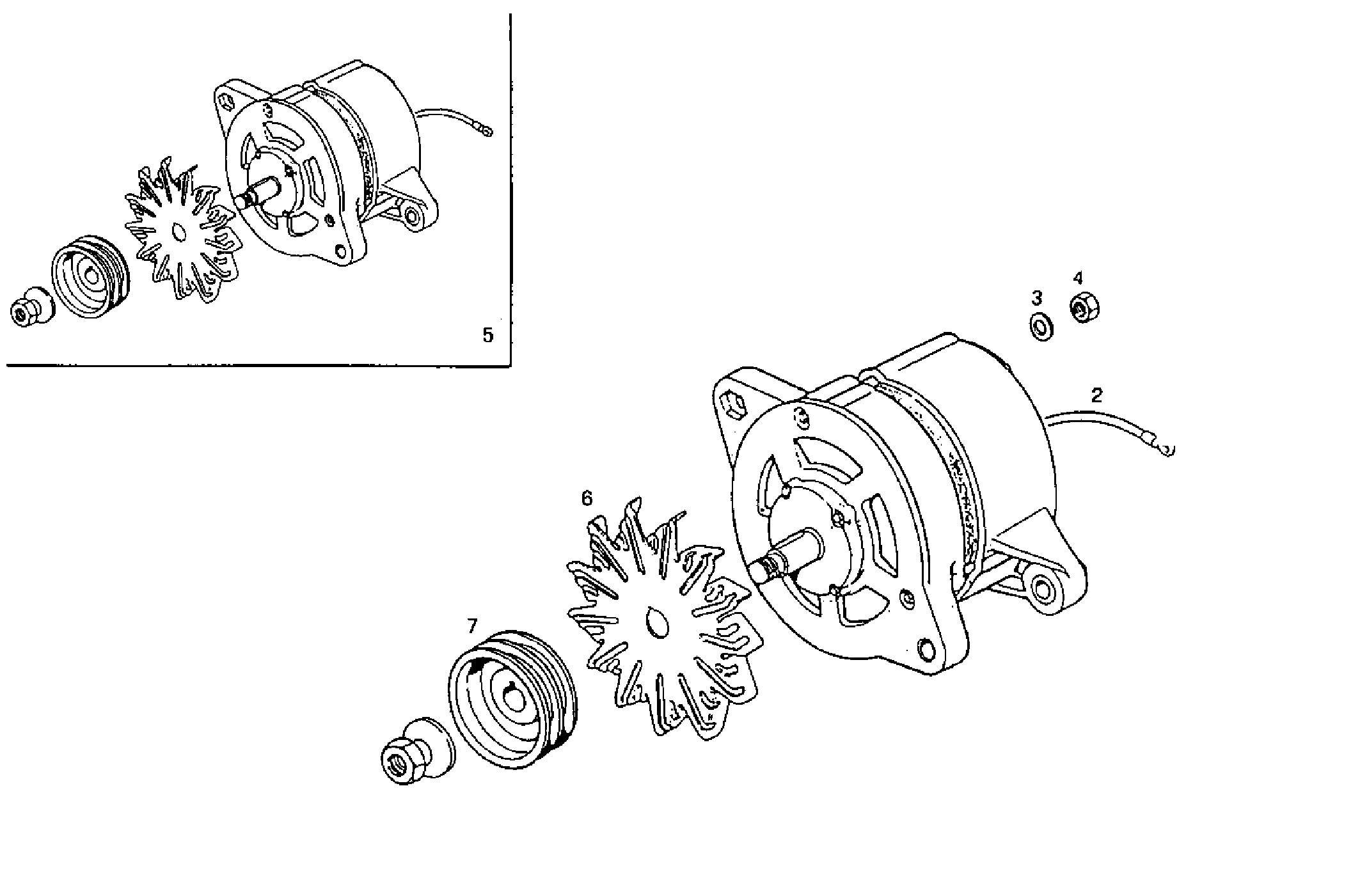

GENERATOR
Assembly ID: 4000.003
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 2 | 8030333 | WIRE/CABLE | 1 | ||
| 3 | 17088474 | WASHER | 1 | ||
| 4 | 17037821 | HEXAGON NUT | 1 | ||
| 5 | 8107966 | ALTERNATOR | 1 | ||
| 6 | 4717026 | GENERATOR FAN | 1 | ||
| 7 | 4808607 | PULLEY | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061i05.00 | 8061i05 | view |
| 8061i25.00 | 8061i25 | view |
| 8061Si25.00 | 8061Si25 | view |
| 8061M12.00 | 8061M12 | view |
| 8061M14.01 | 8061M14 | view |
| 8061M14.02 | 8061M14 | view |
