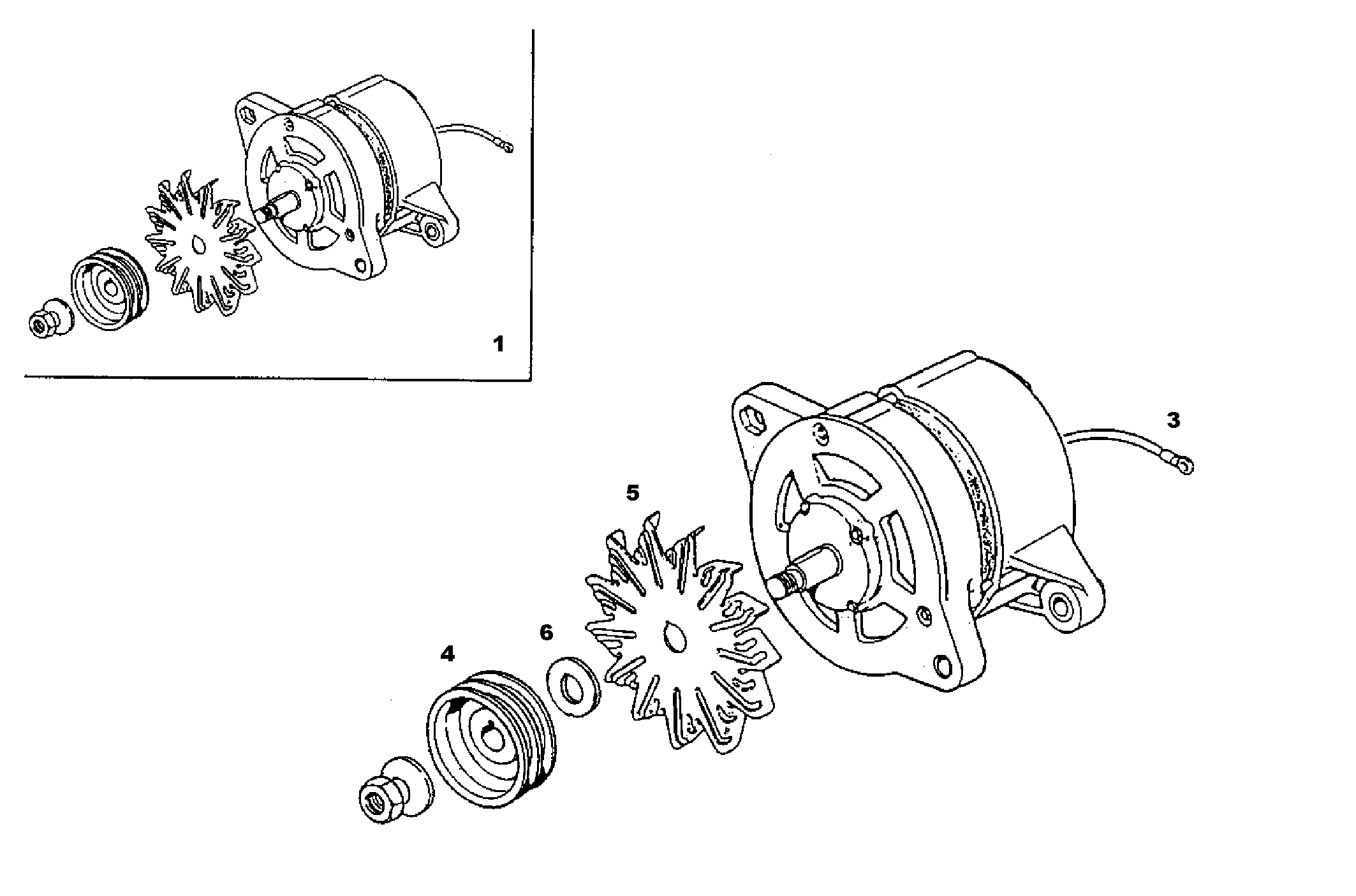

GENERATOR
Assembly ID: 4000.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8110544 | ALTERNATOR | 1 | ||
| 3 | 8030333 | WIRE/CABLE | 1 | ||
| 4 | 5011828 | PULLEY | 1 | ||
| 5 | 4717026 | GENERATOR FAN | 1 | ||
| 6 | 4815284 | SPACING BAR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM27.10 | 8061SRM27 | view |
| 8061SRM24.00 | 8061SRM24 | view |
| 8061SRM24.10 | 8061SRM24 | view |
