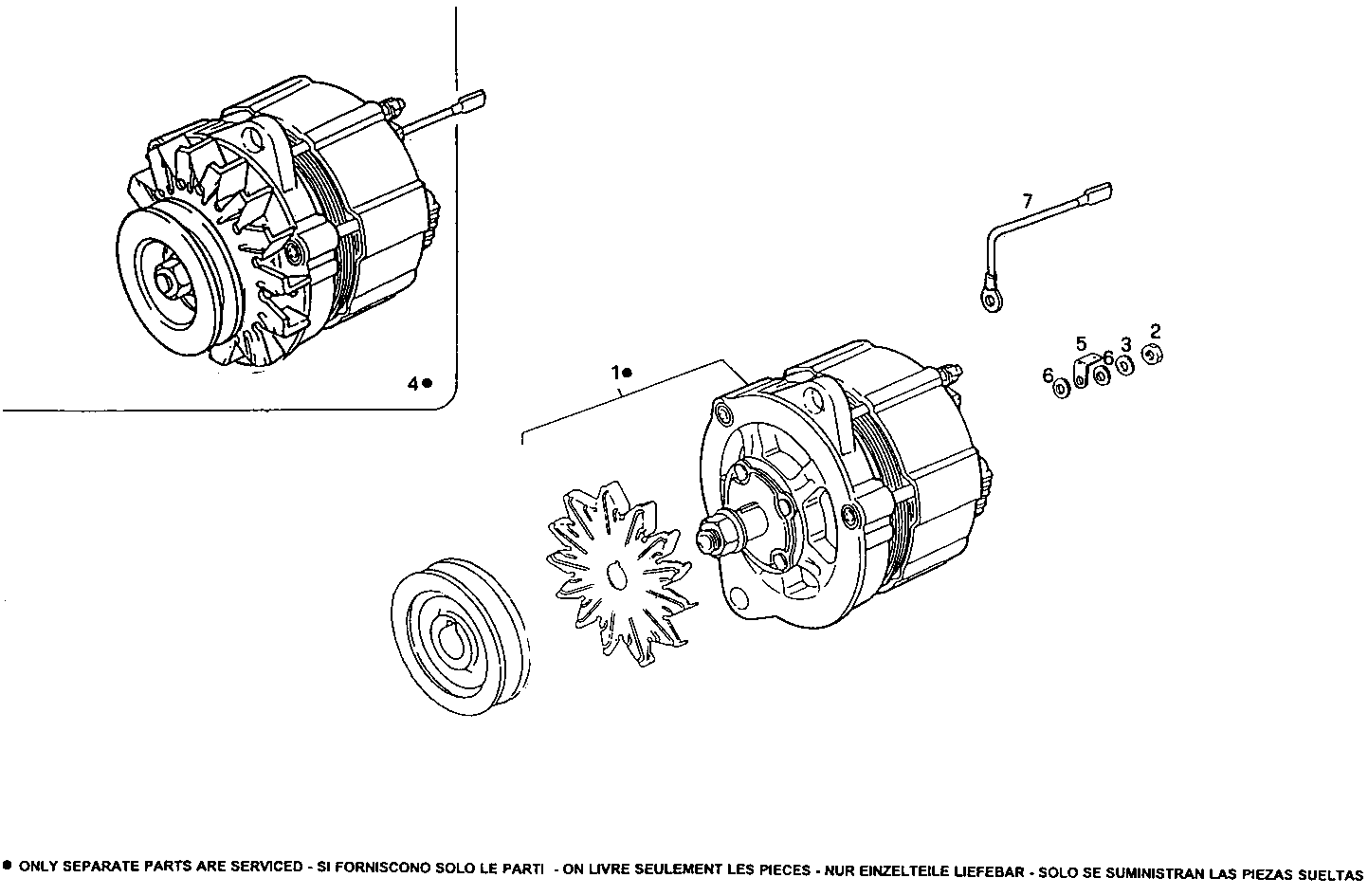

GENERATOR
Assembly ID: 4000.010-01
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4757193 | ALTERNATOR | 1 | ||
| 2 | 10794011 | HEXAGON NUT | 1 | ||
| 3 | 14496201 | WASHER | 2 | ||
| 4 | 8113541 | ALTERNATOR | 1 | ||
| 5 | 12277944 | CONNECTION | 1 | ||
| 6 | 10615270 | TOOTHED WASHER | 1 | ||
| 7 | 8105654 | WIRE/CABLE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8281SRM44.10A60E | GE8281SRM44 | view |
| GE8281SRM44.10A61E | GE8281SRM44 | view |
| GE8281SRM44.10A62E | GE8281SRM44 | view |
| GE8281SRM44.10A67E | GE8281SRM44 | view |
| GE8281SRM44.30A60E | GE8281SRM44 | view |
| 8281SRM44.10 | 8281SRM44 | view |
| 8281SRM44.30 | 8281SRM44 | view |
| 8281SRM70.10 | 8281SRM70 | view |
| 8281SRM70.11 | 8281SRM70 | view |
| 8281SRM70.30 | 8281SRM70 | view |
| 8281SRM70.40 | 8281SRM70 | view |
| 8281SM32.10 | 8281SM32 | view |
